TP-LINK (TL-SG1005P-PD) 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out, Long-Range PoE+

2 sold in last 8 hours
My Store
SWI-5TPSMAPOEPL-GB-43775075
Out of stock
£238.63 £128.99
TP-LINK (TL-SG1005P-PD) 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out, Long-Range PoE+ 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out Ports: 5x 10 Mbps/100 Mbps/1 Gbps RJ45 ports 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W /...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

TP-LINK (TL-SG1005P-PD) 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out, Long-Range PoE+

5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out

  • Ports: 5x 10 Mbps/100 Mbps/1 Gbps RJ45 ports
  • 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
  • Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
  • PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

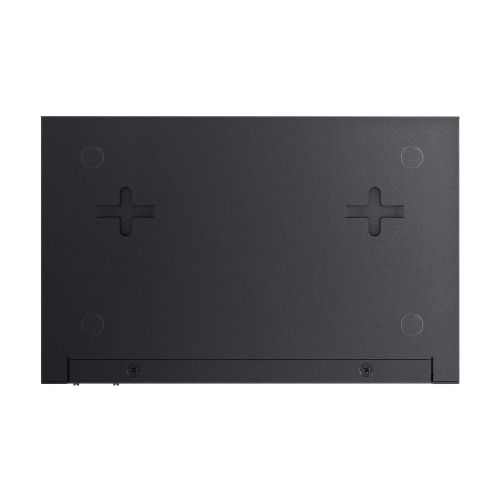

  • Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
  • Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
  • Plug and Play: No configuration and installation required.
  • Power Supply: The product only supports PoE power supply, not AC or DC power supply.




*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.




Specifications:
- Switching Capacity : 10 Gbps
- Transfer Method : Store-And-Forward
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 158 x 101 x 25 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4 PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE Power Budget: 66 W when powered by 802.3bt Type 4 (90 W) 47 W when powered by 802.3bt Type 3 (60 W) 21 W when powered by 802.3at (30 W) 9 W when powered by 802.3af (15.4 W)
- Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p
- Management : Unmanaged
- #Hide#POE : Yes
- Mac Address Table : 2K
- Power Supply : Only Powered by PoE Device Max Power Consumption: 2.68 W (90W PoE In, with no PD connected) 68.59 W (90W PoE In, with 66 W PD connected)
- Package Type : Retail
- Package Contents : TL-SG1005P-PD Installation Guide
- Rackmountable : No
- Number of Ports : 5
- Interface(s) : 5 x 10/100/1000Mbps RJ45 1 x 10/100/1000 Mbps RJ45 PoE In 4 x 10/100/1000 Mbps RJ45 PoE Out AUTO Negotiation AUTO MDI/MDIX
- Packet Forwarding Rate : 7.44 Mpps
- Additional Features : Extend Mode Button (Ports 1–2, Up to 250m PoE power and data transmission) PoE Auto Recovery (Ports 1-4) Mac Address Auto-Learning and Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Fanless
- Environment : Operating Temperature: 30–70°C Storage Temperature: -40–70°C Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 0.4600 kg
- Managed : No
