Description

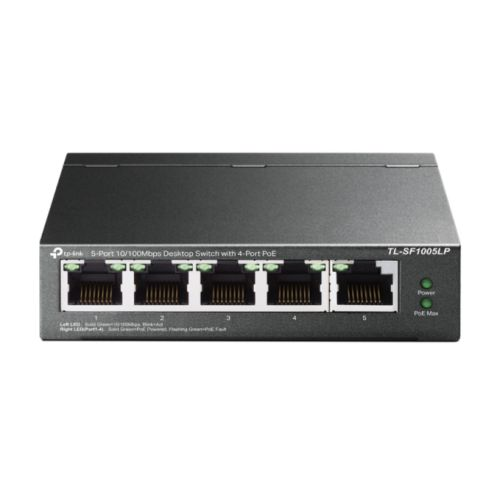

TP-LINK (TL-SF1005LP) 5-Port 10/100 Unmanaged Desktop Switch, 4-Port PoE, Intelligent Power, Steel Case

5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE

  • 5x 10/100 Mbps RJ45 ports
  • 4x PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 41 W for all PoE ports*
  • Plug and play with no configuration required



Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance

- Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.


Priority Video - Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.




*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Specifications:
- Switching Capacity : 1 Gbps
- Transfer Method : Store-And-Forward
- Warranty : Limited Lifetime
- Dimensions : 100 x 98 x 25 mm
- Max RJ45 Transfer Rate : 10/100 Mbps
- PoE Ports (RJ45) : Standard: 802.3 af compliant PoE Ports: Ports 1–4 Power Supply: 41 W
- #Hide#POE : Yes
- Security : Physical Security Lock
- Mac Address Table : 2K
- Power Supply : External Power Adapter (Output: 53.5 V DC / 0.81 A) Consumption: 1.9 W (220 V / 50 Hz, no PD connected) 47 W (220 V / 50 Hz, with 41 W PD connected)
- Package Type : Retail

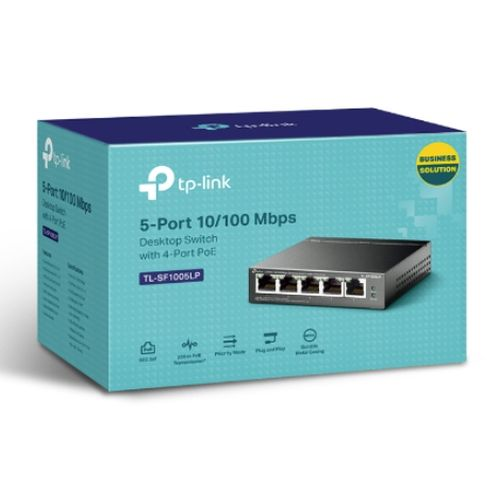

- Package Contents : TL-SF1005LP Power Adapter Installation Guide
- Rackmountable : No
- Number of Ports : 5
- Interface(s) : 5 X 10/100 Mbps RJ45 (1 - 4 support 802.3af PoE) AUTO Negotiation AUTO MDI/MDIX
- Packet Forwarding Rate : 0.744 Mpps
- Additional Features : Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
- Environment : Operating Temperature: 0–40C (32–104F) Storage Temperature: -40–70C (-40–158F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 0.7500 kg
- Jumbo Frame : 2 KB
- Managed : No
