Description

TP-LINK (SG5452XMPP) Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4x 10G Slots, Rackmountable

Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4x 10G Slots

  • 8x Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
  • 40x Gigabit 802.3af/at PoE+ ports (Max 30W per port)
  • 4x 10 Gbps SFP+ slots
  • Up to 770W total PoE budget*
  • Fast PoE and Perpetual PoE
  • Physical stacking up to 4 units for built-in redundancy and performance
  • L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
  • Security strategies: ACL, Port Security, DoS Defend, 802.1X
  • ERPS supports rapid protection and recovery in a ring topology
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI, SNMP, and RMON




What This Product Does
Omada SG5452XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 770W PoE budget,* 48x gigabit RJ45 ports (8x PoE++, 40x PoE+), 4x 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452XMPP offers a reliable networking solution for SMEs, and ISPs.



IEEE 802.3af/at/bt-compliant Power over Ethernet
8x IEEE 802.3af/at/bt-compliant and 40x IEEE 802.3af/at-compliant PoE ports supply up to 770W total power to 802.3af, 802.3at, and 802.3bt devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.



High-speed Connectivity and Powerful Stacking
48x gigabit RJ45 ports and 4x 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.



Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.



Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.



Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.



Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).*** The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG5452XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.



*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors. The maximum power output of every single PoE++ port is 90W.

**Only one 10G RJ45 SFP+ module can be inserted at a time.

***These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.


Specifications:
- VLAN : Max 4K VLAN Group (802.1q VLAN) 802.1Q Tagged VLAN MAC VLAN Entries: 60 Multicast VLAN Management VLAN VLAN VPN (QinQ): Max 256 entries GVRP Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries Voice VLAN Private VLAN
- #Hide#POE : Yes
- Security : Port Isolation CPU-Defend ARP Inspection (Dynamic ARP Inspection) DoS Defend IP-MAC-Port Binding IPv6-MAC DHCP Filter Static/Dynamic Port Security Broadcast/Multicast/Unknown-unicast Storm Control 802.1X AAA (including TACACS+) Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv2 IP/Port/MAC-based access control
- Power Supply : 100-240 V~ 50/60 Hz Max. Power Consumption: 893.6 W (220V/50Hz) ( with 770 W PD connected @ 25 °C) 942.7 W (110V/60Hz) ( with 770 W PD connected @ 25 °C)
- Package Contents : SG5452XMPP Switch Power Cord Console Cable Rackmount Kits Rubber Feet Quick Installation Guide
- Number of Ports : 48
- Layer Features : L3 Features: IPv4: Max 128, IPv6: Max 128 Static Routing Host Route Table: Max 1,024 entries RIP: Version v1/v2, Max 1,796 OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450 Static ARP: 512 static entries Dynamic ARP: 2,000 dynamic entries Proxy ARP DHCP Server DHCP Relay

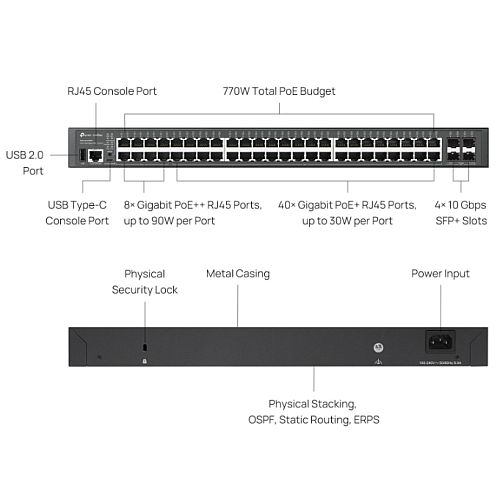

- Interface(s) : 48 x 10/100/1000 Mbps RJ45 Ports (8x PoE++, 40× PoE+) 4 x 1/10 Gbps SFP+ Slots 1 x USB 2.0 Port 1 x RJ45 Console Port 1 x USB Type-C Console Port
- Packet Forwarding Rate : 130.94 Mpps
- Jumbo Frame : 9 KB
- Switching Capacity : 176 Gbps per Unit
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 440 x 330 x 44 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Standard: 802.3af/at/bt compliant PoE++ Ports: Ports 1~8 (up to 90W per Port) PoE+ Ports: Ports 9~48 (up to 30W per Port) Power Budget: 770W Fast PoE Perpetual PoE
- Management : Omada App Centralized Management Cloud Access Zero-Touch Provisioning Management Features: Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP Auto Install Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics Password Recovery SNTP System Log IEEE 802.3az Energy Efficient Ethernet (EEE)
- #Hide#Max SFP Transfer Rate : 10G SFP
- Mac Address Table : 16 K
- Quality of Service : Class of Service Bandwidth Control Voice VLAN User-Defined OUI Smoother Performance Action for Flows
- . : L2 and L2+ Features: Link Aggregation Spanning Tree Protocol Port-based and VLAN-based Loopback Detection 802.3x Flow Control ERPS Mirroring RSPAN MAC Address Table Multicast
- Package Type : Retail
- Rackmountable : Yes
- Additional Features : Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ISP Features: 802.3ah Ethernet Link OAM L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) DDM sFlow
- Environment : Operating Temperature: -5–40°C Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 6.8700 kg
- Managed : Yes
