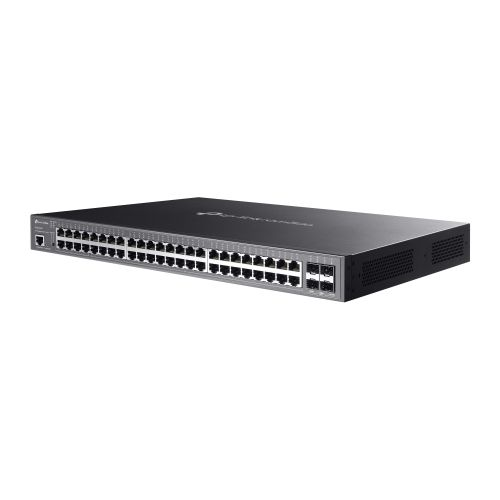

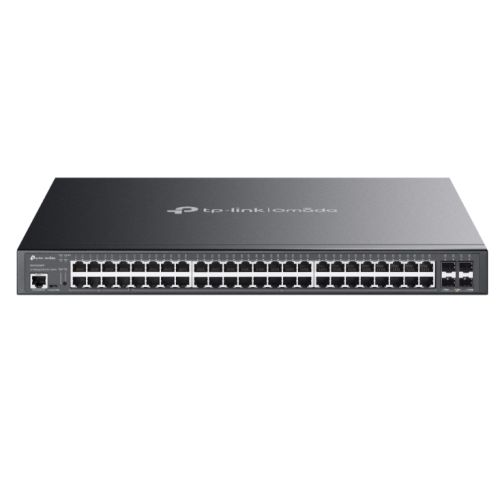

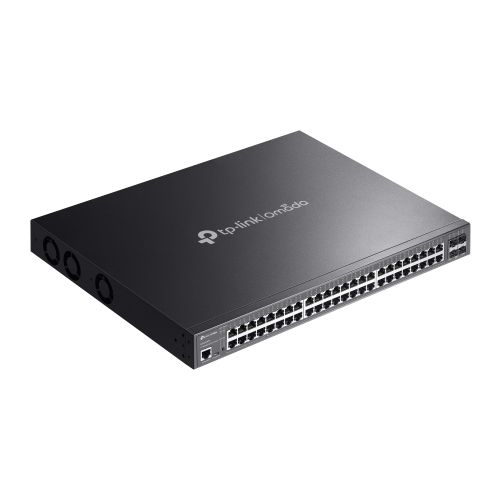

TP-LINK (SG3452XMPP) Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++, Rackmountable

TP-LINK (SG3452XMPP) Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++, Rackmountable

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

• 4x 10 Gbps SFP+ slots
• 8x Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
• 40x Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
• 750 W total PoE budget
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology

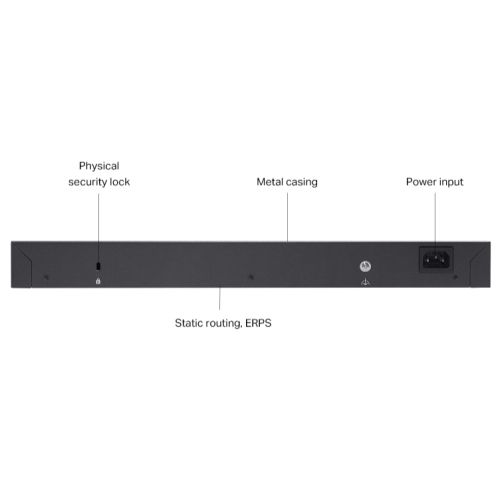

• Durable metal casing and rack-mountable design

Specifications:
- VLAN : VLAN Group: Max 4K VLAN Groups 802.1q Tagged VLAN MAC VLAN: 30 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN: VLAN Mapping, VLAN Replace Voice VLAN
- #Hide#POE : Yes
- Security : IP-MAC-Port Binding IPv6-MAC-Port Binding DoS Defend DHCP Filter Static/Dynamic Port Security: Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode 802.1X AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control
- Power Supply : 100-240 V AC~50/60 Hz Max Power Consumption: 913.4 W (110V/60Hz) ( with 750 W PD connected)
- Package Contents : SG3452XMPP Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
- Number of Ports : 48
- Layer Features : L2 and L2+ Features 128 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 48 IPv4/IPv6 Static Routes Static ARP: 128 static entries 512 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay DHCP L2 Relay Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring

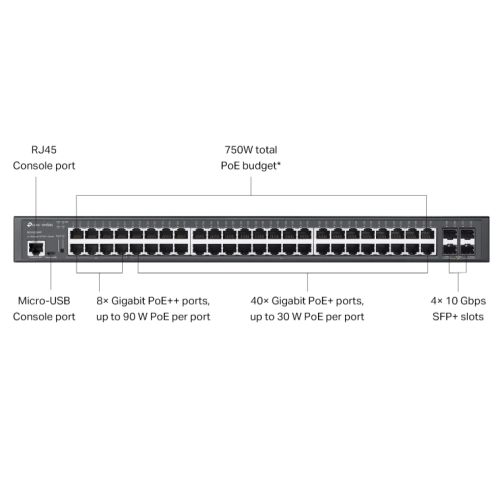

- Interface(s) : 48 x 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+) 4 x 10G SFP+ Slots 1 x RJ45 Console Port 1 x Micro-USB Console Port
- Packet Forwarding Rate : 130.9 Mpps
- Access Control : Time-based ACL MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS Combined ACL Packet Content ACL IPv6 ACL Policy: Mirroring, Redirect, Rate Limit, QoS Remark ACL applies to Port/VLAN
- Jumbo Frame : 9 KB
- Switching Capacity : 176 Gbps
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 440 x 330 x 44 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Standard: 802.3at/af/bt compliant PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port) PoE+ Ports: Ports 9~48 (up to 30 W PoE Output per Port) Power Budget: 750 W
- Management : Omada App Centralized Management Cloud Access Zero-Touch Provisioning Management Features: Web-based GUI CLI through console port, telnet SNMPv1/v2c/v3 SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
- #Hide#Max SFP Transfer Rate : 10G SFP
- Mac Address Table : 16 K
- Quality of Service : 8 priority queues 802.1p CoS/DSCP priority Bandwidth Control: Port/Flow-based Rating Limiting Smoother Performance Action for Flows: QoS remark (802.1P Remark, DSCP Remark) Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
- . : L2 Multicast Supports 1000 (IPv4, IPv6) IGMP groups IGMP Snooping IGMP Authentication Multicast VLAN Registration (MVR) MLD Snooping Multicast Filtering: 256 profiles and 16 entries per profile
- Package Type : Retail
- Rackmountable : Yes
- Additional Features : Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ISP Features: L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) PPPoE ID Insertion ERPS 802.3ah Ethernet Link OAM DDM sFlow
- Environment : Operating Temperature: 0–40°C (32–104°F) Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 6.9000 kg
- Managed : Yes
