TP-LINK (SG2452LP) Omada 52-Port Gigabit Smart Switch w/ 32-Port PoE+, Centralized Management, Rackmountable

TP-LINK (SG2452LP) Omada 52-Port Gigabit Smart Switch w/ 32-Port PoE+, Centralized Management, Rackmountable

Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

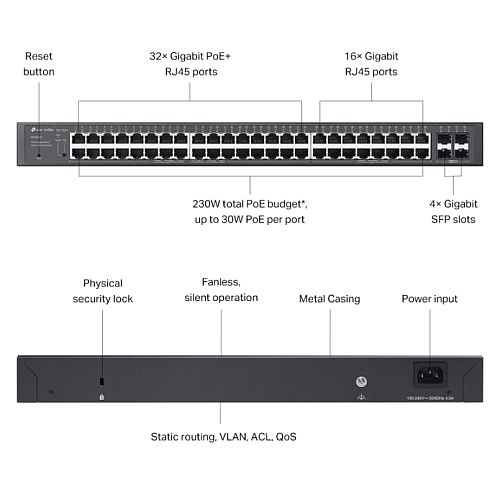

• 32x Gigabit 802.3af/at PoE+ ports
• 16x Gigabit non-PoE RJ45 ports and 4x Gigabit SFP slots
• 230 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Fanless design for quiet operation
• Durable metal casing and rackmountable design



Specifications:
- VLAN : VLAN Group: Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN: 12 Entries Protocol VLAN GVRP Voice VLAN
- #Hide#POE : Yes
- Security : IP-MAC-Port Binding AAA 802.1X IP/IPv6-MAC Binding IP Source Guard IPv6 Source Guard DoS Defend Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control
- Power Supply : 100-240 V AC~50/60 Hz
- Package Contents : SG2452LP Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
- Number of Ports : 52
- Layer Features : L2 and L2+: 16 IP Interfaces Static Routing DHCP Server DHCP Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring DLDP 802.1ab LLDP/ LLDP-MED L2 Multicast: 511 IPv4, IPv6 shared multicast groups IGMP Snooping MVR Multicast Filtering Limited IP Multicast (256 profiles and 16 entries per profile)
- Interface(s) : 32 x GB PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 16 x GB non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 x GB SFP Slots
- Packet Forwarding Rate : 77.37 Mpps
- Access Control : Support up to 230 entries Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation: Permit/Deny Policy Action ACL Rules Binding
- Jumbo Frame : 9 KB
- Switching Capacity : 104 Gbps
- Warranty : Limited Lifetime
- Dimensions : 440 x 330 x 44 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Standard: 802.3at/af compliant PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port) PoE Power Budget: 230 W
- Management : Omada App, Centralized Management & Cloud Access : Requires Omada Hardware, Cloud-Based or Software Controller Zero-Touch Provisioning : Requires Omada Cloud-Based Controller
- #Hide#Max SFP Transfer Rate : GB SFP
- Mac Address Table : 16 K
- Quality of Service : 802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control: Port/Flow-based Rating Limit Smoother Performance Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
- . : Management Features : Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log
- Package Type : Retail
- Rackmountable : Yes
- Additional Features : Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule
- Environment : Operating Temperature:0°C to 40 °C Storage Temperature: -40 °C to 70 °C Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 6.4700 kg
- Managed : Smart
