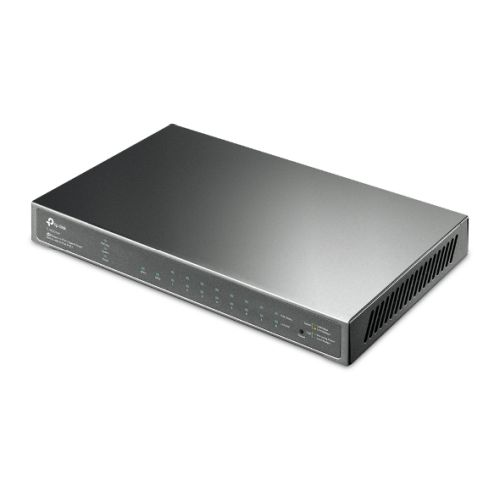

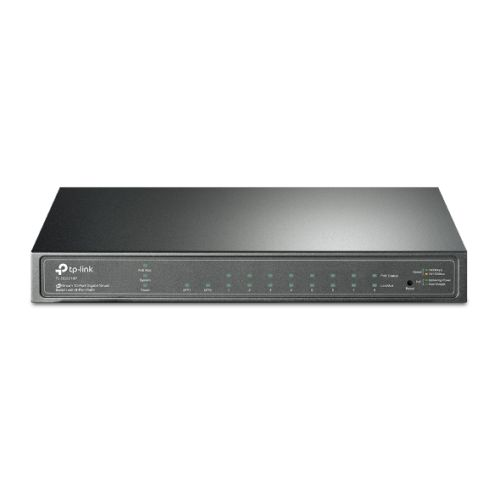

TP-LINK (SG2210P) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 SFP Ports, Desktop/Wall Mount

TP-LINK (SG2210P) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 SFP Ports, Desktop/Wall Mount

JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

• 61 W PoE Budget: 8x 802.3af/at-compliant PoE+ ports with a total power supply of 61 W*.
• Full Gigabit Ports: 8x gigabit PoE+ ports and 2x gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.



Specifications:
- Transfer Method : Store and Forward
- VLAN : VLAN Group 802.1Q tag VLAN MAC VLAN: 12 Entries Protocol VLAN GVRP Voice VLAN
- #Hide#POE : Yes
- Security : AAA 802.1X IP/IPv6-MAC Binding IP Source Guard IPv6 Source Guard DoS Defend Static/Dynamic/Permanent Port Security Broadcast/Multicast/Unicast Storm Control Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control
- Power Supply : 12 VDC/1 A External Adapter or Power from PoE Source
- Package Contents : TL-SG2210P Power Adapter Installation Guide Rubber Feet
- Number of Ports : 10
- Layer Features : L2+ Features: 16 IP Interfaces Static Routing DHCP Server DHCP Relay DHCP L2 Relay L2 Features: Link Aggregation Spanning Tree Protocol Loopback Detection L2 Multicast: 511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering
- Bandwidth : 20 Gbps

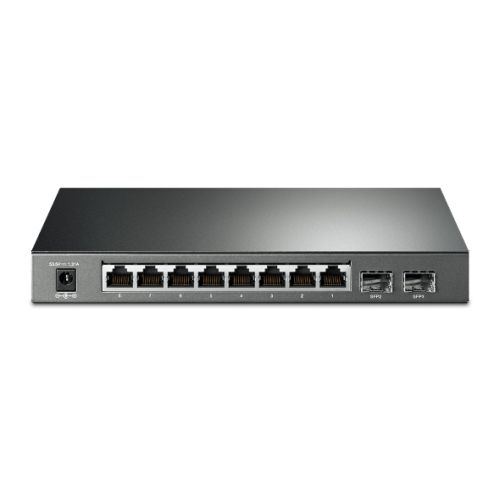

- Interface(s) : 8 x 10/100/1000Mbps RJ45 2 x Gigabit SFP
- Packet Forwarding Rate : 14.88 Mpps
- Access Control : Support up to 230 entries Time-Range Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation Policy Action ACL Rules Binding Actions for flows
- Jumbo Frame : 9 KB
- Switching Capacity : 16 Gbps
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 209 x 126 x 26 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : 8, up to 30 W
- Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
- Management : Omada App Centralized Management (OC300/OC200/Omada Software Controller) Cloud Access (OC300/OC200/Omada Software Controller) Zero-Touch Provisioning Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration
- #Hide#Max SFP Transfer Rate : GB SFP
- Mac Address Table : 8K
- Quality of Service : 802.1p CoS/DSCP priority 8 priority queues Queue Weight Config Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin)
- . : CPU Monitoring Cable Diagnostics EEE SNTP System Log
- Package Type : Retail
- Rackmountable : No
- Additional Features : Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule
- Environment : Operating Temperature: 0C~40C (32F~104F); Storage Temperature: -40C~70C (-40F~158F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
- Package Weight : 1.3100 kg
- Managed : Smart
