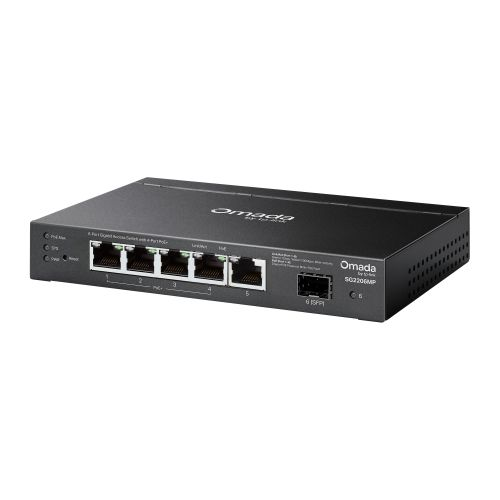

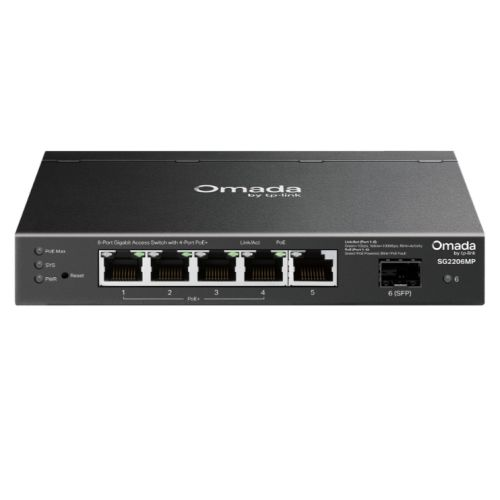

TP-LINK (SG2206MP) Omada Access 6-Port Gigabit Switch with 4-Port PoE+, 5x GB RJ45, 1x GB SFP, Centralized Management, Metal Casing

TP-LINK (SG2206MP) Omada Access 6-Port Gigabit Switch with 4-Port PoE+, 5x GB RJ45, 1x GB SFP, Centralized Management, Metal Casing

Omada Access 6-Port Gigabit Switch with 4-Port PoE+

• 5x Gigabit RJ45 ports (4× PoE+) and 1x Gigabit SFP slot
• 63W total PoE budget with up to 30W for each PoE+ port
• Centralized cloud management via the web or the Omada app
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Durable metal casing and desktop/wall mounting design

Specifications:
- VLAN : VLAN Group 802.1Q tag VLAN MAC VLAN: 16 Entries Protocol VLAN GVRP Voice VLAN
- #Hide#POE : Yes
- Security : IP-MAC-Port Binding AAA 802.1X IP/IPv6-MAC Binding IP Source Guard IPv6 Source Guard DoS Defend DHCP Filter Static/Dynamic/Permanent Port Security Broadcast/Multicast/Unicast Storm Control Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control

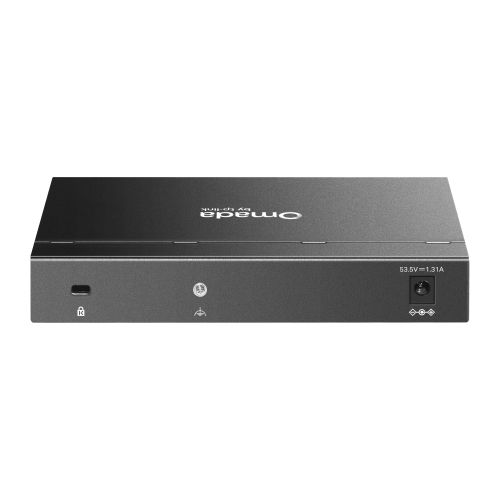

- Power Supply : 53.5 VDC / 1.31 A
- Package Contents : SG2206MP Power Adapter Power Cord Rackmount Kit Rubber Feet Installation Guide
- Number of Ports : 6
- Layer Features : L2 and L2+ Features: 16 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 32 IPv4/IPv6 Static Routes DHCP Server DHCP Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED Spanning Tree
- Interface(s) : 4 x10/100/1000 Mbps PoE+ RJ45 1 x 10/100/1000 Mbps RJ45 1 x Gigabit SFP
- Packet Forwarding Rate : 8.93 Mpps
- Access Control : Support up to 230 entries Time-Range Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation: Permit/Deny Policy Action ACL Rules Binding
- Jumbo Frame : 9 KB
- Switching Capacity : 12 Gbps
- Warranty : Limited Lifetime
- Dimensions : 158 x 100.7 x 25.4 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Standard: 802.3at/af compliant PoE+ Ports: 4 Ports PoE Power Budget: 63 W* Fast PoE Perpetual PoE
- Management : Omada App Centralized Management Cloud Access Zero-Touch Provisioning Management Features: Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics IEEE 802.1az Energy Efficient Ethernet SNTP System Log DDM OAM
- #Hide#Max SFP Transfer Rate : GB SFP
- Mac Address Table : 8K
- Quality of Service : 802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode Queue Weight Config Bandwidth Control Storm Control
- . : L2 Multicast: 511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering Limited IP Multicast (256 profiles and 16 entries per profile)
- Package Type : Retail
- Rackmountable : No
- Additional Features : Durable metal casing Desktop/wall mounting design Physical security lock
- Environment : Operating Temperature: -5°C ~40°C Storage Temperature: -40°C ~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
- Package Weight : 1.0200 kg
- Managed : Smart
