TP-LINK (SG2005P-PD) Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out, Outdoor Weatherproof, Centralized Management

2 sold in last 8 hours
My Store
SWI-5TPOMASMAPOEPL-GB-43776117
Out of stock
£366.28 £197.99
TP-LINK (SG2005P-PD) Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out, Outdoor Weatherproof, Centralized Management Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

TP-LINK (SG2005P-PD) Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out, Outdoor Weatherproof, Centralized Management

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

  • Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*
  • 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
  • Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.
  • Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
  • Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.





PoE-Powered PoE Switch for Simplified Outdoor Network Deployment
Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
  • Powered by PoE++/PoE+/PoE
  • Max 64 W PoE Budget with 4 PoE+ Output Ports**
  • Double the PoE Distance up to 200 m without Losing Gigabit Speeds*
  • Full Gigabit Ports
  • Easy Installation with Pole-Mounting / Wall-Mounting
  • Waterproof and UV-Resistant Casing
  • Centralized and Multi-Site Management
  • Static Routing

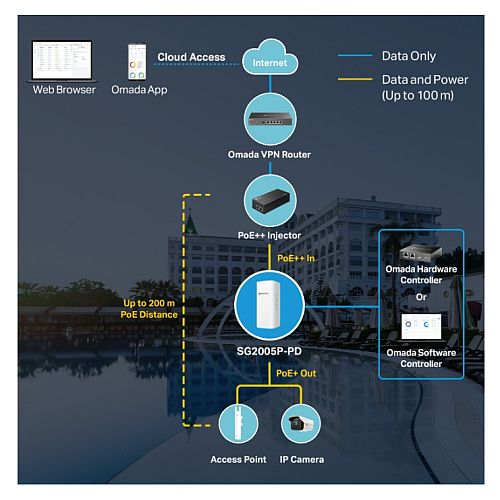

Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds
Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.*

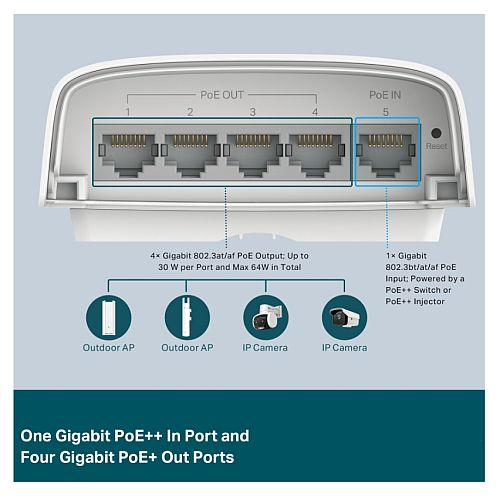

One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports
Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.
  • Waterproof Enclosure
  • No Ingress of Dust
  • Operation Temperature of -40 to 60 °C
  • UV-Resistant Casing
  • 4KV Lightning Protection

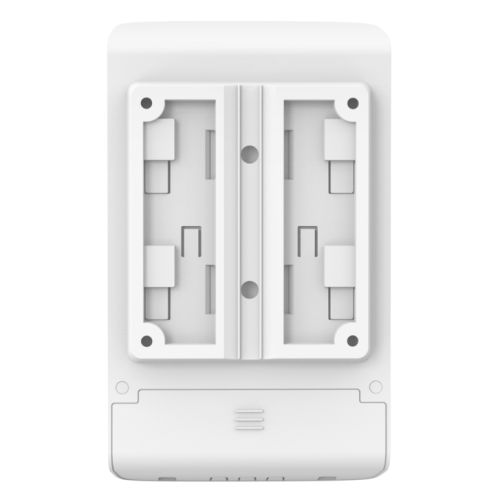

Easy Installation to Flexibly Fit Your Needs
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.

Value-Added Features Foster Touchpoint Experiences
  • Static Routing - Helps route internal traffic for more efficient use of network resources.
  • Access Control List (ACL) - ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.
  • QoS for Lag-Free Experiences - Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.
  • VLAN for Security and Flexible Management - VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.





Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

*The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.

**PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

***Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Note that TL-SG2008P v2 doesn't support Omada Cloud-Based Controller.




Specifications:
- VLAN : VLAN Group - Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN: 12 Entries Protocol VLAN GVRP Voice VLAN
- #Hide#POE : Yes
- Security : AAA 802.1X IP/IPv6-MAC Binding IP Source Guard IPv6 Source Guard DoS Defend Static/Dynamic/Permanent Port Security Broadcast/Multicast/Unicast Storm Control Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 CLI management with SSHv1/SSHv2 IP/Port/MAC-based access control
- Power Supply : Obtain Power from 802.3af/at/bt PoE Source Max Power Consumption: 71.5 W (when powered by 802.3bt Type 4 (90 W))
- Package Contents : SG2005P-PD Mounting Kits Installation Guide
- Number of Ports : 5
- Layer Features : L2 and L2+: 32 IP Interfaces Static Routing DHCP Server DHCP Relay & DHCP L2 Relay Static & Proxy ARP Gratuitous ARP Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED

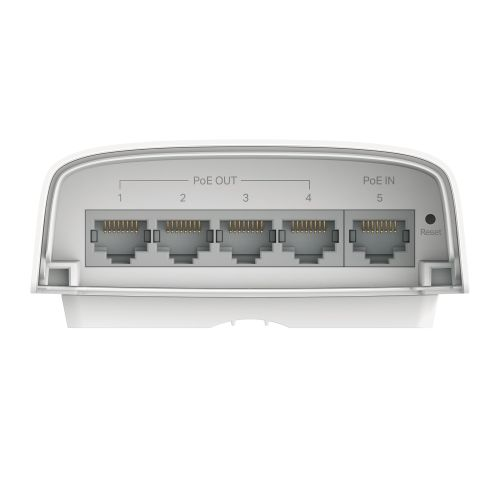

- Interface(s) : 1 x Gigabit RJ45 PoE In (compliance with 802.3af/at/bt) 4 x Gigabit RJ45 PoE Out (compliance with 802.3af/at PoE)
- Packet Forwarding Rate : 7.44 Mpps
- Access Control : Support up to 230 entries Time-Range Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation Policy Action ACL Rules Binding Actions for flows
- Jumbo Frame : 9 KB
- Switching Capacity : 10 Gbps
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 100 x 38.5 x 170 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : PoE In Port: Port 5, Compliance with 802.3af/at/bt PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE PoE Power Budget: - 64 W when powered by 802.3bt Type 4 (90 W) - 44 W when powered by 802.3bt Type 3 (60 W) - 19 W when powered by 802.3at - 6 W when powered by 802.3af
- Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
- Management : Omada App, Centralized Management & Cloud Access: Requires Omada Hardware, Cloud-Based or Software Controller Zero-Touch Provisioning: Requires Omada Cloud-Based Controller Management Features: CLI through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP
- Mac Address Table : 8k
- Quality of Service : 802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode Queue Weight Config Bandwidth Control Smoother Performance Storm Control
- . : L2 Multicast: 511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering MLD Snooping Limited IP Multicast (256 profiles & 16 entries per profile)
- Package Type : Retail
- Rackmountable : No
- Additional Features : Fanless Wall or Pole Mount Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule
- Environment : Operating Temperature:0°C to 40 °C Storage Temperature: -40 °C to 70 °C Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 0.4900 kg
- Managed : Smart
