TP-LINK (InSight S485PI) VIGI 8MP Outdoor IR Panoramic Turret Network Camera, IP67, PoE, 180° Panorama, AI Detection/Classification, Red-Blue Warning Lights

2 sold in last 8 hours
My Store
WCA-INSIGHTTPS485PI-43776333
Out of stock
£1,422.63 £768.99
TP-LINK (InSight S485PI) VIGI 8MP Outdoor IR Panoramic Turret Network Camera, IP67, PoE, 180° Panorama, AI Detection/Classification, Red-Blue Warning Lights VIGI 8MP IR Panoramic Turret Network Camera 180° Panorama View with Huge Vision 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m) Red-Blue Warning Lights with...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

TP-LINK (InSight S485PI) VIGI 8MP Outdoor IR Panoramic Turret Network Camera, IP67, PoE, 180° Panorama, AI Detection/Classification, Red-Blue Warning Lights

VIGI 8MP IR Panoramic Turret Network Camera

  • 180° Panorama View with Huge Vision
  • 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)
  • Red-Blue Warning Lights with Stronger Deterrence
  • People & Vehicle Analytics
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Audio and Alarm Interface Available
  • IP67 Weatherproof and IK10 Vandal Proof
  • H.265+ Compression Technology





Cut Project Costs with 180° View and 4K (8MP) Clarity
General cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area.
Powerful, Efficient Monitoring with Active Defense
Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.

Red-Blue Warning Lights with Stronger Deterrence
Red-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms.

Flexible Audio & Alarm Integration
The Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices.

Instant Event Notifications
When the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone.

VIGI AI Detection Technology
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.

Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.








Specifications:
- Power Supply : 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug PoE: 802.3at, Class 4, Max. 21W
- Video Streaming : Main Stream Sub-Stream
- Package Contents : VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
- Wireless Features : -
- Alarm & Event Management : Smart Event Detection: Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change Basic Event: Motion Detection (Enhanced with Human & Vehicle Classification) Video Tampering Detection Exception (Illegal Login) Alarm Input Device
- Pan/Tilt/Rotation : Pan: 0° to 360° Tilt: 0° to 75° Rotation: 0° to 360°
- Viewing Angle : Horizontal FOV: 180° Vertical FOV: 86° Diagonal FOV: 180°
- Image Settings : Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software
- IR Working Distance : IR LED Quantity: 4 Range: 20m Wavelength: 850nm Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
- Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Audio Features : Two-Way Audio Audio Input: Built-in Microphone, Audio In Interface Audio Output: Built-in Speaker, Audio Out Interface Audio Compression: Yes Audio Sampling Rate: 8 KHz Environment Noise Filtering: Yes Audio Bit Rate: 64 Kbps(G.711 alaw)
- Suitable for Outdoor : Yes
- Network : Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP ONVIF: Yes API: Open Network Video Interface (Profile S/T/G) Simultaneous Live View: 3 Main Streams & 3 Sub-Streams Cloud: Yes

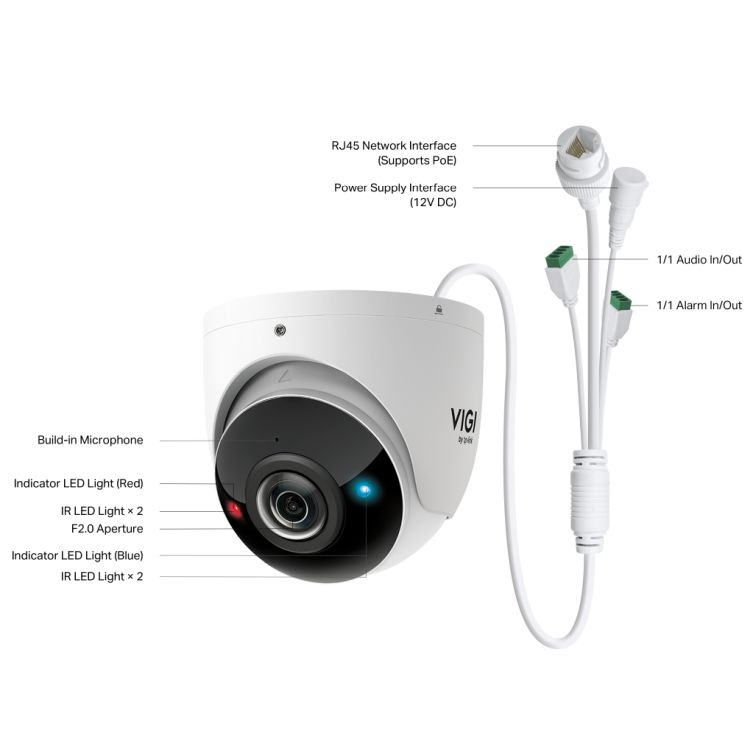

- Interface(s) : 1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE DC Power Port Memory Card Slot (MicroSD Card up to 512GB)
- Frame Rate : Main Stream: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Sub-Stream: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
- Wired/Wireless : Wired
- Video Compression : Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
- Day/Night Mechanism : IR Cut Filter Day/Night Switch: Unified/ Scheduled/ Auto
- Management : VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
- . : Linkage Method: Memory Card Video Recording Upload to FTP Server Alarm Output Device Push Notifications Send to Alarm Server Active Defence-Sound & Light Alarm Email Alarm
- Minimum Illumination : 0.005 Lux; 0 Lux with IR Light
- Image Sensor : 1/2.7” Progressive Scan CMOS

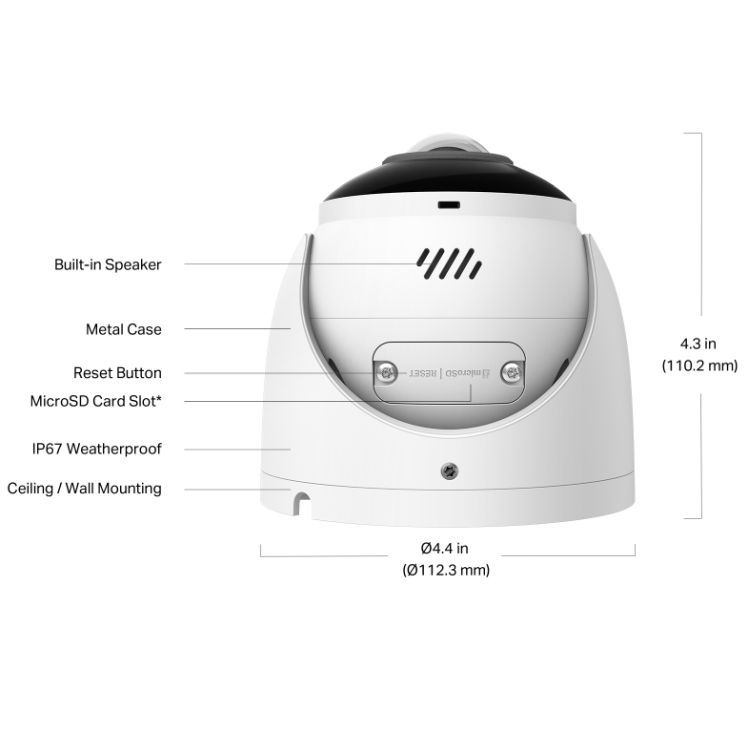

- Weight/Dimensions : 0.76 kg (LxWxH) 112.3 x 112.3 x 110.2 mm
- Additional Features : 180° Panorama View with Huge Vision Red-Blue Warning Lights with Stronger Deterrence IK10 Vandal Proof
- Environment : IP67 Waterproof Operating Temperature: -30–60 °C Storage Temperature: -40–60 °C Operating Humidity: 95% or Less (Non-Condensing) Storage Humidity: 95% or Less (Non-Condensing)
- #Hide#Form Factor : Turret
- Lens : 1.65mm Fixed Focal Lens Lens Mount: M12 Aperture: F2.0 DORI Distance: Detect: 144.36 ft (44 m) Observe: 60.15 ft (18.33 m) Recognize: 28.87 ft (8.8 m) Identify: 14.44 ft (4.4 m)
- #Hide#Series : TP-LINK VIGI
- Package Weight : 1.0100 kg
- Resolution : Main Stream: 3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720 Sub-Stream: 848x480,704x576, 640x480, 640x360,352x288, 320x240
