TP-LINK (InSight S445ZI) VIGI 4MP IR Motorized Varifocal Turret Network Camera, 5x Zoom, IP67, PoE, AI Detection/Classification, Two-Way Audio, H.265+

TP-LINK (InSight S445ZI) VIGI 4MP IR Motorized Varifocal Turret Network Camera, 5x Zoom, IP67, PoE, AI Detection/Classification, Two-Way Audio, H.265+

VIGI 4MP IR Motorized Varifocal Turret Network Camera

• 5X Optical Zoom for Easy Installation and Monitoring
• 4MP Super-High Definition and IR Range Up to 60m (197ft)
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H.265+ Compression Technology

• True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
• Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
• 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
• White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.





Specifications:
- Alarm & Event Management : Smart Event Detection: Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change Basic Event: Motion Detection (Enhanced with Human & Vehicle Classification) Video Tampering Detection Exception (Illegal Login) Linkage Method: Memory Card Video Recording Message Push Audible Warning Email Alarm Upload Capture to FTP Alarm Out Device
- Pan/Tilt/Rotation : Pan: 0° to 360° Tilt: 0° to 77° Rotation: 0° to 360°
- Viewing Angle : Horizontal FOV: 29.6°-102.0° Vertical FOV: 16.8°-53.8° Diagonal FOV: 34.1°-122.8°
- Image Settings : Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software
- IR Working Distance : IR LED Quantity: 4 Range: 60m (197ft) Wavelength: 850nm
- Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Wireless Features : -
- Power Supply : 12V DC, Max.10.8 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max.12 W
- Video Streaming : Main Stream Sub-Stream
- Package Contents : VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
- Audio Features : Two-Way Audio Audio Input Audio Output Audio Compression Audio Sampling Rate: 8KHz Environment Noise Filtering Audio Bit Rate: 64 Kbps(G.711 alaw) Built-in Microphone records anything within a 15ft radius
- Suitable for Outdoor : Yes
- Network : Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP ONVIF: Yes API: Open Network Video Interface (Profile S/T/G) Simultaneous Live View: 3 Main Streams & 3 Sub-Streams Cloud: Yes

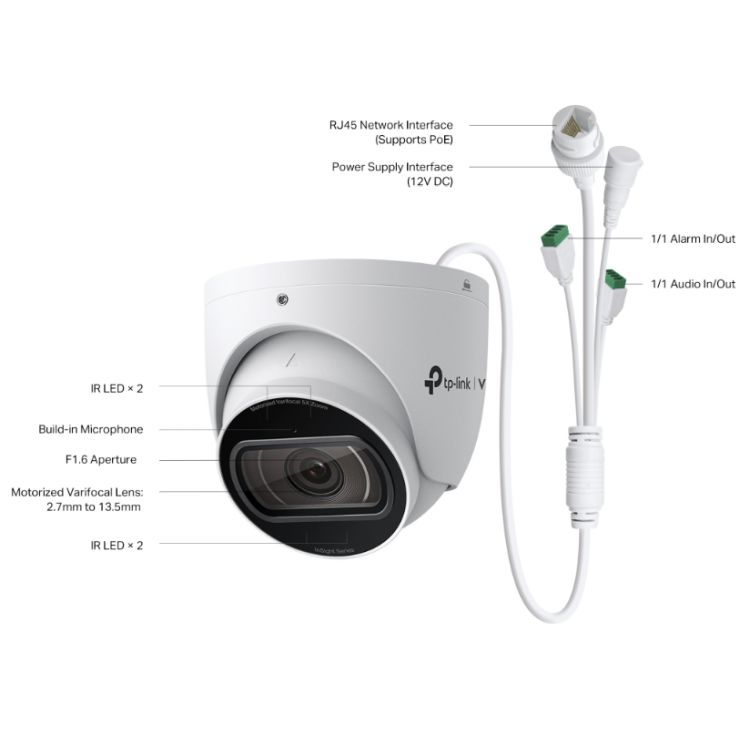

- Interface(s) : 1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE DC Power Port Memory Card Slot (MicroSD Card up to 512GB)
- Frame Rate : Main Stream: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Sub-Stream: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
- Wired/Wireless : Wired
- Video Compression : Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
- Warranty : 5 Years
- Day/Night Mechanism : IR Cut Filter Day/Night Switch: Unified/ Scheduled/ Auto
- Management : VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
- Minimum Illumination : 0.005 Lux; 0 Lux with IR Light
- Image Sensor : 1/2.9” Progressive Scan CMOS

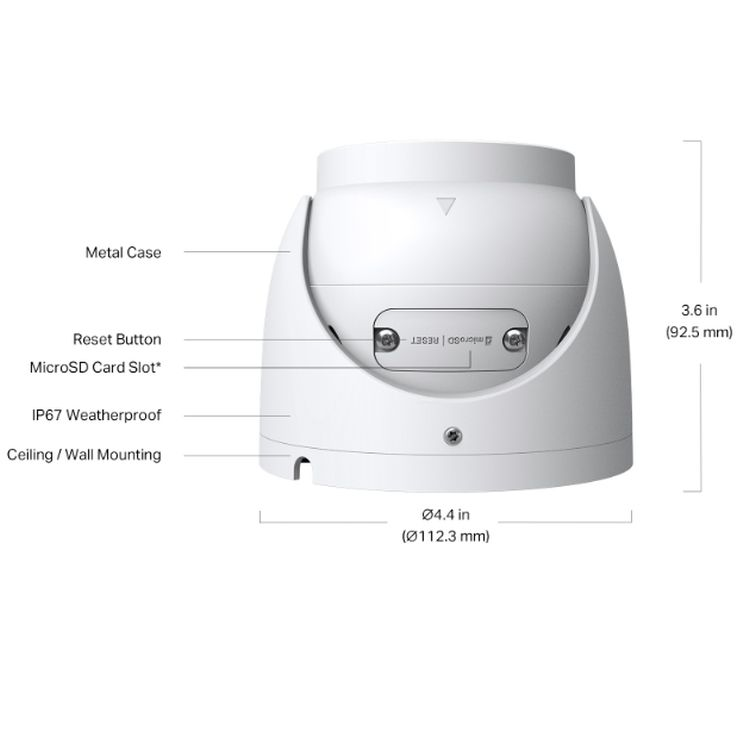

- Weight/Dimensions : 0.71 kg 112.3 (diameter) x 92.5 mm
- Additional Features : See Overview
- Environment : IP67 Waterproof Operating Temperature: -30–60 °C Storage Temperature: -40–60 °C Operating Humidity: 95% or Less (Non-Condensing) Storage Humidity: 95% or Less (Non-Condensing)
- #Hide#Form Factor : Turret
- Lens : Motorized Varifocal Lens Focal Length: 2.7-13.5 mm (5X Optical Zoom) Lens Mount: 14mm diameter Aperture: F1.6 DORI Distance: Detect: 66-207 m (217-579 ft) Observe: 28-86 m (92-282 ft) Recognize: 13-41 m (43-135 ft) Identify: 7-21 m (23-69 ft)
- #Hide#Series : TP-LINK VIGI
- Package Weight : 0.9400 kg
- Resolution : Main Stream: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
