TP-LINK (InSight S285 2.8MM) VIGI 8MP Outdoor Full-Colour Dome Network Camera w/ 2.8mm Lens, IP67, PoE, AI Detection/Classification, Two-Way Audio, H.265+

TP-LINK (InSight S285 2.8MM) VIGI 8MP Outdoor Full-Colour Dome Network Camera w/ 2.8mm Lens, IP67, PoE, AI Detection/Classification, Two-Way Audio, H.265+

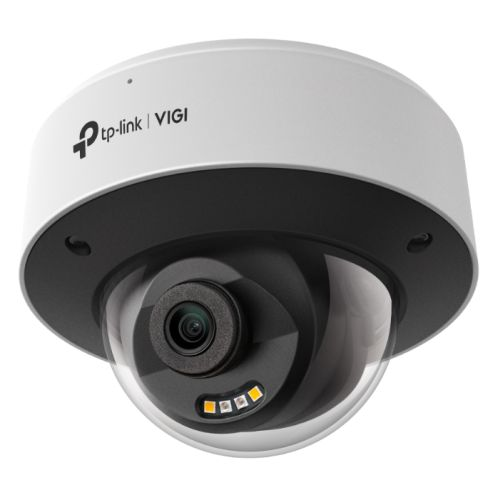

VIGI 8MP Full-Color Dome Network Camera

• 4K (8MP) Ultra HD and 24h Full-Color
• People & Vehicle Analytics
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof and IK10 Vandal-Proof
• H.265+ Compression Technology





VIGI Surveillance Solution



Specifications:
- Alarm & Event Management : Smart Event Detection: Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change Basic Event: Motion Detection (Enhanced with Human & Vehicle Classification) Camera Tampering Exception (Illegal Login) Alarm Linkage: Memory Card Video Recording Message Push Audible Warning White Light Flashing
- Pan/Tilt/Rotation : Pan: 0° to 346° Tilt: 0° to 75° Rotation: 0° to 355°
- Viewing Angle : Horizontal FOV: 110° Vertical FOV: 58.1° Diagonal FOV: 133.5°
- Image Settings : Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software

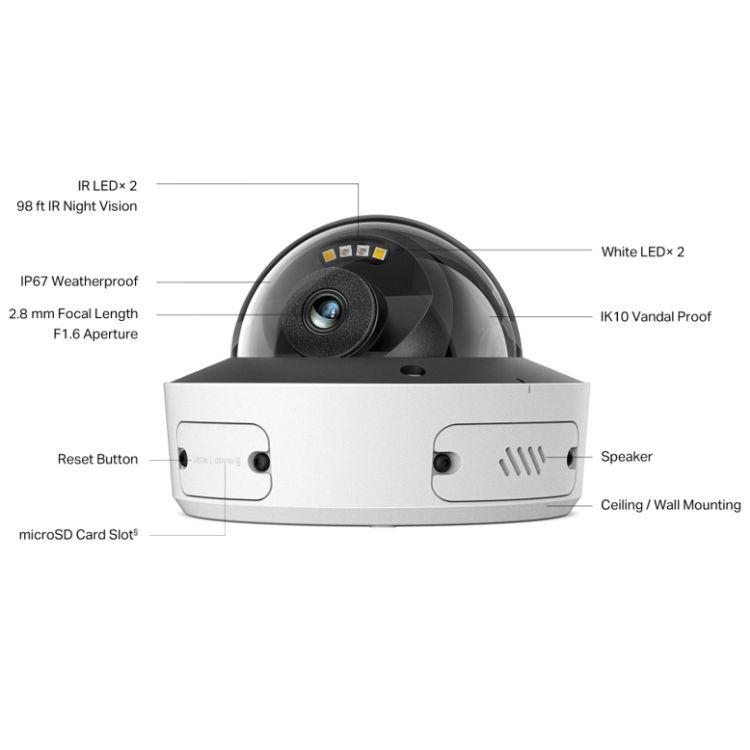

- IR Working Distance : IR LED Quantity: 2 Range: 30m Wavelength: 850nm
- Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication IK10 Vandal-Proof
- Wireless Features : -
- Power Supply : 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.3 W
- Video Streaming : Main Stream Sub-Stream

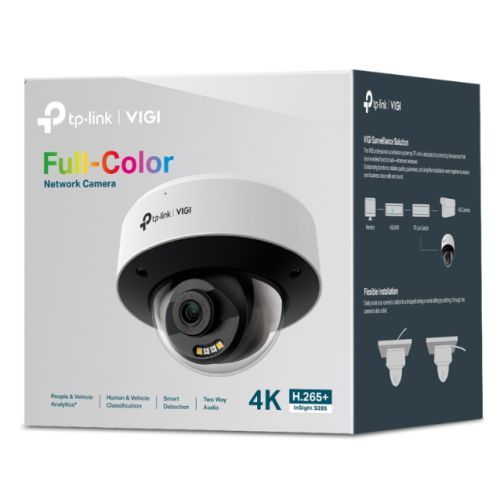

- Package Contents : VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
- Audio Features : Two-Way Audio Audio Input Audio Output Audio Compression Audio Sampling Rate: 8KHz Environment Noise Filtering Audio Bit Rate: 64 Kbps(G.711 alaw) Built-in Microphone records anything within a 16.4-ft (5 m) radius
- Suitable for Outdoor : Yes
- Network : Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP, RTP, IPv4, IPv6, ARP ONVIF: Yes API: Open Network Video Interface (Profile S/T/G) Simultaneous Live View: 3 Main Streams & 3 Sub-Streams Client: VIGI App, Web UI, VIGI VMS, Utility Cloud: Yes
- Interface(s) : 1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE DC Power Port Memory Card Slot (MicroSD Card up to 512GB)
- Frame Rate : Main Stream: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Sub-Stream: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps If HDR is turned on, the frame rate can only support up to 20fps.
- Wired/Wireless : Wired
- Video Compression : Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
- Warranty : 5 Years
- Day/Night Mechanism : IR Cut Filter Day/Night Switch: Unified/ Scheduled/ Auto
- Management : VIGI App, Web UI, VIGI VMS, Utility
- Minimum Illumination : 0.005 Lux; 0 Lux with IR/White light
- Image Sensor : 1/2.7” Progressive Scan CMOS

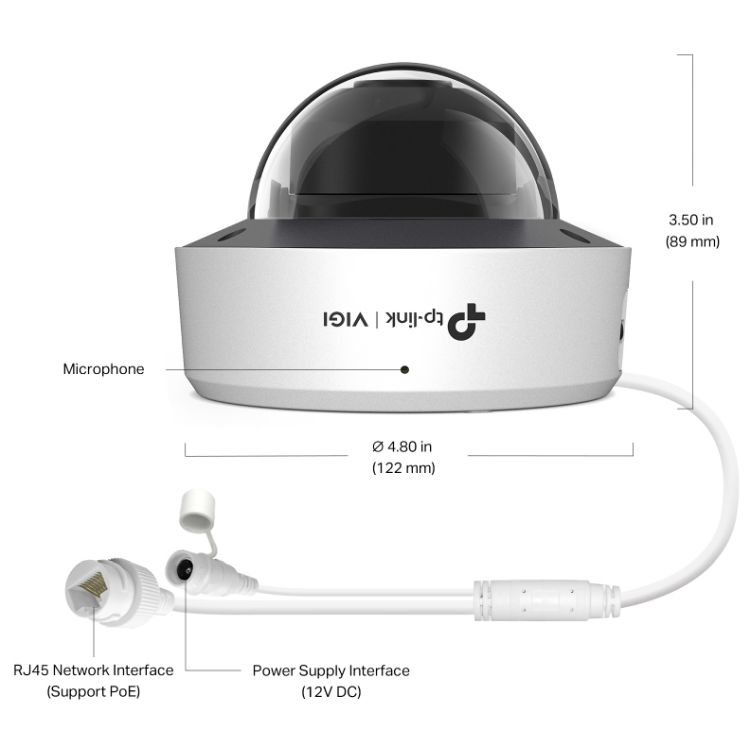

- Weight/Dimensions : 0.62 kg (LxWxH) 122 x 122 x 89 mm
- Additional Features : See Overview
- Environment : IP67 Waterproof Operating Temperature: -30–60 °C Storage Temperature: -40–60 °C Operating Humidity: 95% or Less (Non-Condensing) Storage Humidity: 95% or Less (Non-Condensing)
- #Hide#Form Factor : Dome
- Lens : 2.8mm Fixed Focal Lens Lens Mount: M12*P 0.5 Aperture: F1.6 DORI Distance: Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft)
- #Hide#Series : TP-LINK VIGI
- Package Weight : 0.8700 kg
- Resolution : Main Stream: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
