TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable

2 sold in last 8 hours
My Store
SWI-28TPOMAGBEASYPOE-43774979
Out of stock
£1,191.38 £643.99
TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ 26x 10/100/1000Mbps RJ45 ports (24x 802.3af/at-compliant PoE+) 2x Gigabit SFP slots 384W Power Budget, with up to 30W for each PoE port...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

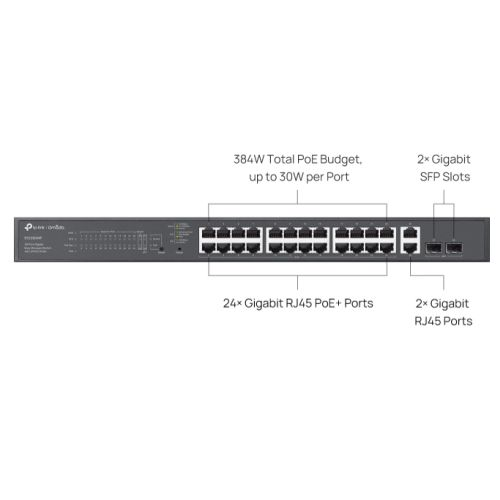

  • 26x 10/100/1000Mbps RJ45 ports (24x 802.3af/at-compliant PoE+)
  • 2x Gigabit SFP slots
  • 384W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack-mountable design

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
  • Lifetime Free Cloud without Any Additional Fees
  • Exists Entirely in the Cloud. No Hardware or Software Controller Needed
  • Cloud Centralized Management for Multiple Sites
  • Access Anytime via Omada App or Web
  • Easy Setup, Use, and Maintenance
  • Unlimited Management Scale
  • Zero-Touch Provisioning (ZTP) without Unboxing
  • Seamlessly Upgrade to Omada Cloud Standard with a Subscription

Abundant Functions for Reliable Surveillance Networking
  • Transmission Distance: up to 250 m
  • Priority Video Quality Guaranteed
  • Secure Traffic Separation via Port Isolation
  • PoE Auto Recovery

Multiple Application Scenarios
  • Surveillance - Works with IP Cameras
  • Wi-Fi Coverage - Works with Access Points
  • Wired Connections - Works with Non-PoE Devices such as PCs and Printers




Specifications:
- Transfer Method : Store-And-Forward
- VLAN : MTU VLAN Port-Based VLAN 802.1Q Tag VLAN
- #Hide#POE : Yes
- Power Supply : 100–240V AC, 50/60Hz
- Package Contents : ES228GMP Power Cord Mounting Brackets Rubber Feet Screws Installation Guide
- Number of Ports : 28
- Layer Features : L2 Features: Static Link Aggregation Loop Prevention / Loopback Detection 802.3x Flow Control Mirroring Port Statistics 802.1ab LLDP L2 Multicast: IGMP Snooping
- Interface(s) : 24 x10/100/1000 Mbps PoE+ RJ45 (802.3af PoE and 802.3at PoE+) 2 x10/100/1000 Mbps RJ45 2 x Gigabit SFP Auto-Negotiation/Auto MDI/MDIX
- Packet Forwarding Rate : 41.67 Mpps Packet Buffer Memory: 4 Mbit
- Jumbo Frame : 15 KB
- Switching Capacity : 56 Gbps
- Warranty : Limited Lifetime
- Dimensions : 440 x 330 x 44 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Standard: 802.3af PoE and 802.3at PoE+ compliant PoE Ports: 24 ports PoE Budget: 384W available for all PoE+ ports, 30W max per port Fast PoE & Perpetual PoE PoE Auto Recovery Up to 250m PoE transmission distance
- Management : Omada App: Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management: Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Cloud Access: Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning: Requires the use of Omada Cloud-Based Controller
- #Hide#Max SFP Transfer Rate : GB SFP
- Mac Address Table : 8K
- Quality of Service : Port-based/802.1p/DSCP QoS 8 Priority Queues Priority Schedule Mode Queue Weight Config Bandwidth Control Storm Control
- . : Management Features: Web-based GUI DHCP Client Cable Diagnostics Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Unified Configuration
- Package Type : Retail
- Rackmountable : Yes

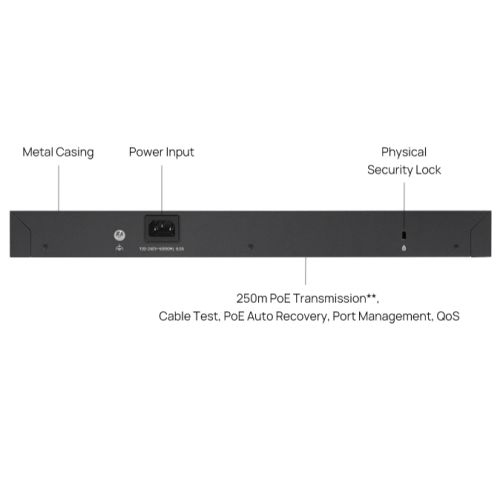

- Additional Features : Durable Metal Casing Fan Quantity: 2 Physical Security Lock Surge Protection: 6kV Supports plug-and-play
- Environment : Operating Temperature: -5°C ~ 45°C Storage Temperature: -40°C ~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
- Package Weight : 5.9200 kg
- Managed : Yes
