TP-LINK (ER7412-M2) Omada Multi-Gigabit VPN Router, Quad-Core CPU, 2x 2.5G WAN/LAN, 2x GB SFP, 8x GB RJ45, USB 3.0

TP-LINK (ER7412-M2) Omada Multi-Gigabit VPN Router, Quad-Core CPU, 2x 2.5G WAN/LAN, 2x GB SFP, 8x GB RJ45, USB 3.0

Omada Multi-Gigabit VPN Router

• Quad-core @2.0GHz CPU
• 2x 2.5G RJ45 WAN/LAN ports
• 10x Gigabit WAN/LAN Ports (2x SFP, 8x RJ45)
• 1x USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
• Load Balancing on up to 11 WAN ports increases the utilization rate of multi-line broadband
• High-security SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralized cloud management via the web or the Omada app
• DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security

Specifications:
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 294 x 180 x 44 mm
- Management : Omada App / Centralized Management / Cloud Access: - Requires OC300, OC200, Omada Cloud or Software Controller Maintenance: Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute)§ NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support
- Max Single Band Wi-Fi Rate : None
- Security : Access Control: Source/Destination IP-Based ACL Stateful ACL IPv4/IPv6 ACL Location Based ACL Filtering: WEB Group Filtering URL Filtering Web Security ARP Inspection: Sending GARP Packets ARP Scanning IP-MAC Binding Attack Defense: TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
- Port/NAT Forwarding : 66 Byte Packet forwarding rate: 1833 Mbps / 1835 Mbps 1,518 Byte Packet forwarding rate: 2461 Mbps / 2461 Mbps
- Button(s) : Reset Button
- DHCP : DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP
- . : Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Zero-Touch Provisioning: Requires Omada Cloud-Based Controller Management Features: Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule
- Power Supply : 100–240 VAC, 50/60 Hz Max Power Consumption: 18.5W (With USB 3.0 connected)
- Package Type : Retail
- Type : VPN Router
- VPN Support : GRE: Only in Standalone Mode SSL VPN: 80 Tunnels IPsec VPN: 150 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
- Package Contents : ER7412-M2 Power Cord Quick Installation Guide Rackmount Kit RJ45 Console Cord
- Max Wired Transfer Rate : 2.5 Gbps

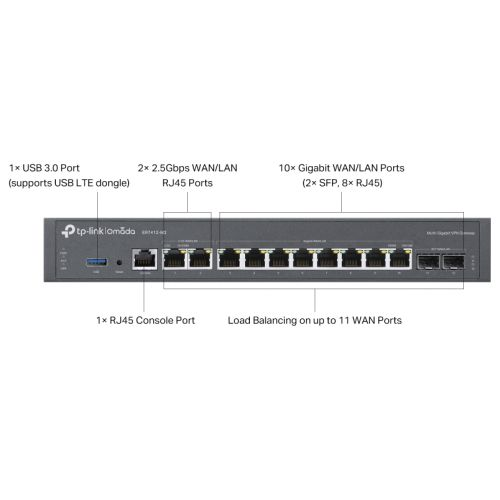

- Interface(s) : 1 x 2.5G RJ45 WAN/LAN Port 1 x 2.5G RJ45 WAN/LAN Port 2 x Gigabit SFP WAN/LAN Ports 8 x Gigabit RJ45 WAN/LAN Ports 1 x RJ45 Console Port 1 x USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
- USB Application : Supports USB storage, and LTE backup with LTE dongle
- Connectivity : Wired
- Additional Features : Mounting: Desktop/Rackmountable Quad-core 2.0GHz CPU Flash: 128MB NAND DRAM: 1 GB DDR4 Protection: 4 kV surge protection Enclosure: Steel See Overview/Manufacturers website for more details
- Environment : Operating Temperature: 0–45°C (32–113°F); Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% non-condensing
- IEEE Standards & Protocols : IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
- Package Weight : 1.8900 kg
