TP-LINK (ER703WP-4G-OUTDOOR) Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway, 3x GB WAN/LAN (2x PoE Out, 1x PoE In)

TP-LINK (ER703WP-4G-OUTDOOR) Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway, 3x GB WAN/LAN (2x PoE Out, 1x PoE In)

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway

• 4G+ Cat6 up to 300 Mbps
• AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz
• 3 x Gigabit WAN/LAN Ports (2 x PoE Out, 1 x PoE In)
• 1 x Nano SIM Card Slot
• 802.3at/bt PoE or 12V/2A DC Power Supply
• 4G and Ethernet WAN Auto Backup with Load Balancing
• IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN
• Centralized Management
• IP55 Weatherproofing



Specifications:
- #Hide#Wireless Standard : Wi-Fi 6/6E (802.11ax)
- Max Single Band Wi-Fi Rate : 2402 Mbps
- Security : DPI: Application control via DPI / Updated app library Access Control: Source/Destination IP Based Access Control Filtering: Web Group Filtering, URL Filtering, Web Security ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding Attack Defense: TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
- Button(s) : Reset Button
- Power Supply : 802.3at/bt PoE; 12VDC / 2A Power Adapter
- Wireless Features : Seamless Roaming Mesh (with EAP that supports Mesh) OFDMA Beamforming MU-MIMO Rate Limit: Based on SSID/Client Airtime Fairness Multiple SSIDs: 16 in total (8 per radio) Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Guest Network
- VPN Support : GRE: Only in Standalone Mode SSL VPN: 50 Tunnels IPsec VPN: 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
- Package Contents : ER703WP-4G-Outdoor Mounting Kits Quick Installation Guide
- Wi-Fi Rating : AX3000
- Signal Rate : 4G+ Cat6 up to 300 Mbps 2.4 GHz: up to 574 Mbps 5 GHz: up to 2402 Mbps

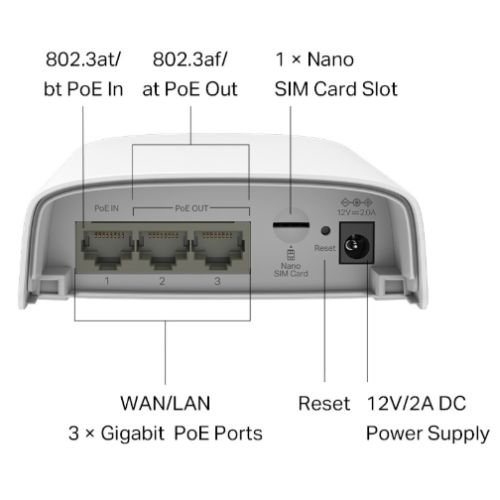

- Interface(s) : 3 x Gigabit WAN/LAN (2x PoE Out, 1x PoE In) Nano Sim Card Slot
- #Hide#Suitable for Outdoor : Yes (Outdoor)
- Antenna(s) : Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in LTE: Two 4.0dBi omnidirectional detachable antennas
- Warranty : Limited Lifetime

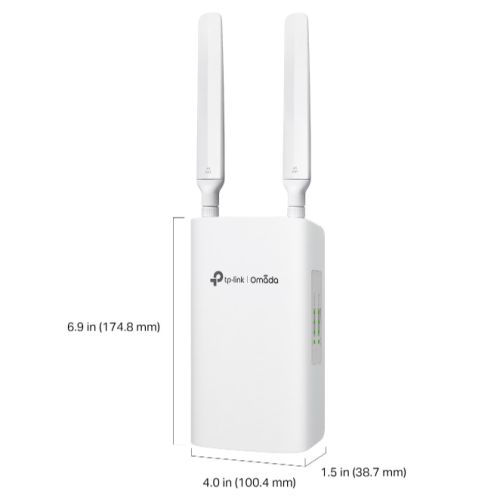

- Dimensions : 174.8 x 100.4 x 38.7 mm (Antenna dimensions are not included)
- Management : Omada App: Yes Centralized Management: Omada Cloud Essentials Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Cloud Access: Yes Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- DHCP : DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP
- Dynamic DNS : Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization
- . : Advanced Routing: Static Routing Policy Routing RIP OSPF Load Balance: Intelligent Load Balance Application Optimized Routing Link Backup(Timing, Failover) Online Detection NAT: One-to-One NAT Multi-Net NAT Virtual Server Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP
- Package Type : Retail
- Bands : Dual Band
- Type : 4G Router
- Max Wired Transfer Rate : 10/100/1000 Mbps
- USB Application : -
- Connectivity : Wireless
- Frequency : Wi-Fi: 2.4 GHz and 5 GHz 4G: Downlink: 300 Mbps Uplink: 50 Mbps

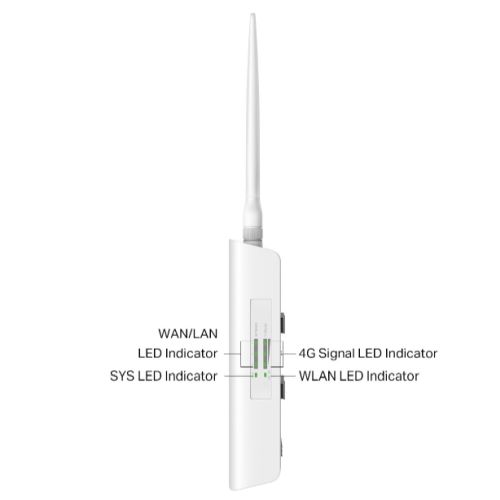

- Additional Features : Flash: 256 MB NAND DRAM: 512 MB DDR4 LED: 4G Signal, WLAN, WAN/LAN, SYS Mounting: Pole/Wall-Mounting SMS: Receive / Send SMS VLAN: 802.1Q VLAN IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode ACL: IP/Port/Protocol/Domain Name Filtering Bandwidth Control: IP-Based Bandwidth Control Session Limit: IP-Based Session Limit IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
- Environment : Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 5% to 95% non-condensing Storage Humidity: 5% to 90% non-condensing
- Package Weight : 0.6600 kg
