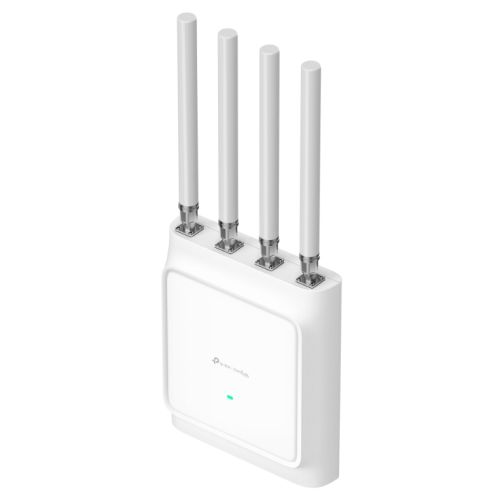

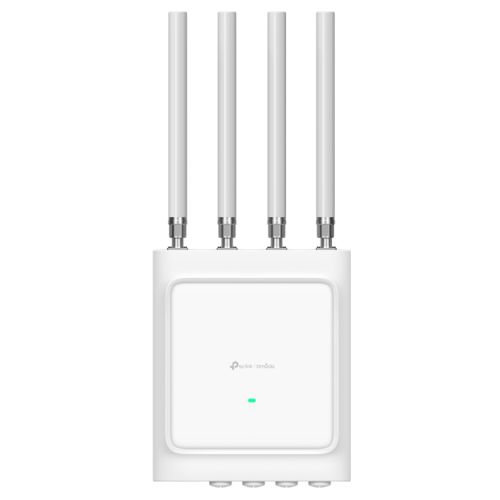

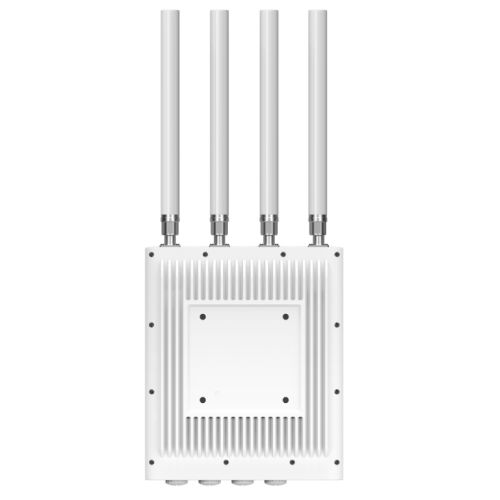

TP-LINK (EAP668-OUTDOOR HD) Omada AX3600 Indoor/Outdoor WiFi 6 Access Point, Dual Band, Up to 1024 Devices, 10G SFP+, PoE, Omada Mesh

TP-LINK (EAP668-OUTDOOR HD) Omada AX3600 Indoor/Outdoor WiFi 6 Access Point, Dual Band, Up to 1024 Devices, 10G SFP+, PoE, Omada Mesh

AX3600 Indoor/Outdoor WiFi 6 Access Point

• High-Density Connectivity: Supports up to 1,024 devices.
• Ideal for Outdoor Environments: IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
• High-gain Detachable Antennas: 4x External N-Type Omni Antennas, 6 dBi Dual-Band (Antennas Included).
• Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
• Multiple Ports for Flexible Network Solutions: 1x 10G SFP+ slot, 1x 2.5G PoE-In Port, and 1x Gigabit PoE-Out port.
• PoE+/PoE++ Powered and PoE+ Out: Supports 802.3at/bt PoE input and 802.3at PoE output.
• Advanced Features: Omada Mesh, Seamless Roaming, Bluetooth, and Centralized Cloud Management.

Specifications:
- EIRP : CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);
- #Hide#Wireless Standard : 802.11ax (Wi-Fi 6/6E)
- Wireless Functions : 1024-QAM Mesh Seamless Roaming(802.11k/v/r) Enable/Disable Wireless Radio Enable/Disable SSID Broadcast Guest Network Automatic Channel Assignment (Adjust transmit Power on dBm) Transmit Power Control Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDs:16 (8 for each band) MU-MIMO (4 x 4 MU-MIMO DL/UL) UL/DL OFDMA Wireless Statistics Wireless Schedule Reboot Schedule RADIUS Accounting MAC Authentication Static IP/Dynamic IP
- Max Single Band Wi-Fi Rate : 2402 Mbps
- Wireless Standards : IEEE 802.11 a/b/g/n/ac/ax
- Security : VLAN Access Control Rogue AP Detection Captive Portal Authentication Maximum number of MAC Filter: 4,000 Wireless Isolation between Clients Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Button(s) : Reset
- Power Supply : 802.3at/bt PoE
- Package Contents : EAP668-Outdoor HD 4 x External Dual-Band Omni Antennas Installation Guide Mounting Kit Waterproof Kit
- Wi-Fi Rating : AX3600
- Primary Function : Access Point
- Suitable for Outdoor : Yes (Outdoor)

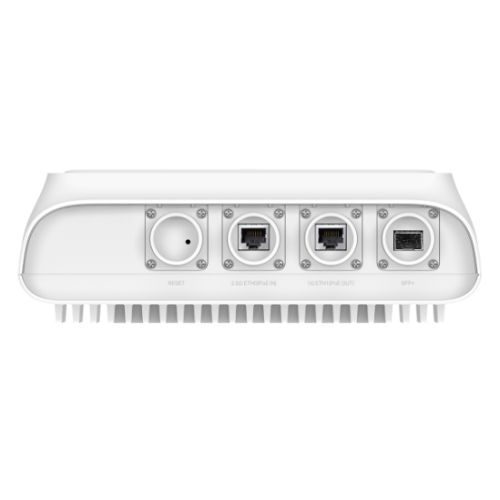

- Interface(s) : 1 x 2.5G Ethernet 1 x Gigabit Ethernet 1 x 10G SFP+
- Protection : 6KV Lightning Protection
- Antenna(s) : 4 x External High-gain Detachable Omni Antennas 2.4 GHz: 6.0 dBi 5 GHz: 6.0 dBi
- Warranty : 2 Years
- Dimensions : 240 x 80 x 312 mm (excluding antennas, waterproofing kit, and mounting kit)
- Management : Omada App Restore & Backup Firmware update via Web NTP Centralized Management Cloud Access Email Alerts LED ON/OFF Control Management MAC Access Control SNMP v1, v2c, v3 SSH Web-based Management
- Package Type : Retail
- Bands : Dual Band
- Max Wired Transfer Rate : 10 Gbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 2.4 GHz: Up to 1148 Mbps 5 GHz: Up to 2402 Mbps
- Additional Features : Bluetooth Wall/pole mounting (kits included) Concurrent Clients: 1,000+
- Environment : IP68-rated weatherproof enclosure 6 kV lightning protection Operating Temperature: -40–70°C Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 802.3bt: EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out) 802.3at: EU: 20.2W (PSE disabled) Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.
- Package Weight : 5.5900 kg
