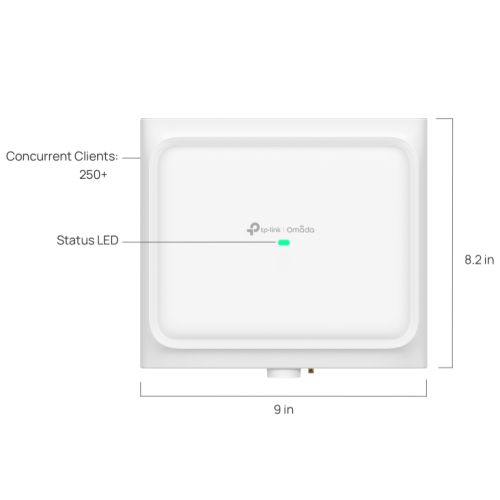

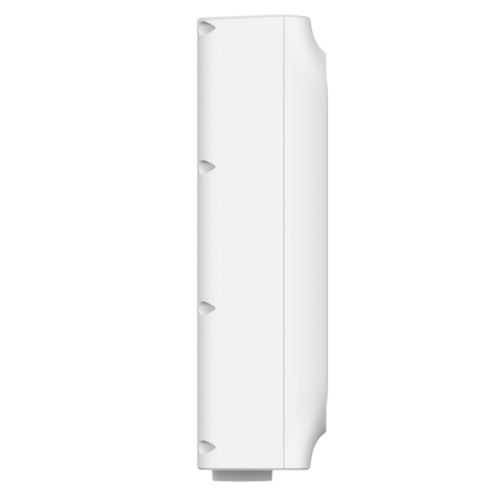

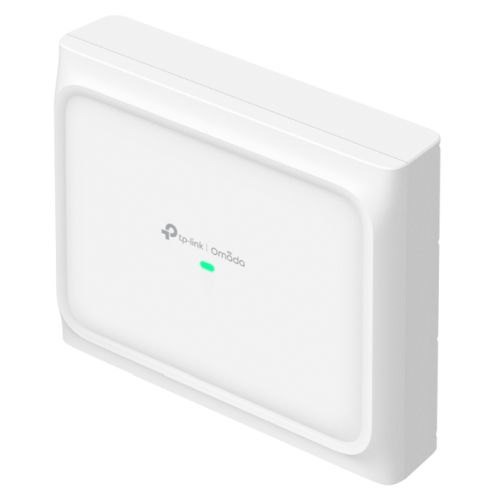

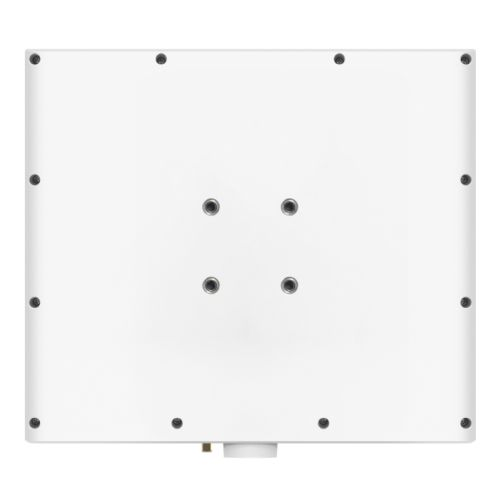

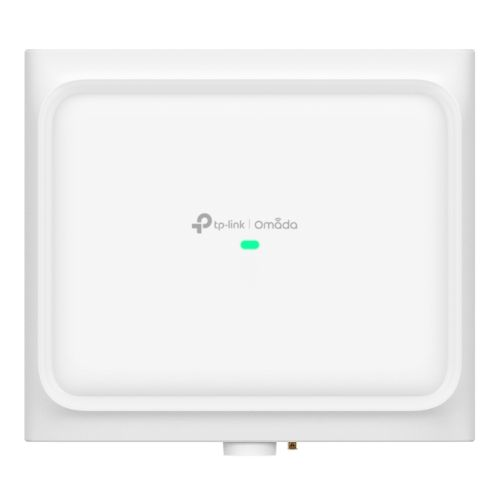

TP-LINK (EAP650 D120-OUTDOOR) Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, Directional Ultra-Range Coverage, PoE, Mesh Technology

TP-LINK (EAP650 D120-OUTDOOR) Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, Directional Ultra-Range Coverage, PoE, Mesh Technology

AX3000 Indoor/Outdoor WiFi 6 Access Point

• Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
• Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.
• Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
• 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
• Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
• Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.

Specifications:
- EIRP : CE: 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP)
- #Hide#Wireless Standard : 802.11ax (Wi-Fi 6/6E)
- Wireless Functions : 1024-QAM DL/UL OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 on each band) Enable/Disable Wireless Radio Enable/Disable SSID Broadcast Guest Network Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) 2 x 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO Omada Mesh Seamless Roaming(802.11k/v/r) Band Steering Load Balance Airtime Fairness Beamforming RADIUS Accounting MAC Authentication Reboot Schedule
- Max Single Band Wi-Fi Rate : 2402 Mbps
- Wireless Standards : IEEE 802.11 a/b/g/n/ac/ax
- Security : Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Button(s) : Reset
- Power Supply : 802.3at PoE 48V Passive PoE
- Package Contents : Access Point EAP650 D120-Outdoor Mounting Kits Installation Guide
- Wi-Fi Rating : AX3000
- Primary Function : Access Point
- Suitable for Outdoor : Yes (Outdoor)

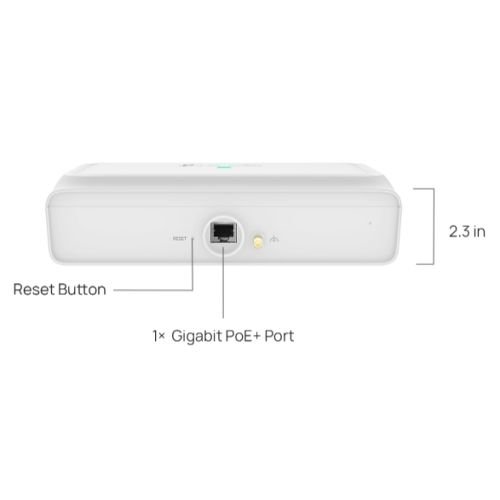

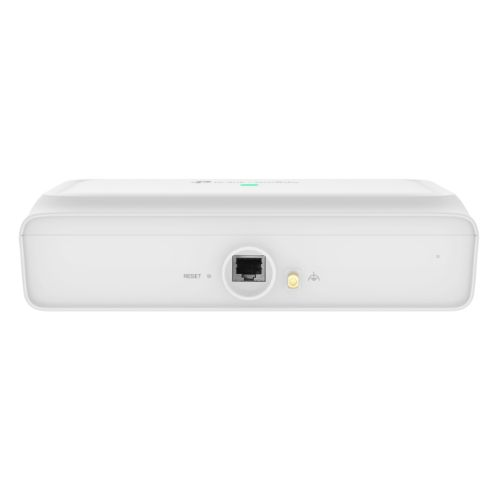

- Interface(s) : 1 x Gigabit Ethernet (RJ-45) supports 802.3at PoE or 48V Passive PoE
- Antenna(s) : Built-in Directional Antennas: 2.4 GHz: 2x 8 dBi 5 GHz: 2x 10 dBi Beamwidth: 120° Horizontal; 30° Vertical
- Warranty : 2 Years
- Dimensions : (WxDxH) 207.5 x 58 x 230 mm
- Management : Omada App Restore & Backup NTP Centralized Management - Omada controller/app Cloud Access - requires Omada controller Email Alerts LED ON/OFF Control Management MAC Access Control SNMP: v1, v2c System Logging Local/Remote Syslog SSH Web-based Management Multi-site Management Zero-Touch Provisioning - requires Omada Cloud-Based controller
- . : Wireless Schedule Wireless Statistics Static IP/Dynamic IP
- Quality of Service : QoS (WMM)
- Package Type : Retail
- Bands : Dual Band
- Wireless Range : Directional Ultra-Range Coverage 2.4 GHz up to 787 ft /240 m 5 GHz up to 1640 ft /500 m
- Max Wired Transfer Rate : 10/100/1000 Mbps
- #Hide#Access Point Mode : Yes (Access Point Mode)
- Frequency : 2.4GHz: Up to 574Mbps 5GHz: Up to 2402Mbps
- Additional Features : See Overview
- Environment : Operating Temperature: -30–70°C (-22–158°F) Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Power Consumption : 12.5W (802.3at PoE or Passive PoE)
- Package Weight : 2.1000 kg
