TP-LINK (DR3220v-4G) Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway, 4G+ Cat6 up to 300Mbps, VDSL2 35b, USB, VoIP Support, Centralized Management, Desktop / Rack-Mounting

TP-LINK (DR3220v-4G) Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway, 4G+ Cat6 up to 300Mbps, VDSL2 35b, USB, VoIP Support, Centralized Management, Desktop / Rack-Mounting

Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway

• Support 4G+ Cat6 up to 300 Mbps
• Super VDSL (VDSL2 35b): Supports 350Mbps DSL Access
• VDSL2/ADSL2+/ADSL2/ADSL Compatibility

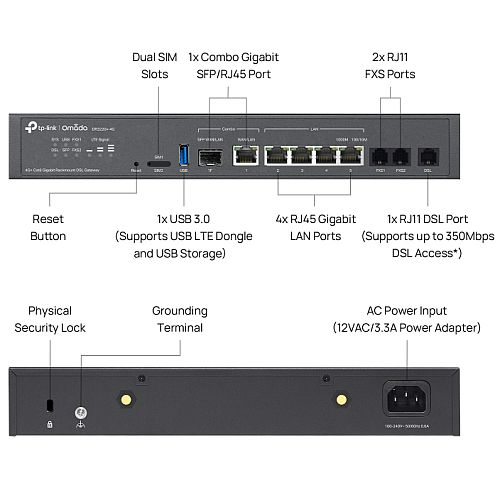

• 1x DSL Port, 2x FXS Ports, 1x Gigabit SFP/RJ45 Combo WAN/LAN Port, 4x Gigabit RJ45 LAN Ports, 1x USB 3.0 Port
• 2x Nano SIM for 4G/LTE Failover
• DPI Security Support
• IPSec / PPTP / L2TP / OpenVPN / WireGuard / GRE / SSL VPN
• Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
• Centralized Cloud Management
• Desktop / Rack-Mounting



Specifications:
- Antenna(s) : LTE: Two 3dBi Omnidirectional Detachable Antennas
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 294 x 180 x 44 mm (Antenna dimensions not included)
- Management : Omada App Centralized Management Cloud Access Zero-Touch Provisioning Maintenance: Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize1 Port Mirroring CLI (only in Standalone Mode) Syslog Support TR-069 (data models of TR-098 and TR-181 are supported)
- Security : Access Control: Source/Destination IP Based Access Control Filtering: Web Group Filtering URL Filtering Web Security ARP Inspection: Sending GARP Packets ARP Scanning IP-MAC Binding: Attack Defense TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/X
- Port/NAT Forwarding : 66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,488 pps 1,518 Byte Packet Forwarding Rate: 81274 pps/ 91275 pps
- Button(s) : Reset Button
- DHCP : DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP
- . : Management Features: Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration
- Dynamic DNS : Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- Power Supply : 100-240V/50-60Hz 0.6A Max Power Consumption: 8.55 W (No Link) 24.4 W (Full load + USB)
- Wireless Features : -
- Package Type : Retail
- Type : VDSL2/ADSL2 Router
- VPN Support : GRE: Only in Standalone Mode SSL VPN: 50 Tunnels IPsec VPN: 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
- Package Contents : DR3220v-4G Power Cord Ethernet Cable Phone Cable Rubber Feet SIM Card Eject Pin Rackmount Kit Antenna Extension Base Quick Installation Guide
- Max Wired Transfer Rate : 10/100/1000 Mbps
- Signal Rate : Support 4G+ Cat6 up to 300 Mbps Super VDSL (VDSL2 35b): Supports 350Mbps DSL Access
- Interface(s) : 1 x Combo Gigabit SFP/RJ45 (1 SFP WAN/LAN + 1 WAN/LAN ) 4 x RJ45 Gigabit LAN 1 x DSL Port 2 x FXS Ports 1 x Dual-SIM Nano SIM slot (4G+ Cat6)
- USB Application : Supports USB LTE dongle and USB Storage
- Connectivity : Wired
- Additional Features : Flash: 256 MB NAND DRAM: 512 MB DDR4 Desktop / Rack-mounting IP-based Bandwidth Control Load Balance IP-based Session Limit
- Environment : Operating Temperature: 0C°~40°C (32°F ~104°F) Storage Temperature: -40°C to 70°C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing
- Package Weight : 2.3600 kg
