MSI Z790 GAMING PLUS WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 4x M.2

2 sold in last 8 hours
My Store
MSIMBZ790GAMINGPLUSWIFI-43775103
Out of stock
£813.98 £439.99
MSI Z790 GAMING PLUS WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 4x M.2 Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all. Support Intel® Core™ 14th/ 13th/ 12th...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

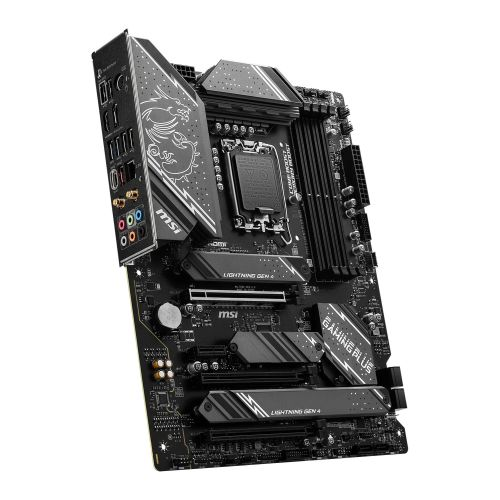

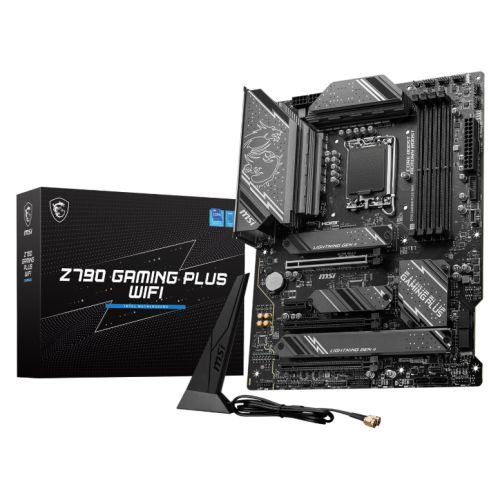

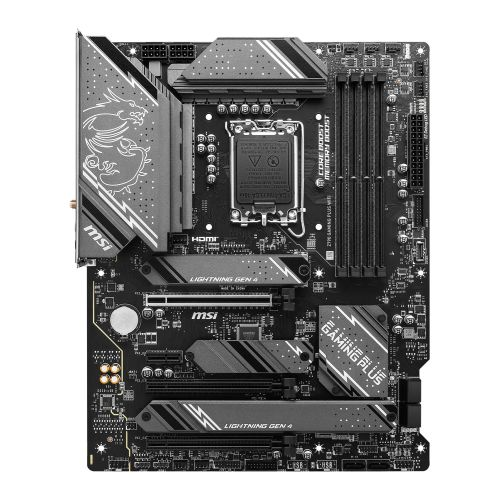

MSI Z790 GAMING PLUS WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 4x M.2

Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience





Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Lightning Gen 5

The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.

Extended Heatsink Design

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

Quadruple M.2 Connectors

Onboard quadruple M.2 connectors for the maximum storage performance.

M.2 Shield FROZR

M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.

2.5G Network Solution

Featuring premium 2.5G LAN to deliver better network experience.

Wi-Fi 6E

The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience.

Specifications:
- Accessories : Wi-Fi Antenna 2 x SATA Cables EZ M.2 Clips M.2 Screw / Standoff Set DVD Driver Cable Stickers Quick Installation Guide EU Regulatory Notice
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1
- RAM Speeds : Up to 7200(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1, 5 and 10 for SATA storage devices Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices
- . : 1 x USB4 card (JTBT_U4_1, supports RTD3) 4 x USB 2.0 4 x USB 5Gbps Type-A 1 x USB 10Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- CPU Support : Click here for CPU support
- Wireless : Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
- Chipset : Intel Z790
- RAM Technology : DDR5 (Dual Channel) Supports non-ECC, un-buffered memory Supports Intel XMP3.0 OC
- USB Ports Supported : Rear: 1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 Front: 1 x USB 10Gbps Type-C 4 x USB 5Gbps Type-A 4 x USB 2.0
- Internal I/O Connectors : 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x CPU Fan 1 x Pump Fan 6 x System Fan 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Tuning Controller (JDASH) 2 x Addressable V2 RGB LED 2 x RGB LED 1 x TPM pin TPM 2.0
- Storage : 6 x SATA III 4 x M.2 M.2_1 (22110/2280/2260/2242) - PCIe 4.0 x4 M.2_2 (2280/2260/2242) - PCIe 4.0 x4 M.2_3 (2280/2260/2242) - SATA & PCIe 4.0 x4 M.2_4 (2280/2260/2242) - SATA & PCIe 4.0 x4

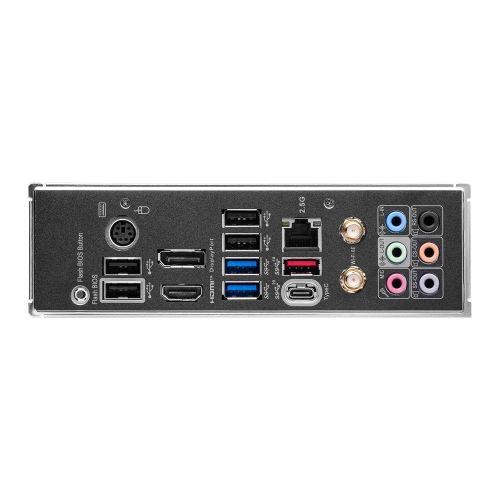

- Back Panel I/O Ports : 1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 1 x DisplayPort 1.4 1 x HDMI 2.1 1 x PS/2 Keyboard/Mouse Combo 1 x RJ-45 1 x Audio Line In 4 x Audio Line Out 1 x Microphone In 2 x SMA Antenna
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : Intel 1700
