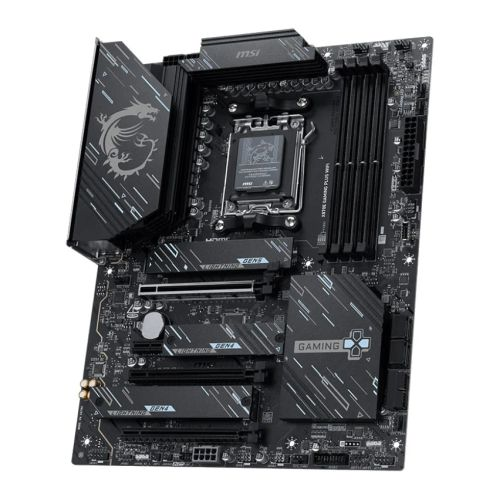

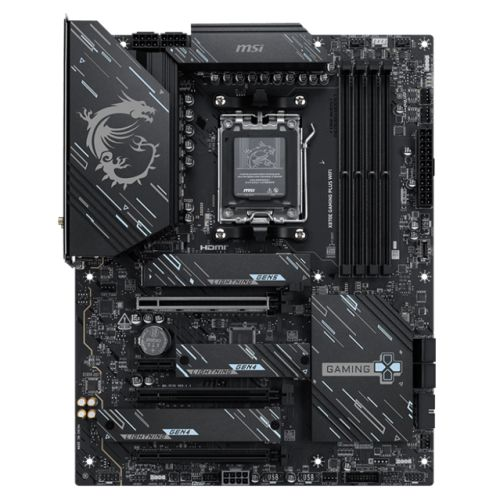

MSI X870E GAMING PLUS WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, USB4, Wi-Fi 7, 5G LAN, 3x M.2

2 sold in last 8 hours
My Store
MSIMBX870EGAMPLUSWIFI-43775386
Out of stock
£980.48 £529.99
MSI X870E GAMING PLUS WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, USB4, Wi-Fi 7, 5G LAN, 3x M.2 X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

MSI X870E GAMING PLUS WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, USB4, Wi-Fi 7, 5G LAN, 3x M.2

X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience.

Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience




Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
  • AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
  • AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
  • Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
  • AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.



Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.

Lightning Gen 5

The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.

EZ M.2 Shield Frozr II

The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier

Triple M.2 Connectors

Onboard 3x M.2 connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.

EZ PCIe Clip II

Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.

Extended Heatsink Design

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

5G Network Solution

Featuring premium 5G LAN to deliver better network experience.

Wi-Fi 7

The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.

Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience.


Specifications:
- CPU Support : Click here for CPU support
- Wireless : Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
- Chipset : AMD X870E
- RAM Technology : DDR5 (Dual Channel) Supports Non-ECC, Un-buffered memory Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports CUDIMM, Clock Driver bypass mode only
- USB Ports Supported : Rear: 1 x USB 40Gbps Type-C 1 x USB 20Gbps Type-C 2 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 Front: 1 x USB 10Gbps Type-C 4 x USB 5Gbps Type-A 6 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX

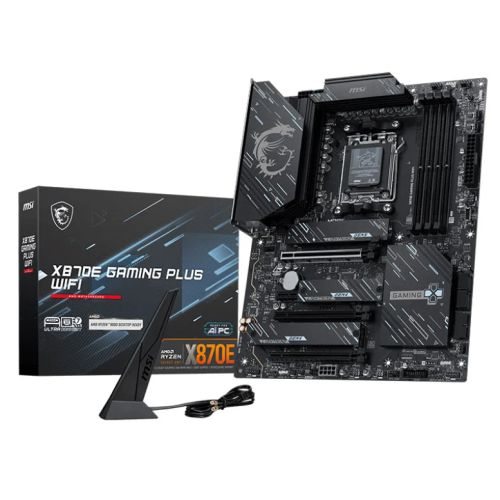

- Accessories : Quick Installation Guide EU Regulatory Notice 2 x SATA Cables 2 x EZ M.2 Clip II EZ M.2 Clip II Remover Cable Stickers EZ Wi-Fi Antenna 1 to 2 EZ Conn-Cable (v1)
- #Hide#Max LAN Speed : 5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x USB4 (40Gbps) support USB Type-C display outputs
- PCI/PCI Express : 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 *Specifications may vary between CPU types
- RAM Speeds : Up to 8200+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1 and 10 for SATA storage devices Supports RAID 0, 1 and 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series CPUs.
- . : 1 x RGB LED 1 x TPM pin 2.0 6 x USB 2.0 4 x USB 5Gbps Type-A 1 x USB 10Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x Power (PCIE_PWR 8pin) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 6 x System Fan 1 x EZ Conn-header (JAF_1) 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Tuning Controller (JDASH) 3 x Addressable V2 RGB LED
- Storage : 4 x SATA III 3 x M.2 Ryzen 9000 & 7000 Series CPUs: M.2_1 (2280/2260) - PCIe 5.0 x4 Ryzen 8000 Series CPUs: M.2_1 (2280/2260) - PCIe 4.0 x4 Chipset: M.2_2 (2280/2260) - PCIe 4.0 x4 M.2_3 (22110/2280) - PCIe 4.0 x4

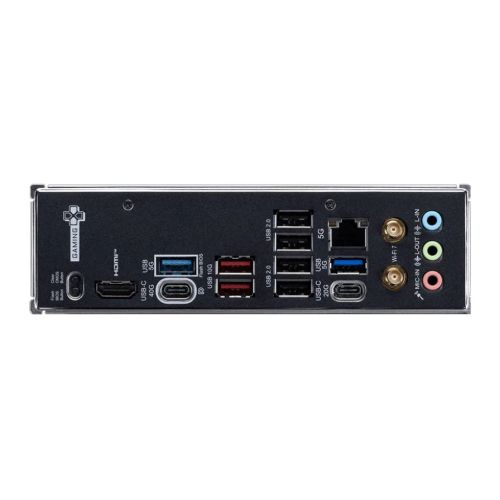

- Back Panel I/O Ports : 1 x USB 40Gbps Type-C 1 x USB 20Gbps Type-C 2 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 1 x HDMI 2.1 1 x RJ-45 1 x Audio Line In 1 x Audio Line Out 1 x Microphone In 2 x SMA Antenna
- LAN : 5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : AMD AM5
