MSI PRO B760M-P DDR4, Intel B760, 1700, Micro ATX, 4 DDR4, VGA, HDMI, DP, GB LAN, 2x M.2

2 sold in last 8 hours
My Store
MSIMBB760PRO-PDDR4-43775056
Out of stock
£373.68 £201.99
MSI PRO B760M-P DDR4, Intel B760, 1700, Micro ATX, 4 DDR4, VGA, HDMI, DP, GB LAN, 2x M.2 PRO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version. Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

MSI PRO B760M-P DDR4, Intel B760, 1700, Micro ATX, 4 DDR4, VGA, HDMI, DP, GB LAN, 2x M.2

PRO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version.

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength



Business Elegance Redefined
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

USB 3.2 Gen 2 Type-C

Synergize with a MSI motherboard through bridging with a USB 3.2 Gen 2 Type-C port for convenient access.

PCI-E Steel Armor

Protecting VGA cards against bending and EMI.

EZ Debug LED

Easiest way to troubleshoot.

Frozr AI Cooling

Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.

Memory Boost

Advanced technology to deliver pure data signals for the best performance, stability and compatibility.

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.

Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience.





Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel B760
- RAM Technology : DDR4 (Dual Channel) Supports non-ECC, un-buffered memory Supports Intel XMP
- USB Ports Supported : Rear: 1 x USB 10Gbps Type-C 1 x USB 5Gbps Type-A 4 x USB 2.0 Front: 2 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 128GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : EU Regulatory Notice Quick Installation Guide 2 x M.2 Screw / Standoff Sets SATA Cable I/O Shield
- #Hide#Max LAN Speed : GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR4
- Graphics Ports : 1 x VGA 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1
- RAM Speeds : Up to 4800+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1, 5 and 10 for SATA storage devices
- . : 2 x USB 5Gbps Type-A
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 1 x Power (CPU_PWR) 1 x CPU Fan 2 x System Fan 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Printer Port 1 x Com Port 1 x RGB LED 1 x TPM pin TPM 2.0 4 x USB 2.0
- Storage : 4 x SATA III 2 x M.2 M.2_1 (2280/2260/2242) - PCIe 4.0 x4 M.2_2 (2280/2260/2242) - SATA & PCIe 4.0 x4

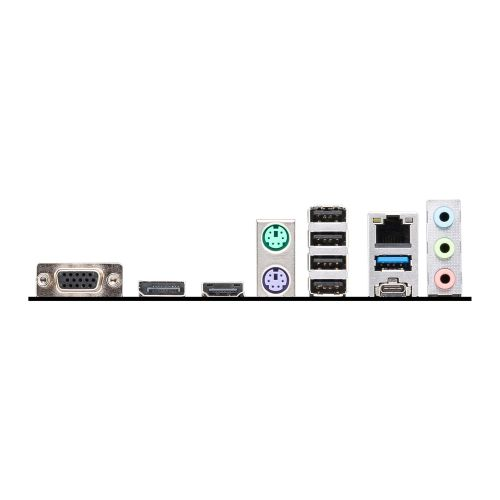

- Back Panel I/O Ports : 1 x USB 10Gbps Type-C 1 x USB 5Gbps Type-A 4 x USB 2.0 1 x DisplayPort 1.4 1 x HDMI 1.4 1 x VGA 1 x RJ-45 1 x Audio Line In 1 x Audio Line Out 1 x Microphone In
- LAN : GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : Intel 1700
