MSI MAG Z790 TOMAHAWK WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 4x M.2

2 sold in last 8 hours
My Store
MSIMBZ790MAGTHWIFI-43775788
Out of stock
£813.98 £439.99
MSI MAG Z790 TOMAHAWK WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 4x M.2 MAG Z790 TOMAHAWK WIFI The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

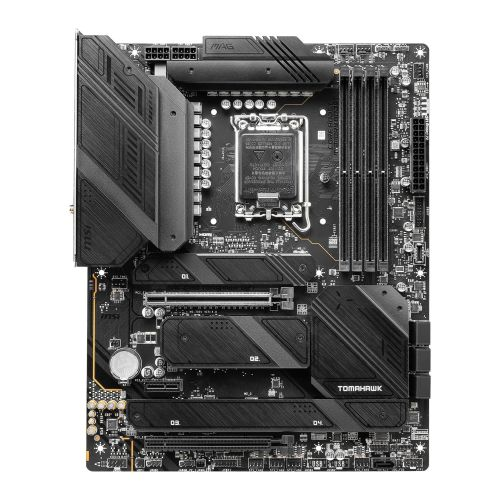

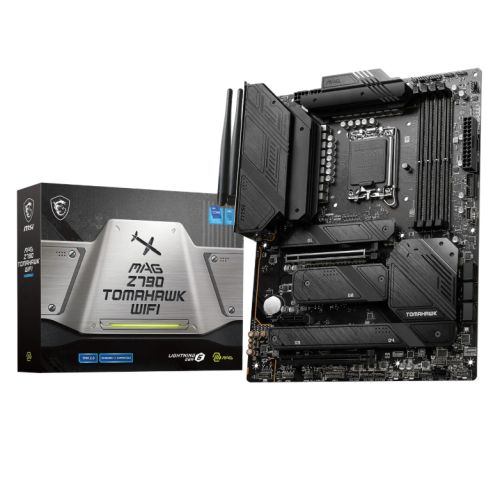

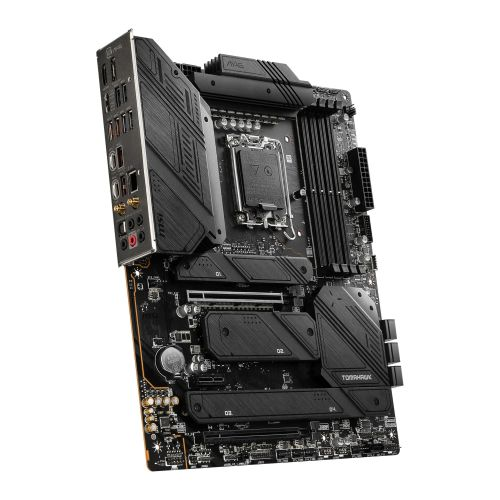

MSI MAG Z790 TOMAHAWK WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 4x M.2

MAG Z790 TOMAHAWK WIFI

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material





Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.

Quadruple M.2 Connectors

Onboard quadruple M.2 connectors for the maximum storage performance.

Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Wi-Fi 6E

The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

2.5G Network Solution

Featuring premium 2.5G LAN to deliver better network experience.

Lightning USB 20G

Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

M.2 Shield FROZR

M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.

Memory Boost

Advanced technology to deliver pure data signals for the best performance, stability and compatibility.

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.

Audio Boost 5

Isolated audio with a high quality audio processor for the most immersive gaming experience

6 Layer PCB with 2oz Thickened Copper

An Enhanced PCB design provides higher performance and longlasting system stability without any compromise.




Specifications:
- CPU Support : Click here for CPU support
- Wireless : Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
- Chipset : Intel Z790
- RAM Technology : DDR5 (Dual Channel) Supports non-ECC, un-buffered memory Supports Intel XMP3.0 OC
- USB Ports Supported : Rear: 1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-C 4 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A Front: 1 x USB 10Gbps Type-C 2 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : Quick Installation Guide 2 x SATA Cables EZ M.2 Clips USB Drive Cable Stickers Wi-Fi Antenna EU Regulatory Notice
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1
- RAM Speeds : Up to 7200(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1, 5 and 10 for SATA storage devices Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices
- . : 4 x USB 2.0 2 x USB 5Gbps Type-A 1 x USB 10Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x CPU Fan 1 x Pump Fan 6 x System Fan 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Tuning Controller (JDASH) 3 x Addressable V2 RGB LED 1 x RGB LED 1 x TPM pin TPM 2.0
- Storage : 7 x SATA III 4 x M.2 M.2_1 (22110/2280/2260) - PCIe 4.0 x4 M.2_2 (2280/2260) - PCIe 4.0 x4 M.2_3 (2280/2260/2242) - SATA & PCIe 4.0 x4 M.2_4 (2280/2260/2242) - PCIe 4.0 x4

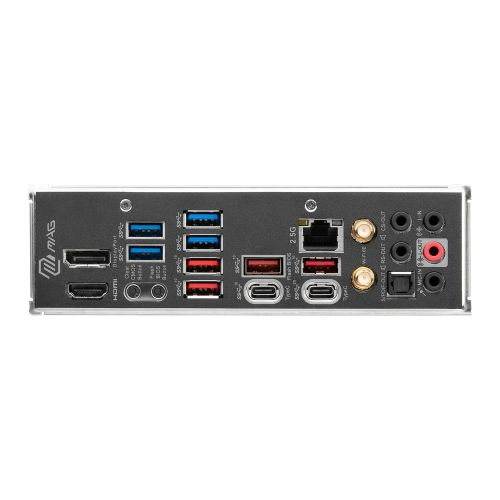

- Back Panel I/O Ports : 1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-C 4 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 1 x DisplayPort 1.4 1 x HDMI 2.1 1 x RJ-45 1 x Audio Line In 3 x Audio Line Out 1 x Microphone In 1 x S/PDIF Optical Out 2 x SMA Antenna
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio
- Package Weight : To be confirmed
- Socket : Intel 1700
