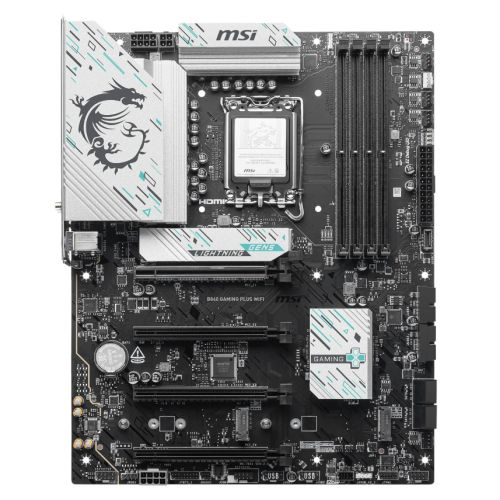

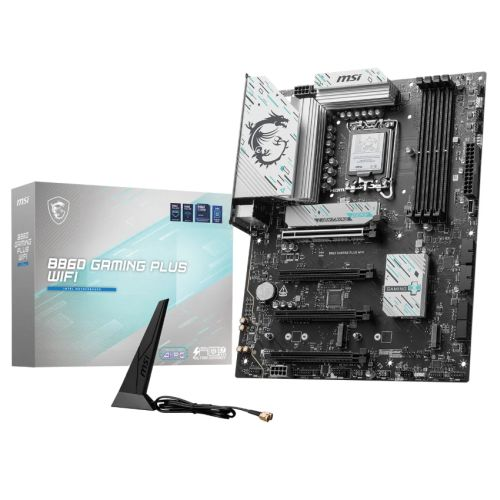

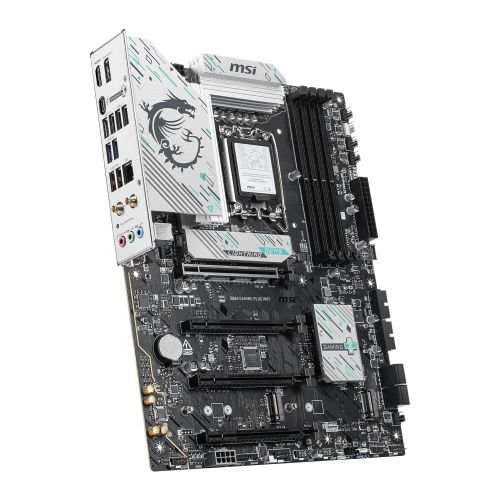

MSI B860 GAMING PLUS WIFI, Intel B860, 1851, ATX, 4 DDR5, HDMI, DP, TB4, Wi-Fi 7, 5G LAN, 3x M.2

The B860 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience.

Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience








Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
  • AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
  • AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
  • Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
  • AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.





Thunderbolt™ 4 port
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.

5G Network Solution

Featuring premium 5G LAN to deliver better network experience.

Wi-Fi 7

The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.

Lightning Gen 5

The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.

Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Triple M.2 Connectors

Onboard 3x M.2 connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.

EZ M.2 Shield Frozr II

The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier

EZ PCIe Clip II

Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.

Pre-installed I/O Shielding

Better EMI protection and more convenience for installation

Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience.

Specifications:
- CPU Support : Click here for CPU support
- Wireless : Intel® Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
- Chipset : Intel B860
- RAM Technology : DDR5 (Dual Channel) Supports Non-ECC, Un-buffered memory Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports CUDIMM
- USB Ports Supported : Rear: 1 x Thunderbolt 4 (USB Type-C) 2 x USB 10Gbps Type-A 2 x USB 5Gbps Type- A 4 x USB 2.0 Front: 1 x USB 10Gbps Type-C 4 x USB 5Gbps Type- A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : Quick Installation Guide EU Regulatory Notice EZ Wi-Fi Antenna 1 to 2 EZ Conn-Cable (V1) SATA Cable EZ M.2 Clip II EZ M.2 Clip II Remover
- #Hide#Max LAN Speed : 5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort 1 x Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs
- PCI/PCI Express : 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1
- RAM Speeds : Up to 8800MT/s (OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1, 5 and 10 for SATA storage devices
- . : 1 x Tuning Controller (JDASH) 2 x Addressable V2 RGB LED 1 x RGB LED 1 x TPM pin TPM 2.0 4 x USB 2.0 4 x USB 5Gbps Type-A 1 x USB 10Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Thunderbolt5 card (JTBT5, support RTD3) 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x Power (PCIE_PWR 8pin) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 4 x System Fan 1 x EZ Conn-header (JAF_1) 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Com Port
- Storage : 4 x SATA III 3 x M.2 M.2_1 (2280/2260) - PCIe 5.0 x4 M.2_2 (2280/2260/2242) - PCIe 4.0 x4 M.2_3 (2280/2260) - PCIe 4.0 x2

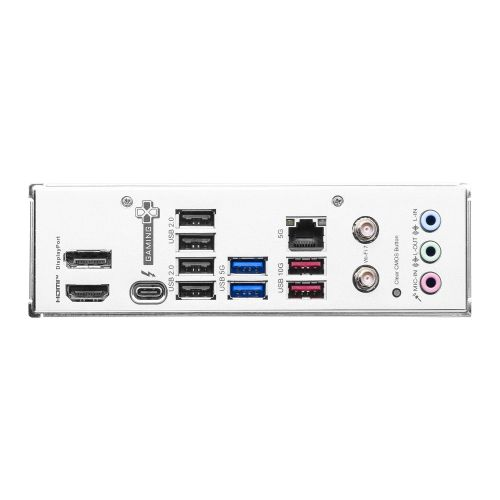

- Back Panel I/O Ports : 1 x Thunderbolt 4 (USB Type-C) 2 x USB 10Gbps Type-A 2 x USB 5Gbps Type- A 4 x USB 2.0 1 x DisplayPort 2.1 1 x HDMI 2.1 1 x RJ-45 1 x Audio Line In 1 x Audio Line Out 1 x Microphone In 2 x SMA Antenna
- LAN : 5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : Intel 1851
