MSI B850 GAMING PLUS WIFI, AMD B850, AM5, ATX, 4 DDR5, DP, Wi-Fi 7, 5G LAN, 3x M.2

2 sold in last 8 hours
My Store
MSIMBB850GAMPLUSWIFI-43775789
Out of stock
£791.78 £427.99
MSI B850 GAMING PLUS WIFI, AMD B850, AM5, ATX, 4 DDR5, DP, Wi-Fi 7, 5G LAN, 3x M.2 The B850 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

MSI B850 GAMING PLUS WIFI, AMD B850, AM5, ATX, 4 DDR5, DP, Wi-Fi 7, 5G LAN, 3x M.2

The B850 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience.

Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • High-speed Connectivity: 5G LAN with Full-speed Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience




Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
  • AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
  • AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
  • Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
  • AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.





12+2+1 DRPS Power Design
Unlock and maintain peak performance with the flagship VRM design featuring 12+2+1 digital power phases. Equipped with dual power connectors and a 60A Smart Power Stage, the B850 GAMING PLUS WIFI is fully prepared to handle the demands of high-end processors.





Optimised PCB
The PCB design has been optimised to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission.





Unleash World-Class DDR5 Performance
Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the B850 GAMING PLUS WIFI is primed to deliver world-class memory performance.





Frozr Cooling Design
  • Extended HeatsinksThe Extended Heatsink increases the surface area for heat dissipation, allowing even high-end processors to operate at full speed.
  • M.2 Shield Frozr - Achieve reliable operation and incredible performance with this strengthened M.2 thermal solution.
  • Heavy Plated VRM Heatsink - The upper MOS is protected with the VRM heatsink for efficient heat dissipation.
  • 7W/mK Thermal Pad - Premium 7W/mK MOSFET thermal pads and additional choke thermal pads guarantee all cores operate at peak performance.
  • Enlarged Chipset Heatsink - The enlarged heatsink design minimises dust and noise while ensuring efficient heat dissipation.




DIY 2.0
Connect and synchronise with MSI coolers and cases using strategically placed pin-header locations, including a dedicated pump-fan header.






Triple M.2 Slots
MSI utilises high-speed M.2 slots with PCIe Gen 4 and Gen 5 support, enabling faster load times and efficient data transfers for SSDs.






WiFi 7
The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.





High-Bandwidth, Low Latency LAN
MSI's premium 5G network solution provides incredible transfer speeds for demanding users.


Specifications:
- CPU Support : Click here for CPU support
- Wireless : Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
- Chipset : AMD B850
- RAM Technology : DDR5 (Dual Channel) Supports Non-ECC, Un-buffered memory Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports CUDIMM, Clock Driver bypass mode only
- USB Ports Supported : Rear: 2 x USB 10Gbps Type-C 1 x USB 10Gbps Type-A 1 x USB 5Gbps Type-A 4 x USB 2.0 Front: 1 x USB 5Gbps Type-C 4 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : Quick Installation Guide EU Regulatory Notice EZ Wi-Fi Antenna SATA Cable 3 x EZ M.2 Clip II EZ M.2 Clip II Remover 1 to 2 EZ Conn-Cable (V1)
- #Hide#Max LAN Speed : 5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 *Specifications may vary between CPU types
- RAM Speeds : Up to 8200+MT/s (OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0 and 1 for SATA storage devices Supports RAID 0 and 1 for M.2 NVMe storage devices
- . : 3 x Addressable V2 RGB LED 1 x RGB LED 1 x TPM pin TPM 2.0 4 x USB 2.0 4 x USB 5Gbps Type-A 1 x USB 5Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x Power (PCIE_PWR 8pin) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 4 x System Fan 1 x EZ Conn-header 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Com Port 1 x Tuning Controller
- Storage : 4 x SATA III 3 x M.2 Ryzen 9000 & 7000 Series CPUs: M.2_1 (2280/2260) - PCIe 5.0 x4 M.2_2 (22110/2280) - PCIe 4.0 x4 Ryzen 8000 Series CPUs: M.2_1 (2280/2260) - PCIe 4.0 x4 M.2_2 (22110/2280) - PCIe 4.0 x4 Chipset: M.2_3 (2280/2260) - PCIe 4.0 x2

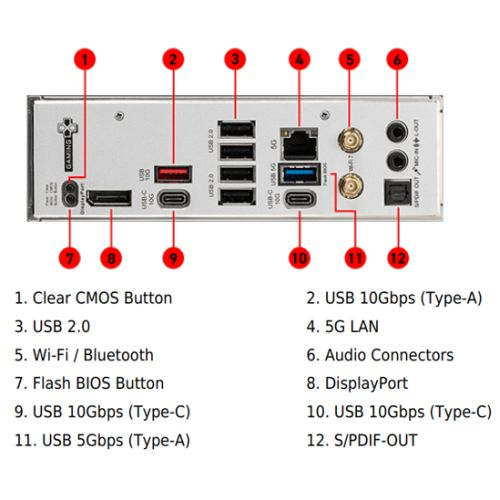

- Back Panel I/O Ports : 2 x USB 10Gbps Type-C 1 x USB 10Gbps Type-A 1 x USB 5Gbps Type-A 4 x USB 2.0 1 x DisplayPort 1.2 1 x RJ-45 1 x Audio Line Out 1 x Microphone In 1 x S/PDIF Optical Out 2 x SMA Antenna
- LAN : 5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : AMD AM5
