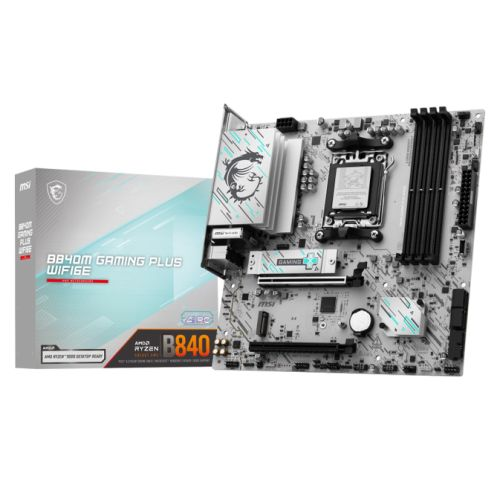

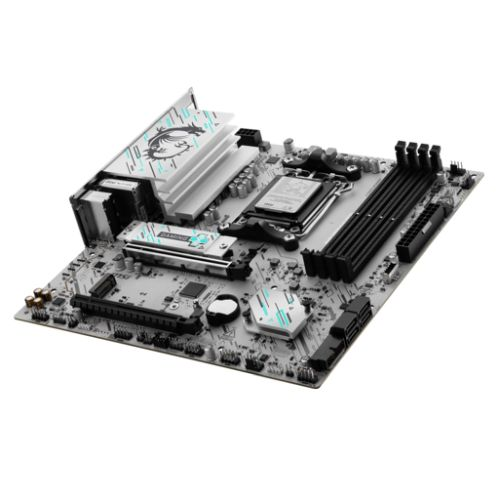

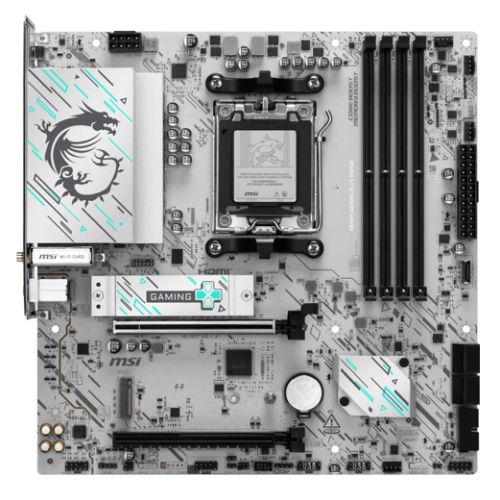

MSI B840M GAMING PLUS WIFI6E, AMD B840, AM5, Micro ATX, 4 DDR5, HDMI, Wi-Fi 6E, 2.5G LAN, 2x M.2

2 sold in last 8 hours
My Store
MSIMBB840GAMPLUSWIFI6E-43775692
Out of stock
£562.38 £303.99
MSI B840M GAMING PLUS WIFI6E, AMD B840, AM5, Micro ATX, 4 DDR5, HDMI, Wi-Fi 6E, 2.5G LAN, 2x M.2 The B840M GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Wi-Fi 6E, 2.5G LAN, PCIe 4.0 solution and...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

MSI B840M GAMING PLUS WIFI6E, AMD B840, AM5, Micro ATX, 4 DDR5, HDMI, Wi-Fi 6E, 2.5G LAN, 2x M.2

The B840M GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience.

Featuring Wi-Fi 6E, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
  • Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr II are built for high performance system and non-stop experience
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
  • High-speed Connectivity: Wi-Fi 6E with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience



Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
  • AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
  • AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
  • Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
  • AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.



Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

M.2 Shield FROZR

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

EZ PCIe Clip II

Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.

Extended Heatsink Design

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

Frozr AI Cooling

Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.

2.5G LAN

Onboard 2.5G LAN with LAN manager, delivering the best online gaming experience.

Wi-Fi 6E

The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.

Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience.





Specifications:
- CPU Support : Click here for CPU support
- Wireless : Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
- Chipset : AMD B840
- RAM Technology : DDR5 (Dual Channel) Supports Non-ECC, Un-buffered memory Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports CUDIMM, Clock Driver bypass mode only
- USB Ports Supported : Rear: 1 x USB 10Gbps Type-C 1 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 Front: 1 x USB 10Gbps Type-C 2 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : Quick Installation Guide EU Regulatory Notice EZ Wi-Fi Antenna SATA Cable EZ M.2 Clip II EZ M.2 Clip II Remove 1 to 2 EZ Conn-Cable (v1)
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI
- PCI/PCI Express : 1 x PCIe 4.0 x16 1 x PCIe 3.0 x4 *Specifications may vary between CPU types
- RAM Speeds : Up to 8000+MT/s (OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1 and 10 for SATA storage devices
- . : 1 x RGB LED 1 x TPM pin TPM 2.0 4 x USB 2.0 2 x USB 5Gbps Type-A 1 x USB 5Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 1 x Power (CPU_PWR) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 3 x System Fan 1 x EZ Conn-header (JAF_1) 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Com Port 1 x Tuning Controller 3 x Addressable V2 RGB LED
- Storage : 4 x SATA III 2 x M.2 M.2_1 (2280/2260) - PCIe 4.0 x4 M.2_2 (2280/2260) - PCIe 4.0 x4

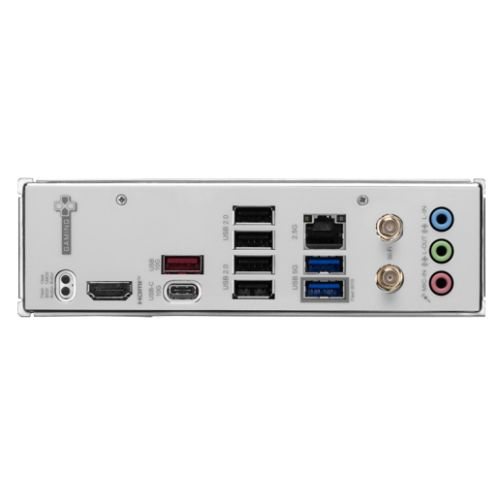

- Back Panel I/O Ports : 1 x USB 10Gbps Type-C 1 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 1 x HDMI 2.1 1 x RJ-45 1 x Audio Line In 1 x Audio Line Out 1 x Microphone In 2 x SMA Antenna
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : AMD AM5
