Description

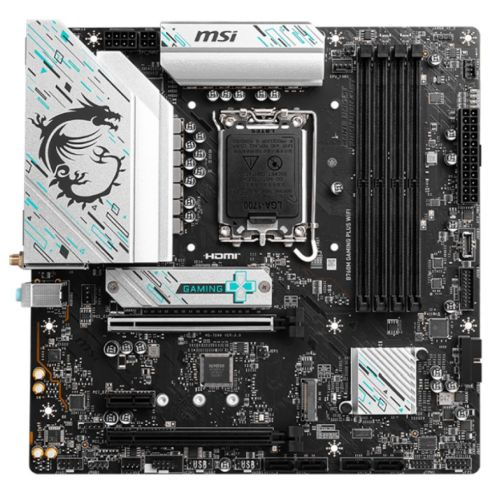

MSI B760M GAMING PLUS WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, 2 HDMI, 2 DP, Wi-Fi 6E, 2.5G LAN, 2x M.2

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience




Lightning Gen 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.



Reinforced, Heavy Soldered Connections
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.




Fast and Future-Ready Storage
B760M GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.




USB Front Type-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.





Latest DDR5 Memory with SMT Slot
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B760M GAMING PLUS WIFI motherboards are ready to deliver the world class memory performance.




Easy Overclocking with XMP Profile
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.




Memory Extension Mode
Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.




Extend Your RGB Experience with Ease
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.





High-Bandwidth and Low-Latency Network
MSI's premium network solution provides incredible data transfer speed for demanding users.
  • Wi-Fi 6E
  • Bluetooth 5.3
  • 2.5G LAN


Specifications:
- CPU Support : Click here for CPU support
- Wireless : Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA
- Chipset : Intel B760
- RAM Technology : DDR5 (Dual Channel) Supports non-ECC, un-buffered memory Supports Intel XMP 3.0 OC
- USB Ports Supported : Rear: 2 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 2 x USB 2.0 Front: 1 x USB 5Gbps Type-C 4 x USB 5Gbps Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : EU Regulatory Notice Quick Installation Guide 2 x M.2 Screw/Standoff Sets SATA Cable Wi-Fi Antenna I/O Shield
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 2 x HDMI 2 x DisplayPort
- PCI/PCI Express : 2 x PCIe 4.0 x16 1 x PCIe 3.0 x1
- RAM Speeds : Up to 6800+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1, 5 and 10 for SATA storage devices
- . : 4 x USB 2.0 4 x USB 5Gbps Type-A 1 x USB 5Gbps Type-C
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x Power (ATX_PWR) 2 x Power (CPU_PWR) 1 x CPU Fan 1 x Pump Fan 2 x System Fan 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Com Port 2 x Addressable V2 RGB LED 1 x RGB LED 1 x TPM pin TPM 2.0
- Storage : 4 x SATA III 2 x M.2 M.2_1 (2242/2260/2280) - PCIe 4.0 x4 M.2_2 (2242/2260/2280) - SATA & PCIe 4.0 x4

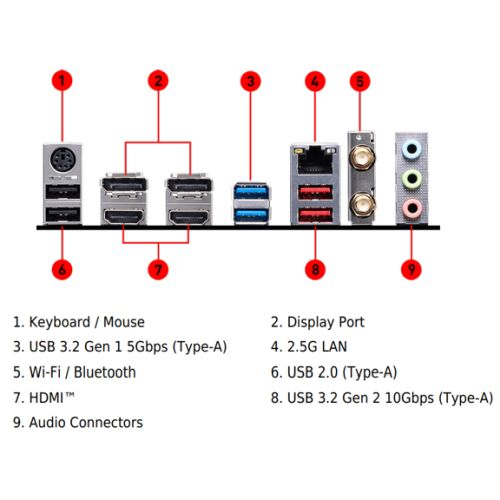

- Back Panel I/O Ports : 2 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 2 x USB 2.0 2 x DisplayPort 1.4 2 x HDMI 2.1 1 x PS/2 1 x RJ-45 1 x Audio Line In 1 x Audio Line Out 1 x Microphone In 2 x SMA Antenna
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Package Weight : To be confirmed
- Socket : Intel 1700
