Mercusys (MS108GP) 8-Port Gigabit Desktop Switch with 7-Port PoE+, Steel Case

2 sold in last 8 hours
My Store
SWI-8MERPOE-GB-43775465
Out of stock
£188.68 £101.99
Mercusys (MS108GP) 8-Port Gigabit Desktop Switch with 7-Port PoE+, Steel Case 8-Port Gigabit Desktop Switch with 7-Port PoE+   Full Gigabit Ports: 8x10/100/1000 Mbps RJ45 ports Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable High Power PoE+: Support PoE Power up to...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

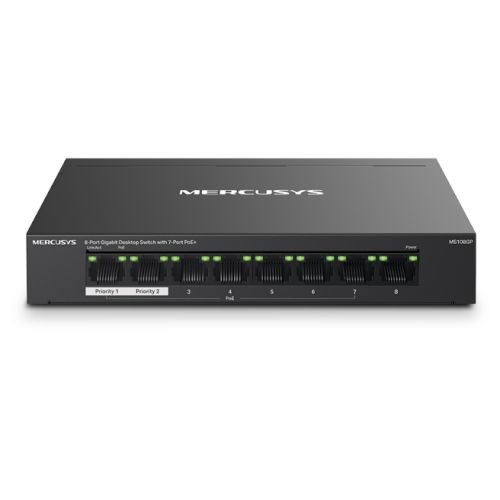

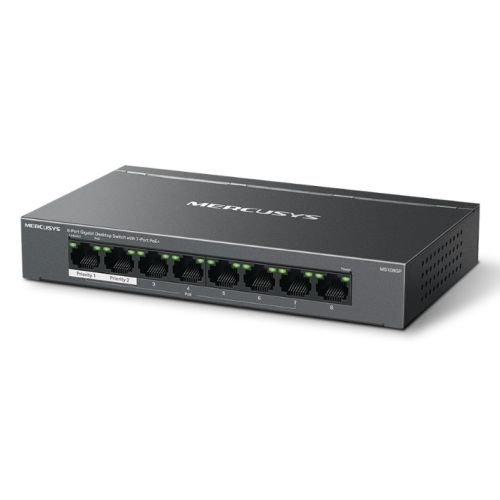

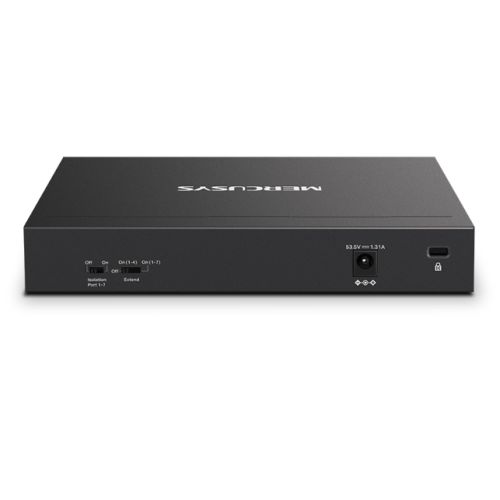

Mercusys (MS108GP) 8-Port Gigabit Desktop Switch with 7-Port PoE+, Steel Case

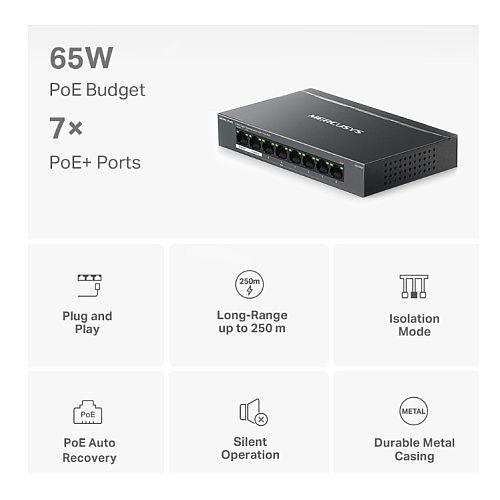

8-Port Gigabit Desktop Switch with 7-Port PoE+


  • Full Gigabit Ports: 8x10/100/1000 Mbps RJ45 ports
  • Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life
  • Plug and Play: Simple to use and saves time and effort





7 PoE+ Ports (65 W Budget) for Network Deployment
All eight ports of the MS108GP are gigabit ports, with seven PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.



Power over Ethernet: Two Cables in One
  • No Fuss - No need for electricians; simplify installation and deployment.
  • Cost-Efficiency - Getting rid of extra cables and power adapters will save money on infrastructure.
  • Flexibility - Deployment in complex situations is made possible by more placement possibilities.
  • Power Management - Improves power usage while intelligently protecting your gadgets from power surges.
  • IEEE 802.3af/at - PoE ports compliant with the 802.3af/at Powered Devices.


Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS108GP has 7 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Traffic Separation
With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection.




Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.




Plug and Play
MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

Durable and Silent
MS108GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.




Specifications:
- Warranty : 3 Years
- Dimensions : 171 x 98 x 27 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Compliant with 802.3 af/at Powered Devices PoE Ports: Port 1- Port 7 PoE Power Budget: 65 W
- Standards and Protocols : IEEE 802.3x Flow Control
- #Hide#POE : Yes
- Mac Address Table : 8K
- Power Supply : External Power Adapter (Output: 53.5V/1.31A)
- Package Type : Retail
- Package Contents : 8-Port Gigabit Desktop Switch (MS108GP) Power Adapter Quick Installation Guide
- Rackmountable : No
- Number of Ports : 8
- Interface(s) : 8 x 10/100/1000Mbps Ports
- Additional Features : See Overview
- Environment : perating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing
- Package Weight : 0.8400 kg
- Jumbo Frame : 15 KB
- Managed : No
