Be Quiet! (BL096) Silent Wings 4 140mm PWM Case Fan, Black, Up to 1100 RPM, Fluid Dynamic Bearing

2 sold in last 8 hours
My Store
CF140-BQSIL4-PWM-43775134
Out of stock
£122.08 £65.99
Be Quiet! (BL096) Silent Wings 4 140mm PWM Case Fan, Black, Up to 1100 RPM, Fluid Dynamic Bearing Silent Wings 4 140mm PWM combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.   Optimized fan blades for the highest performance on heat...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

Be Quiet! (BL096) Silent Wings 4 140mm PWM Case Fan, Black, Up to 1100 RPM, Fluid Dynamic Bearing

Silent Wings 4 140mm PWM combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.


  • Optimized fan blades for the highest performance on heat sinks
  • Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
  • Virtually inaudible operation at regular speed
  • 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
  • Anti-vibration mounting with push pins and screwed installation option
  • Super-long lifespan of up to 300,000h
  • Elegant look with high-grade fan sticker in an all-black design
  • 5-year manufacturer warranty
No Compromise Silence And Performance

Equally quiet and performant operation

Silent Wings 4 140mm PWM is the fan of choice for all possible operations. Be it in a case, on radiators or heat sinks – Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 140mm PWM a fan that makes no compromises between virtually inaudible operation and high performance.





Optimized For High-End Performance

Minimum tolerances for maximum air pressure

Silent Wings 4 140mm PWM makes for extraordinary air pressure and, therefore, significant increases in the system’s performance. The decreased distance between the fan blades and the frame makes it possible. By that, the Silent Wings 4 140mm PWM allows the user to run even the most demanding applications.

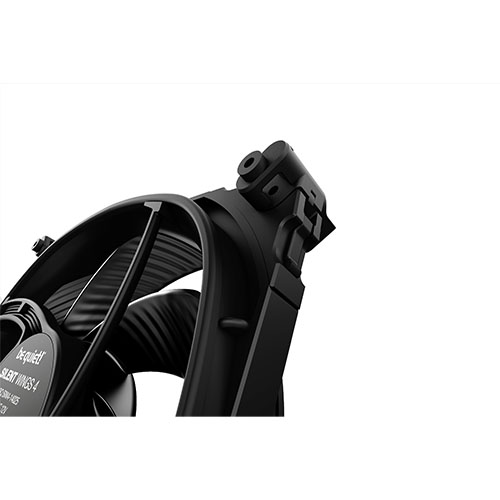

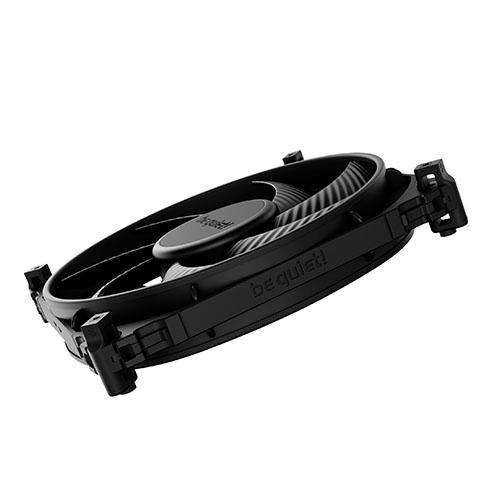

Different Mounting Options

For any purpose

Silent Wings 4 140mm PWM has 2 mounting options in the scope of delivery. The pre-installed anti-vibration mounting reduces noise-generating vibrations to a minimum. For radiators and heat sinks, the plastic mounting is the first choice. Both solutions have in common that they enable virtually inaudible operation at regular speed.




6-Pole Fan Motor

The key for virtually inaudible operation when needed

6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 13.6dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated
in mid-speed.




Fluid-Dynamic Bearing

For a sustainable operation

The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings 4 140mm PWM.





Elegant Look

Magnificent appearance from all angles

Be it as a radiator fan or in the case: Silent Wings 4 140mm PWM always makes a good impression. The all-black design combined with the high-grade fan sticker makes the fan shine in any system. This makes
Silent Wings 4 140mm PWM a high performant and an incredibly good-looking fan.





Specifications:
- #Hide#Colour : Black
- #Hide#Max RPM : 1100 RPM
- Installation : Push pins and screwed installation options
- Air Flow : 51.3 CFM @ 100% PWM / 12V
- Warranty : 5 Years
- #Hide#LED Lighting : No
- Dimensions : 140 x 140 x 25 mm
- Fan Bearing : Fluid Dynamic
- LED Lighting : -
- Fan Connector(s) : 4-pin
- Weight : 0.22 kg
- Fan Controller : PWM
- Rotation Speed : Up to 1100 RPM
- Colour : Black
- Noise level : 13.6 dB(A) @ 100% PWM / 12V
- MTBF : Up to 300,000 hours
- Package Type : Retail
- Type : 140mm Case Fan

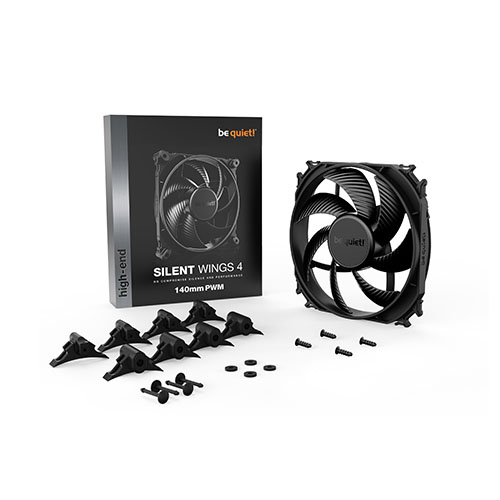

- Package Contents : Silent Wings 4 fan Rubber and hard plastic mounting Push-pins Fan screws Manual SATA multi-voltage adapter
- Additional Features : See Overview / Video
- Package Weight : 0.4000 kg
- Power : Rated Voltage DC: 12 V Operating Voltage DC: 5 - 13.2 V Current consumption: 0.30 A Safety current: 0.33 A Input power: 3.6 W
