Asus X870 MAX GAMING WIFI7 W, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 2.5G LAN, 3x M.2, White

2 sold in last 8 hours
My Store
AUMBX870MAXGAMINGW-43775248
Out of stock
£1,222.83 £660.99
Asus X870 MAX GAMING WIFI7 W, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 2.5G LAN, 3x M.2, White ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.   Boasting a robust power design, comprehensive cooling solutions and...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

Asus X870 MAX GAMING WIFI7 W, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 2.5G LAN, 3x M.2, White

ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.


Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  • Advanced AI PC-ready
  • 12+2+1 DrMOS
  • PCle 5.0 x16 slot
  • Full support for next-gen graphics cards
  • DDR5 slots
  • Three M.2 slots
  • Wi-Fi 7
  • Realtek 2.5Gb Ethernet
  • USB 40Gbps
  • HDMI
  • Front USB 20Gbps Type-C connector
  • SATA 6Gbps ports
  • PCIe Slot Q-Release and Aura Sync




AI Solutions
ASUS AI Solutions include ASUS AI Advisor as your technical expert with expertise in PC performance, AI Cooling II for automated temperature control.
  • ASUS AI Advisor - ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
  • AI Cooling II - Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.






Robust power design
Stable power is crucial for maximizing the performance of AMD processors. The X870 series is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
  • Eight-layer PCB design - The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
  • ProCool connectors - Proprietary 8 + 8 pin connectors improve PSU connection.
  • Digi+ VRM control - The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.





Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of X870 series motherboards. The X870 MAX GAMING WIFI7 W maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.2
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the X870 MAX GAMING WIFI7 W offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks3.






Three M.2 slots (up to 128 Gbps)
X870 MAX GAMING WIFI7 W offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives4.






Cooler by design
The X870 MAX GAMING WIFI7 W motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.






WiFi 7
The next-gen WiFi 76 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.





USB 40Gbps Type-C® ports
Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.






PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.






Personalization

The X870 series enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
  • UEFI BIOS - The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
  • ASUS GlideX - Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
  • ASUS DriverHub - Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
  • Armoury Crate - Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
  • Aura Sync - Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
  • Addressable RGB Gen 2 headers - Three Addressable RGB Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.






DIY friendly
The X870 series motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

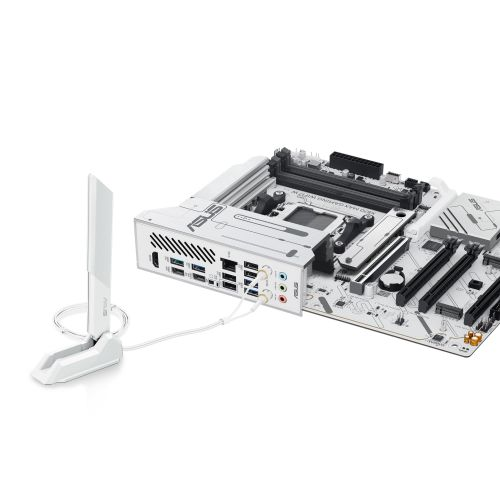

  • Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.5
  • PCIe Slot Q-Release - A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.
  • Q-LED Core - The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
  • Pre-Mounted I/O Shield - Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
  • BIOS FlashBack™ - BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button - no CPU or memory needed.
  • SafeSlot - PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.






Build for the most advanced pc for gaming and creating
When only the fastest will do, ASUS X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking7 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.










Specifications:
- CPU Support : Click here for CPU support
- Wireless : Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
- Chipset : AMD X870
- RAM Technology : DDR5 (Dual Channel) ECC and Non-ECC, Un-buffered Memory* Supports AMD EXPO ASUS Enhanced Memory Profile *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- USB Ports Supported : Rear: 2 x USB4 (40Gbps) Type-C 1 x USB 10Gbps Type-A 3 x USB 5Gbps Type-A 4 x USB 2.0 Front: 1 x USB 20Gbps Type-C 2 x USB 5Gbps 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD 1 x Quick start guide
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 2 x USB4 (40Gbps) support USB Type-C display outputs
- PCI/PCI Express : Ryzen 9000 & 7000 CPUs: 1 x PCIe 5.0 x16 (supports x16 mode) Ryzen 8000 CPUs: 1 x PCIe 4.0 x16 (supports x8/x4 mode) AMD X870 Chipset: 2 x PCIe 4.0 x16 (support x1 mode) 1 x PCIe 3.0 x16 (supports x1 mode)
- RAM Speeds : Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
- . : 1 x Clear CMOS 1 x Chassis Intrusion 1 x COM Port 1 x Front Panel Audio 1 x S/PDIF Out 1 x SPI TPM (14-1 pin) 1 x 10-1 pin System Panel
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x 24-pin Main 2 x 8-pin +12V CPU 3 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 20Gbps Type-C 1 x USB 5Gbps 2 x USB 2.0 3 x Addressable RGB Gen2
- Storage : 4 x SATA III 3 x M.2 Ryzen 9000 & 7000 CPUs: M.2_1 (2280) - PCIe 5.0 x4 M.2_2 (2242/2260/2280) - PCIe 4.0 x4 Ryzen 8000 CPUs: M.2_1 (2280) - PCIe 4.0 x4 M.2_2 (2242/2260/2280) - PCIe 4.0 x4/x2 X870E Chipset: M.2_3 (2280) - PCIe 4.0 x4

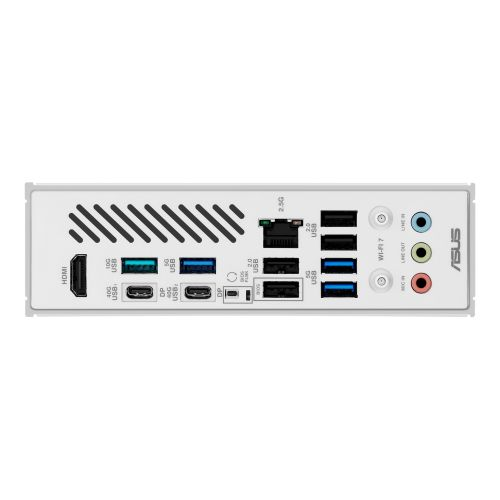

- Back Panel I/O Ports : 2 x USB4 (40Gbps) Type-C 1 x USB 10Gbps Type-A 3 x USB 5Gbps Type-A 4 x USB 2.0 1 x HDMI 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC
- Package Weight : 1.9650 kg
- Socket : AMD AM5
