Asus ROG STRIX B850-A GAMING WIFI, AMD B850, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, RGB, 4x M.2, White

Asus ROG STRIX B850-A GAMING WIFI, AMD B850, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, RGB, 4x M.2, White

Elevate your build with the ROG Strix B850-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, USB 20Gbps port, and WiFi 7, it's the ultimate blend of style and performance.

• Asus AI Advisor - Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
• AI Networking II - AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

• PBO Enhancement - AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

• DDR5 Domination - The Strix B850-A is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.
• AEMP - ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

• 14(80A)+2(80A)+2(80A) Power Stages - The VRM features 14+ 2+ 2 power stages, each rated to handle 80 amps
• Alloy Chokes and Durable Capacitors - Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
• Eight-Layer PCB - A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

• M.2 Backplate - An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.
• M.2 Heatsinks - Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
• VRM Heatsink Array - Two VRM heatsinks, one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high-performance AMD Ryzen 9000 Series processors
• High-conductivity Thermal Pads - High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
• CPU Fan Headers - A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.
• AIO Pump Fan Header - A dedicated PWM/DC header connects self-contained water-cooling setups.
• 4-Pin Fan Headers - The Strix B850-A features four chassis fan headers, each supporting auto-detection of PWM or DC fans.

• WIFI 7 - The revolutionary WiFi 7 is faster than standard WiFi 6*, thanks to tech like 160 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
• ASUS WiFi Q-Antenna - Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
• Intel 2.5Gb Ethernet - Onboard Intel 2.5Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
• PCIe 5.0 - Fully embracing the new standard, the Strix B850-A offers end-to-end PCIe 5.0 support.
• USB Ports - Supports total 17 USB ports including USB 20Gbps
• Dolby Atmos - ROG and Dolby have partnered to bring superior gaming audio quality to users. Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above, below and around the listener.
• SupremeFX - ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B850-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

• PCIe Slot Q-Release Slim - With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
• M.2 Q-Release - The M.2 heatsink features a convenient switch* to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
• M.2 Q-Slide - This new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.
• New M.2 Q-Latch - The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.
• Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
• Q-LED - The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices  are functioning normally during startup. Builders can use the Q-LED feature to correct power delivery issues affecting their motherboard, and it can also alert them when memory modules have not been properly installed--even before attempting to boot a newly built PC.
• Clear CMOS & BIOS FlashBack - The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

• BIOS Q-Dashboard - Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
• UEFI BIOS Full HD - The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

• TurboV Core - Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.
• Asus GlideX - ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.
• HWiNFO - HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.
• Asus Driver Hub - ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
• AIDA64 Extreme - The ROG Strix B850-A includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers.
• Armoury Crate - Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate's Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

• Undeniably ROG Strix - The ROG Strix B850-A stands out with its striking white PCB, offering a fresh and modern aesthetic that seamlessly complements almost any system build. The matching metallic heatsinks enhance its clean, crisp look, while subtle RGB lighting on the I/O shroud allows you to either maintain a sleek, understated appearance or showcase a bold, luminous design.
• Outshine The Competition - ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Specifications:
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- CPU Support : Click here for CPU support
- Wireless : Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4
- Chipset : AMD B850
- RAM Technology : DDR5 (Dual Channel) ECC and Non-ECC Un-buffered DIMM* Supports AMD EXPO ASUS AEMP *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- USB Ports Supported : Rear: 1 x USB 20Gbps Type-C 3 x USB 10Gbps (2 Type-A, 1 x Type-C) 4 x USB 5Gbps Type-A 2 x USB 2.0 Front: 1 x USB 10Gbps Type-C 2 x USB 5Gbps 4 x USB 2.0
- Accessories : 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubbers 1 x USB drive with utilities and drivers 1 x Quick start guide
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : Ryzen 9000 & 7000 Series CPUs: 1 x PCIe 5.0 x16 Ryzen 8000 Series CPUs: 1 x PCIe 5.0 x16 (supports PCIe 4.0 x8/x4 mode) AMD B850 Chipset: 1 x PCIe 4.0 x16 (supports x4 mode)
- RAM Speeds : Up to 8000+MT/s (OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by Ryzen 9000 CPUs
- . : 1 x CPU Over voltage jumper 1 x Front Panel Audio 1 x Power button 1 x 10-1 pin Front System Panel 1 x Thermal Sensor 1 x Thunderbolt (USB4)
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x 24-pin Main 2 x 8-pin +12V CPU 4 x M.2 (Key M) 2 x SATA 6Gb/s 1 x USB 10Gbps Type-C 1 x USB 5Gbps 2 x USB 2.0 3 x Addressable Gen2
- Storage : 2 x SATA III 4 x M.2 Ryzen 9000 & 7000 Series CPUs: M.2_1 (2242/2260/2280) - PCIe 5.0 x4 M.2_2 (2280/22110) - PCIe 4.0 x4 mode Ryzen 8000 Series CPUs: M.2_1 (2242/2260/2280) - PCIe 4.0 x4 M.2_2 (2280/22110) - PCIe 4.0 x4/x2 AMD B850 Chipset: M.2_3 (2280) - PCIe 4.0 x4 M.2_4 (2280) - PCIe 4.0 x4

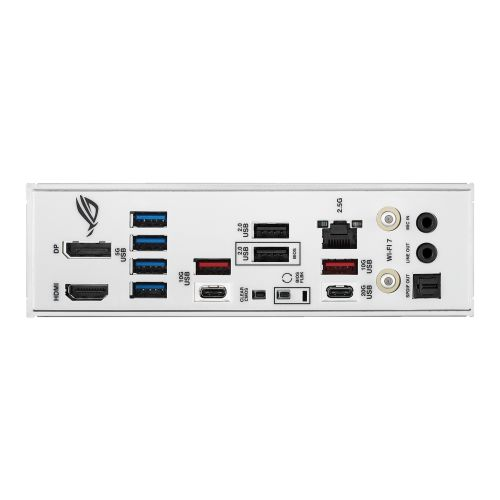

- Back Panel I/O Ports : 1 x USB 20Gbps Type-C 3 x USB 10Gbps (2 Type-A, 1 x Type-C) 4 x USB 5Gbps Type-A 2 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out 1 x BIOS FlashBack button 1 x Clear CMOS button
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Package Weight : 2.0400 kg
- Socket : AMD AM5
