Asus ROG CROSSHAIR X870E HERO BTF, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G & 2.5G LAN, RGB, 5x M.2 *Requires a BTF Compatible Chassis*

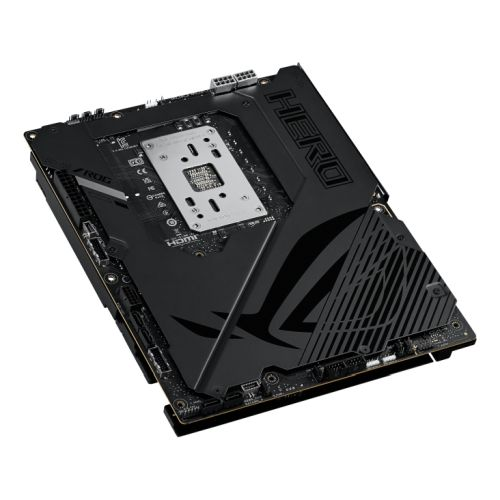

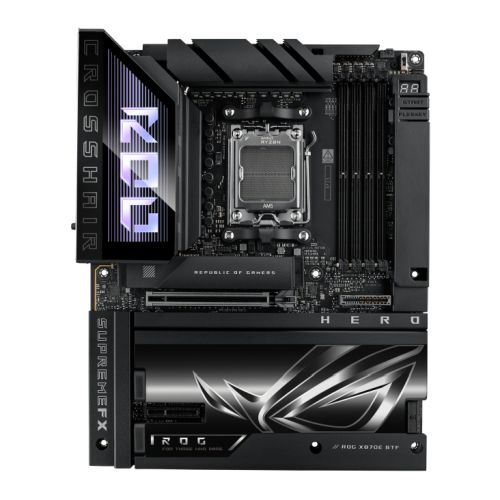

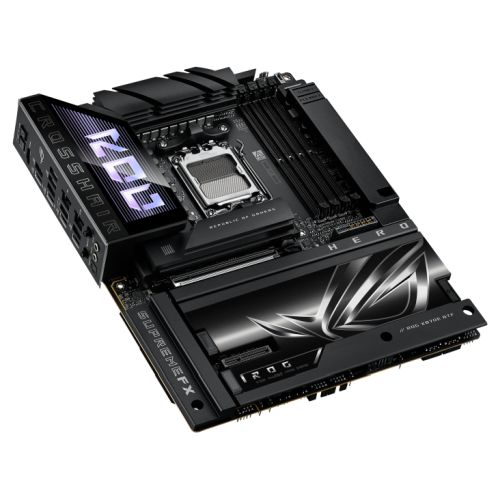

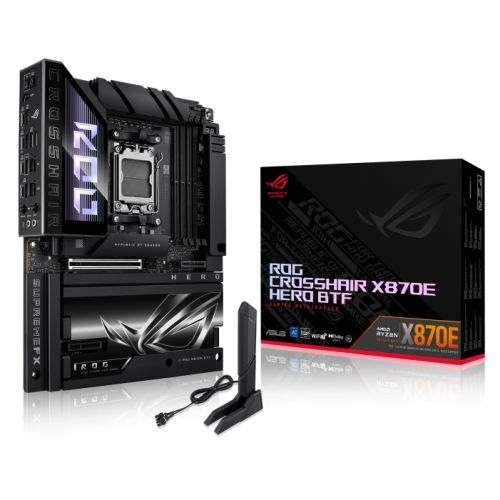

ROG Crosshair X870E Hero BTF

The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.


  • AMD X870E (AM5 Socket) ATX motherboard with a hidden-connector design and graphics card high-power slot for clean cable management
  • Advanced AI PC-ready
  • 18+2+2 power stages, Dynamic OC Switcher
  • Core Flex
  • DDR5 slots with AEMP & NitroPath DRAM Technology
  • Wi-Fi 7 with ASUS WiFi Q-Antenna
  • Five M.2 slots onboard
  • Three PCIe® 5.0 M.2 slots onboard
  • PCIe® 5.0 x16 SafeSlot with PCIe® Slot Q-Release Slim and full support for next-gen graphics card
  • Two USB4® ports
  • One USB 20Gbps Type-C® front-panel connectors
  • AI Overclocking
  • AI Cooling II
  • AI Networking II
  • Polymo Lighting II



Advanced BTF Design
With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.

Specifications:
- CPU Support : Click here for CPU support
- Wireless : Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth Bluetooth v5.4
- Chipset : AMD X870E
- RAM Technology : DDR5 (Dual Channel) ECC and Non-ECC, Un-buffered Memory Supports AMD EXPO NitroPath DRAM Technology ASUS Enhanced Memory Profile
- USB Ports Supported : Rear: 2 x USB4 (40Gbps) Type-C 8 x USB 10Gbps (6 Type-A + 2 Type-C) Front: 2 x USB 20Gbps Type-C 4 x USB 5Gbps 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 2 x USB4 (40Gbps) support USB Type-C display outputs
- PCI/PCI Express : 9000 & 7000 CPUs: 1 x PCIe 5.0 x16 (supports x16 or x8/x4/x4 modes) 8700 & 8600 & 8400 CPUs: 1 x PCIe 4.0 x16 (Total bandwidth for x8) 8500 & 8300: 1 x PCIe 4.0 x16 (Total bandwidth for x4) *specifications may vary between CPU types
- RAM Speeds : 8200+MT/s(OC) with Ryzen 9000 Series CPUs 8600+MT/s(OC) with Ryzen 8000 Series CPUs 8000+MT/s(OC) with Ryzen 7000 Series CPUs
- #Hide#No. LAN Ports : 2 x LAN
- Motherboard Type : Desktop
- RAID : Ryzen 9000 Series CPUs: RAID 0/1/5/10 Ryzen 8000 Series CPUs: RAID 0/1 Ryzen 7000 Series CPUs: RAID 0/1/10
- . : 1 x USB drive with utilities and drivers 1 x Quick start guide
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x W_PUMP+ 1 x 24-pin Main 2 x 8-pin +12V CPU 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary 5 x M.2 (Key M) 4 x SATA 6Gb/s 2 x USB 20Gbps Type-C
- Storage : 4 x SATA III 5 x M.2 Ryzen 9000 & 7000 CPUs: M.2_1 (2242/2260/2280) - PCIe 5.0 x4 M.2_2 (2242/2260/2280) - PCIe 5.0 x4 M.2_3 (2242/2260/2280) - PCIe 5.0 x4 Ryzen 8000 CPUs: M.2_1 (2242/2260/2280) - PCIe 4.0 x4 M.2_2 (2242/2260/2280) - not supported M.2_3 (2242/2260/2280) - not supported X870E Chipset: M.2_4 (2242/2260/2280) - PCIe 4.0 x4 M.2_5 (2280) - PCIe 4.0 x4

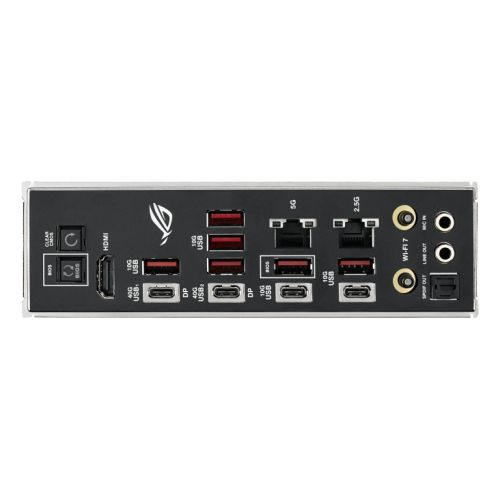

- Back Panel I/O Ports : 2 x USB4 (40Gbps) Type-C 8 x USB 10Gbps (6 Type-A + 2 Type-C) 1 x HDMI 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet 2 x Gold-plated audio jacks 1 x Optical S/PDIF out 1 x BIOS FlashBack button 1 x Clear CMOS button
- LAN : 5GB LAN & 2.5GB LAN
- Additional Features : NOTE: - This motherboard requires a chassis that is BTF compatible - This motherboard supports Advanced BTF graphics cards - Click here to learn more about Asus BTF
- Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Package Weight : To be confirmed
- Socket : AMD AM5
