Home Asus PROART B760-CREATOR, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub
81388252
81388250
81388251
81388248
81388249
-46%
Sold Out
81388252
81388250
81388251
81388248
81388249
Ask An Expert

Asus PROART B760-CREATOR, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub

2 sold in last 8 hours
My Store
AUMBB760APACRE-43775718
Out of stock
£863.93 £466.99
Asus PROART B760-CREATOR, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub       ProArt B760-Creator is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing.   It unleashes the performance of 13th & 12th...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

Asus PROART B760-CREATOR, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub

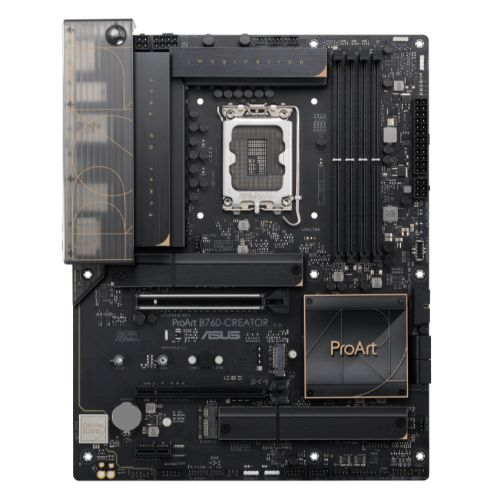

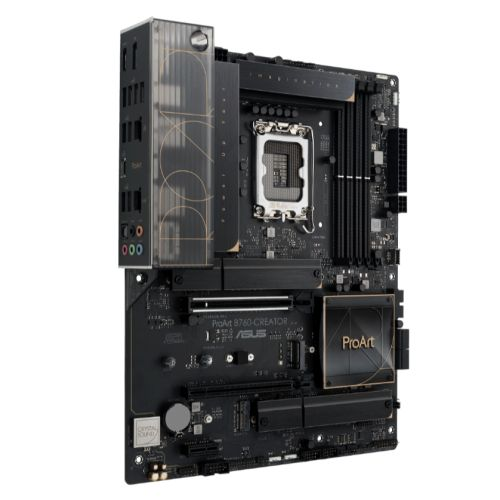

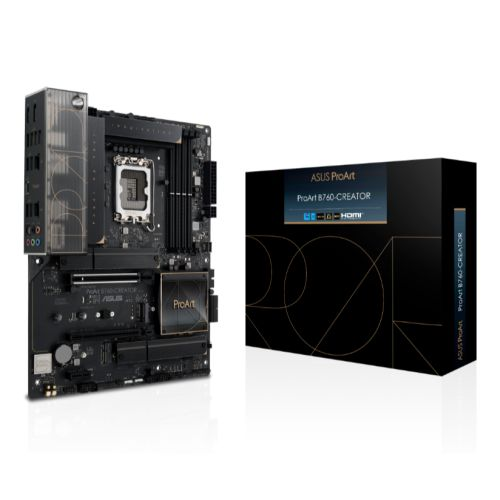

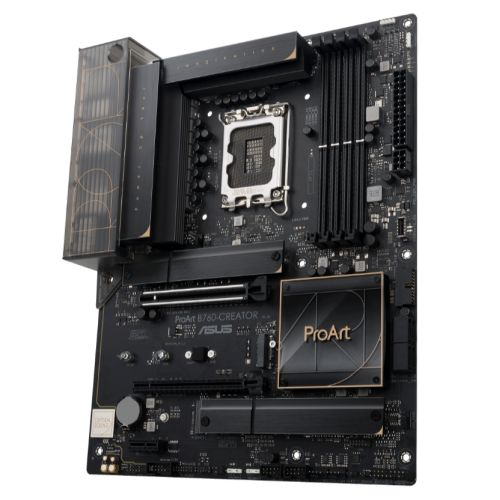

ProArt B760-Creator is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing.


It unleashes the performance of 13th & 12th Gen Intel Core processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector with 60W Quick Charge 4+ and a Thunderbolt 4 header.


  • DDR5 memory support
  • PCIe 5.0 for graphics cards
  • 2.5 GB & 1 GB Ethernet
  • USB 3.2 Gen 2 Type-C and a front-panel USB 3.2 Gen 2x2 Type-C connector with 60W Quick Charge 4+
  • 12+1 teamed power solution rated for 50A per stage
  • ProArt Creator Hub ProArt Creator Hub





Comprehensive Connectivity
PCIe 5.0 for graphics cards
The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.

USB 3.2 Gen 2x2 Type-C front-panel connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

Thunderbolt / USB4 support
The ProArt B760-Creator features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.






Networking

Dual Ethernet
2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.

ProArt B760-Creator features an M.2 slot (key E)
M.2 Slot (Key E)
The ProArt B760-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.

*WiFi/BT modules are sold separately.






PCIe 4.0 M.2 Storage
The ProArt B760-Creator features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.






Robust power design
12+1 teamed power stages
Rated for 50 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the demands of the latest 13th & 12th Gen Intel Core processors.

Chokes & capacitors
Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Digi+ power control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

ProCool power connectors
These components are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.






Memory
Unleash DDR5 with AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module's ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance._

Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.






Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.





Two-Way AI Noise Cancelation
As working from home has become the new normal for many users, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back, so your calls and video conferences with partners and clients can be crystal clear.





Customize your personal settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, quickly switching fan profiles and makes short work of switching between different performance modes.

Hardware monitoring
This section offers detailed info on your system status and connected ProArt devices.

Fan profile setting
Four performance presets can quickly adjust the balance of noise and cooling for all fans connected to the motherboard.

Task grouping
To streamline your workflow, you can select up to eight apps to be launched at the same time from the desktop.

Network optimization
CreationFirst is a network optimization application that offers five network modes to optimize bandwidth efficiency for different tasks.






Security control and remote management

Advanced security management functions from ASUS Control Center Express protects the systems and confidential data in your creative studio.


USB port management
Enable or disable the USB port or set it to Read-Only to prevent data leaks.

Software blacklist
For added security, a software blacklist is available to help prevent the use of high-risk applications.

Registry Editor on/off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.






Trusted stability
ProArt B760-Creator is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
  • 24/7 Reliability
  • 45°C Temperature
  • 168hr Durability test
  • 80% Relative humidity

Specifications:
- Accessories : 2 x SATA 6Gb/s cables 2 x M.2 Rubber packages 1 x Screw package for M.2 Key E 1 x ProArt ruler 1 x Q-connector 1 x ACC Express Activation Key Card 1 x User guide
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 5.0/4.0/3.0 x16 1 x PCIe 4.0 x16 (supports x4 mode) 1 x PCIe 3.0 x1
- RAM Speeds : Up to 7800+(OC)
- #Hide#No. LAN Ports : 2 x LAN
- Motherboard Type : Server / Workstation
- RAID : Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- . : 2 x USB 2.0 3 x Addressable Gen2 1 x AURA RGB 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio 1 x M.2 (Key E) 1 x SPI TPM (14-1pin) 1 x 20-5 pin System Panel 1 x Thermal Sensor 1 x Thunderbolt
- Graphics : Integrated Graphics* *Graphics specifications may vary between CPU types
- Package Type : Retail
- Form Factor : ATX
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel B760
- RAM Technology : DDR5 (Dual Channel)
- USB Ports Supported : Rear: 4 x USB 3.2 Gen1 Type-A ports 4 x USB 2.0 ports Front: 1 x USB 3.2 Gen1 header - supports 2 USB 3.2 Gen1 ports 2 x USB 2.0 headers - supports 4 USB 2.0 ports 1 x USB 3.2 Gen2x2 Type-C connector (60W PD/QC4+)
- RAM Slots : 4 x DIMM
- Maximum Memory : 192GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Internal I/O Connectors : 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x 4-pin +12V 1 x 6-pin PD_12V 3 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen2x2 Type-C (60W PD/QC4+) 1 x USB 3.2 Gen1
- Storage : 4 x SATA III 1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4 1 x M.2 (2242/2260/2280/22110) - PCIe 3.0 x4 1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4

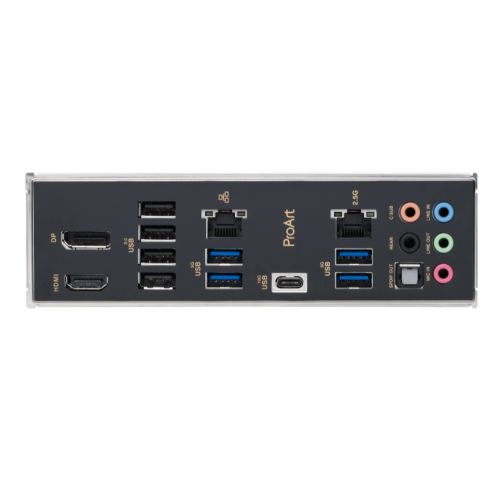

- Back Panel I/O Ports : 1 x USB 3.2 Gen2 Type-C 4 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x Realtek 2.5Gb Ethernet 1 x Intel 1Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out
- LAN : 2.5GB LAN & GB LAN
- Additional Features : See Overview
- Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC
- Package Weight : 2.1000 kg
- Socket : Intel 1700
