Asus PRO H610T-CSM - Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR5 SO-DIMM, HDMI, DP, LVDS, 19v DC in, 1x M.2
Subcribe to back in stock notification
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Covid-19 Shipping Delay Notice
Asus PRO H610T-CSM - Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR5 SO-DIMM, HDMI, DP, LVDS, 19v DC in, 1x M.2
Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability, and efficiency.
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Pro
- Optimize IT endpoint management - Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
- Automate IT maintenance - Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
- Securely manage all of endpoints - Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
- Asus Self-recovering BIOS: ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
- Trusted Platform Module(TPM): Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
- Certified NIST SP 800-147: ASUS Business motherboard is certified by the national computer security standards.
- Asus Secure Boot: Asus business motherboard is set to check the firmware and signature of each piece of boot software.
- Anti-moisture Coating: An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
- Anti-sulphur Resistors: Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.
- Stainless-Steel Back I/O: Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
- BIOS updates - Update status, latest version and update time
- AC power loss - Abnormal power loss events
- RTC reset - Time of real-time-clock (RTC) reset
- Chassis intrusion - Record of when chassis is opened
- Hardware changes - Modifications to CPU, memory or HDDs
- Hardware status - USB over current, CPU over temperature, and CPU over voltage events
- BIOS Value Edit Tool Customize the BIOS options
- BIOS Boot Logo Tool Brand your builds with a customized boot logo
- OEM Activation (OA) Tools Add or remove the OEM Activation key
- Desktop Management Interface (DMI) Easily add customer information, such as company name, to the BIOS
- Intel Management Engine (Intel ME) Driver Update the Management Engine without flashing the whole BIOS
- Q-LED Core - The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
- ASUS COM Debug Header - This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card.
- Box Headers - All USB headers are box style, enabling fast connector installation and preventing pin damage.
- Fixed-position Connectors - Connector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.
Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel H610
- RAM Technology : DDR5 SO-DIMM (Dual Channel) Non-ECC, Un-buffered Memory
- USB Ports Supported : Rear: 2 x USB 3.2 Gen2 Type-A 2 x USB 2.0 Front: 2 x USB 3.2 Gen1 5 x USB 2.0
- RAM Slots : 2 x SODIMM
- Maximum Memory : 64GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Thin Mini ITX
- Accessories : 2 x SATA 6Gb/s cables 1 x SATA power cable 2 x I/O Shields 1 x ACC Express Activation Key Card 1 x User guide
- #Hide#Max LAN Speed : GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5 SO-DIMM
- Graphics Ports : 1 x HDMI 1 x DisplayPort 1 x LVDS connector
- RAM Speeds : Up to 5600 MHz
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- . : 1 x Speaker 1 x SPI TPM (14-1pin) 1 x 10-1 pin System Panel
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x 4-pin CPU Fan 1 x 4-pin Chassis Fan 1 x 2-pin +19V 1 x SATA 1 x M.2 (Key M) 2 x SATA 6Gb/s 1 x USB 3.2 Gen1 2 x USB 2.0 1 x USB 2.0 1 x Stereo speaker 1 x DMIC 1 x Backlight inverter voltage selection
- Storage : 2 x SATA III 1 x M.2 (2260/2280) - SATA & PCIe 4.0 x4

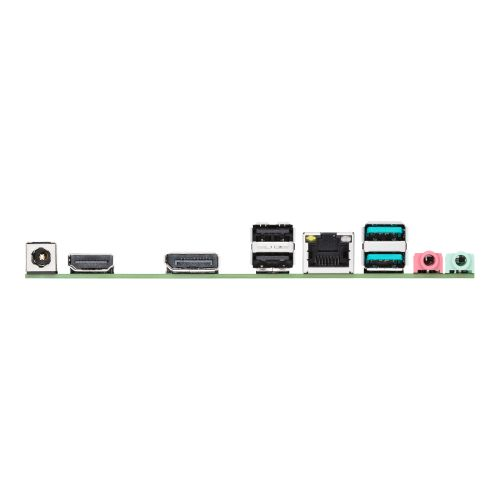

- Back Panel I/O Ports : 2 x USB 3.2 Gen2 2 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x Realtek 1Gb Ethernet 2 x Audio jacks 1 x DC Power Connector (Support 19V)
- LAN : GB LAN
- Additional Features : See Overview
- Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC
- Package Weight : 0.6800 kg
- Socket : Intel 1700
