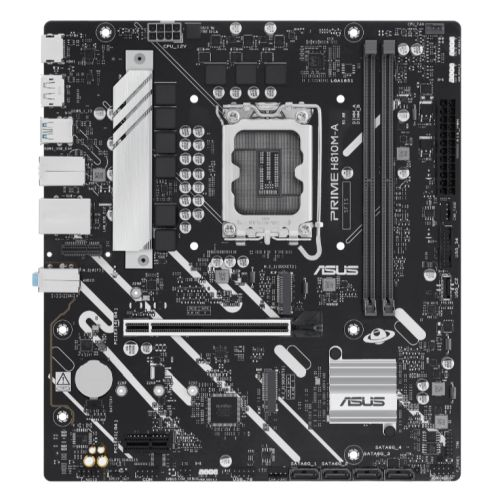

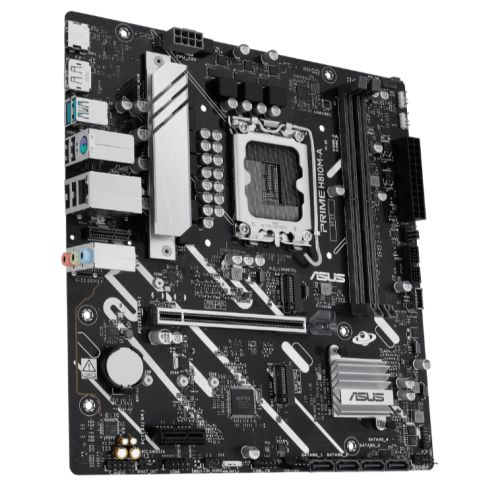

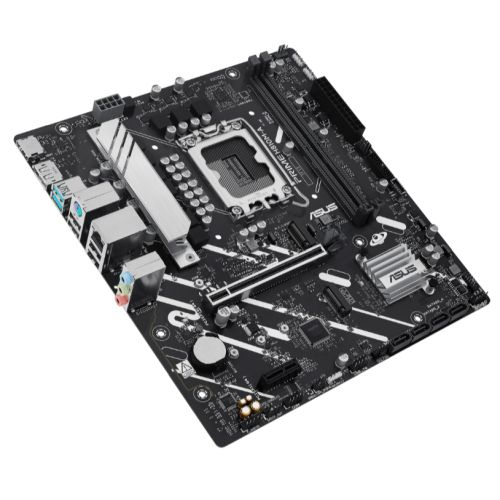

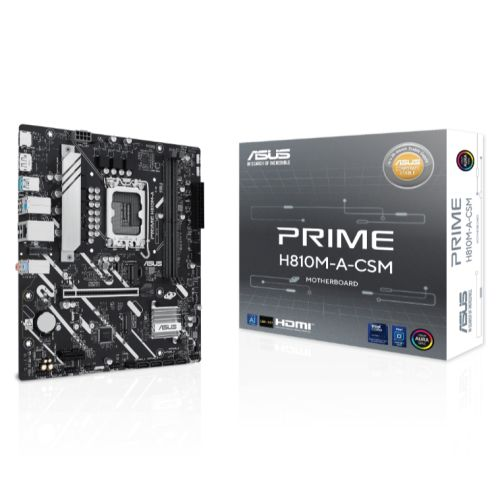

Asus PRIME H810M-A-CSM - Corporate Stable Model, Intel H810, 1851, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, 2x M.2

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2).

Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  • Intel® H810 LGA1851 micro-ATX motherboard
  • Advanced AI PC-ready
  • DDR5 slots
  • PCIe 4.0
  • DisplayPort
  • HDMI™
  • Rear USB 10Gbps
  • Front USB 5Gbps Type-C®
  • 2 x M.2 slots
  • Intel® 1Gb Ethernet
  • Aura Sync
  • ASUS Control Center Express


ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Learn more

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
  • Optimize IT endpoint management - Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.
  • Automate IT maintenance - Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.
  • Securely manage all of endpoints - Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.

Learn more





Performance
  • Digital Power Design - Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME H810M-A-CSM features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.
  • Power Saving - The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
  • Digi+ VRM control - The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.





Enhanced Memory & Storage Performance
  • DIMM Fit - DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.
  • Two M.2 slots (up to 64Gbps) - PRIME H810M-A-CSM offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.






Cooler by design
The PRIME H810M-A-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
  • ASUS Fan Xpert 2+ - ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.



Empowering connections
This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connection.
  • High Speed Transferring - Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB Type-A ports with transmission speeds of up to 10Gbps and a front USB Type-C® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.
  • Intel® 1 Gb Ethernet - Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.





Personalization
The PRIME H810M-A-CSM enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
  • UEFI BIOS - The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
  • ASUS DriverHub - Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
  • Armoury Crate - Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
  • Aura Sync - Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
  • Addressable Gen2 RGB headers - Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.





DIY friendly
The PRIME H810M-A-CSM motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
  • SafeSlot Core+ - SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
  • Q-LED Core - The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.





Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel H810
- RAM Technology : DDR5 (Dual Channel) Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* DIMM Fit Supports Intel XMP ASUS Enhanced Memory Profile III *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- USB Ports Supported : Rear: 2 x USB 10Gbps Type-A 4 x USB 2.0 Front: 1 x USB 5Gbps Type-C 2 x USB 5Gbps 2 x USB 2.0
- RAM Slots : 2 x DIMM
- Maximum Memory : 128GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : 2 x SATA 6Gb/s cables 1 x I/O shield 1 x Screw package for M.2 SSD 1 x ACC Express activation key card 1 x Quick start guide
- #Hide#Max LAN Speed : GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : Intel Core Ultra CPUs (Series 2): 1 x PCIe 4.0 x16 Intel B860 Chipset: 1 x PCIe 4.0 x1
- RAM Speeds : Up to 6400MT/s (OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- . : 1 x Front Panel Audio 1 x S/PDIF Out 1 x SPI TPM (14-1 pin) 1 x 10-1 pin Front Panel System
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x 4-pin CPU Fan 2 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V CPU 2 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 5Gbps Type-C 1 x USB 5Gbps 1 x USB 2.0 3 x Addressable Gen2 1 x Clear CMOS 1 x COM Port
- Storage : 4 x SATA III 2 x M.2 M.2_1 (2280) - PCIe 4.0 x4 M.2_2 (2242/2260/2280) - PCIe 4.0 x2

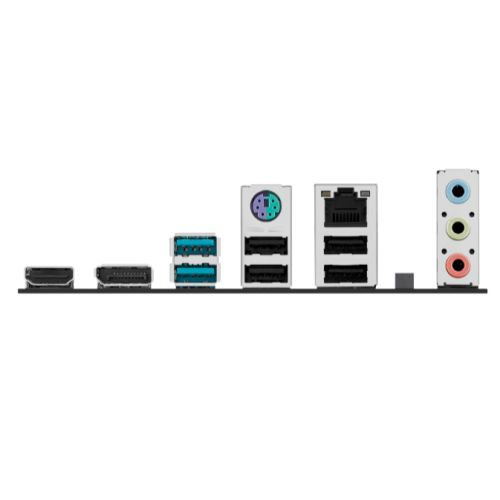

- Back Panel I/O Ports : 2 x USB 10Gbps Type-A 4 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x Vertical M.2 (Key E) 1 x Intel 1Gb Ethernet 3 x Audio jacks 1 x PS/2 keyboard/mouse combo
- LAN : GB LAN
- Additional Features : See Overview
- Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC
- Package Weight : 0.7800 kg
- Socket : Intel 1851
