Asus PRIME H610M-K, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, PCIe4, 1x M.2

2 sold in last 8 hours
My Store
AUMBH610MKPR-43775393
Out of stock
£412.53 £222.99
Asus PRIME H610M-K, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, PCIe4, 1x M.2 Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM header, RGB header Intel® LGA 1700 Socket: Ready for 13th...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

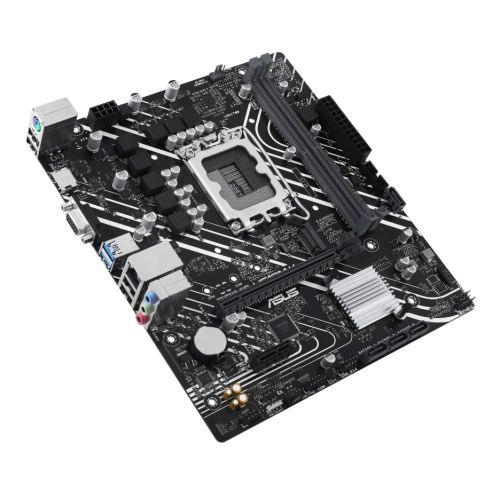

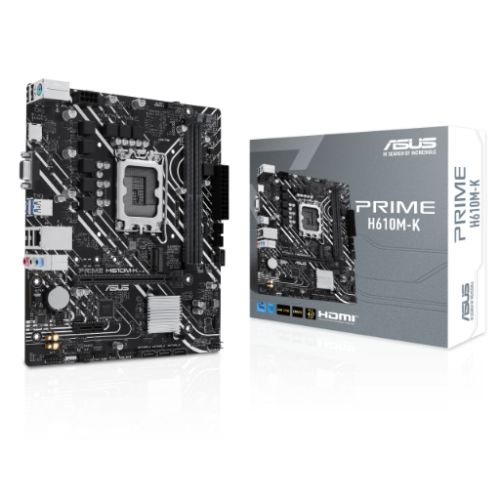

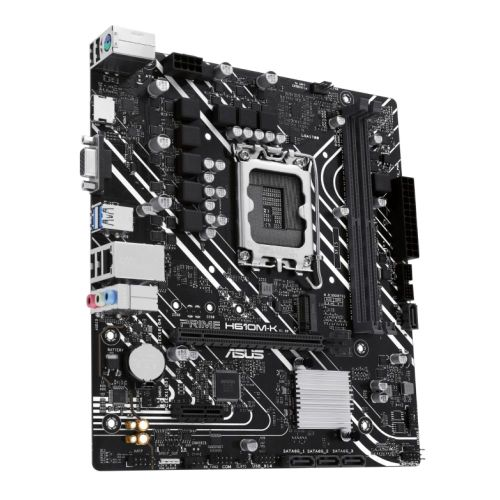

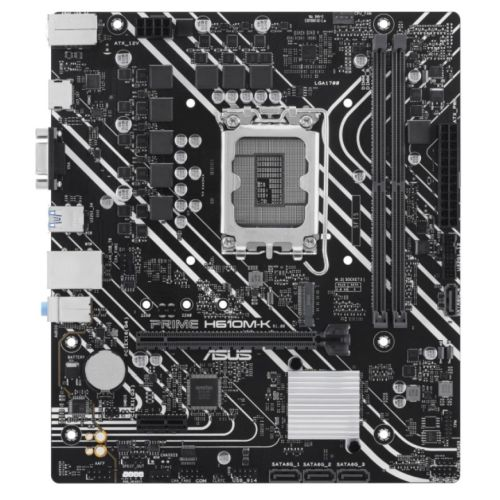

Asus PRIME H610M-K, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, PCIe4, 1x M.2

Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM header, RGB header

  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
  • Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
  • 5X Protection III: Multiple hardware safeguards for all-round protection



Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.


Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.



Performance

Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

DDR5 Performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME H610M-K, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. For those who want to fly past stock DDR5 speeds, the PRIME H610M-K is primed and ready for enthusiast-grade kits courtesy of Intel® Extreme Memory Profile (XMP) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

M.2 slot (up to 32 Gbps)


PRIME H610M-K offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

Customisation


Prime H610 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.


DIY Friendly
  • Q-LED Core - The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
  • Fortified PCIe slot prevents damage - SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.



Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel H610
- RAM Technology : DDR5 (Dual Channel) Non-ECC, Un-buffered Memory* Supports Intel XMP * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- USB Ports Supported : Rear: 2 x USB 5Gbps Type-A 4 x USB 2.0 Front: 2 x USB 5Gbps 2 x USB 2.0
- RAM Slots : 2 x DIMM
- Maximum Memory : 96GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Anchor 1 x User guide
- #Hide#Max LAN Speed : GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x VGA 1 x HDMI
- PCI/PCI Express : 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1
- RAM Speeds : 5600/5400/5200/5000/4800 MHz
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- . : 1 x S/PDIF Out 1 x Speaker 1 x SPI TPM (14-1pin) 1 x 10-1 pin System Panel
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x 4-pin CPU Fan 2 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 1 x USB 2.0 1 x RGB 1 x Clear CMOS 1 x Front Panel Audio 1 x COM Port
- Storage : 4 x SATA III 1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
- Back Panel I/O Ports : 2 x USB 5Gbps Type-A 4 x USB 2.0 1 x VGA 1 x HDMI 1 x Realtek 1Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo
- LAN : GB LAN
- Additional Features : See Overview
- Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC
- Package Weight : 0.8540 kg
- Socket : Intel 1700
