Description

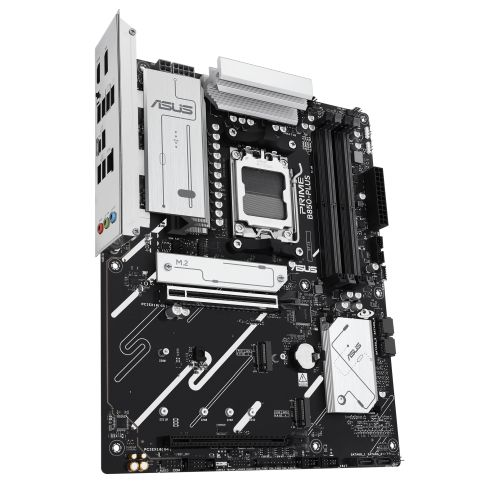

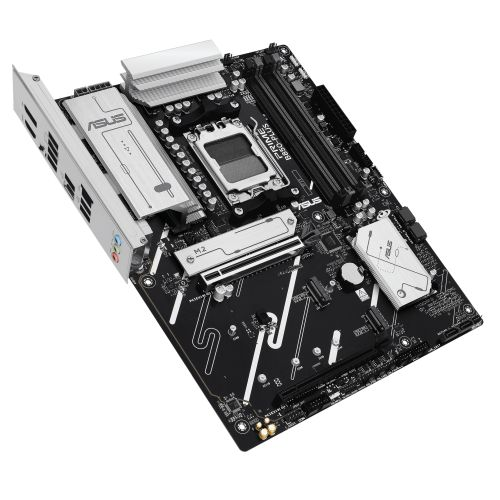

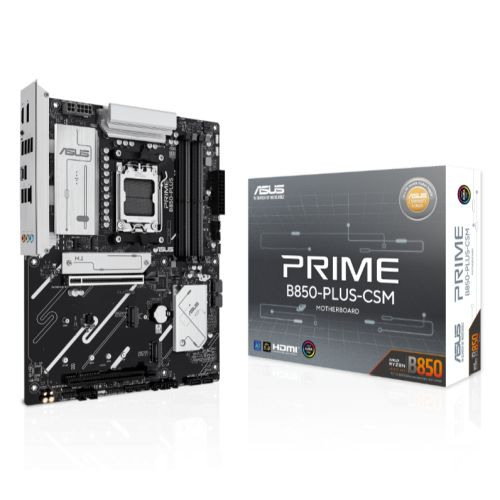

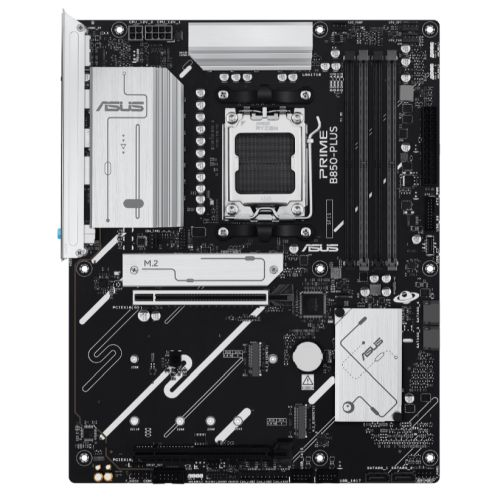

Asus PRIME B850-PLUS-CSM - Corporate Stable Model, AMD B850, AM5, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, 3x M.2

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.

The PRIME B850-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  • AMD B850 ATX motherboard
  • DDR5
  • PCIe 5.0 Ready
  • Three M.2 slots
  • Realtek 2.5Gb Ethernet
  • DisplayPort
  • HDMI
  • Rear USB 10Gbps Type-A & Type-C support
  • BIOS FlashBack
  • Aura Sync
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Learn more

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
  • Optimize IT endpoint management - Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.
  • Automate IT maintenance - Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.
  • Securely manage all of endpoints - Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.

Learn more





AI Solutions
  • AI Advisor - ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.





Performance
  • Robust power design - PRIME B850-PLUS-CSM features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
  • Six-layer PCB design - The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
  • Power Saving - The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
  • Digi+ VRM control - The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
Enhanced Memory & Storage Performance
  • Enhanced DDR5 Performance - Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B850-PLUS-CSM maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits. For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance. For those looking to surpass stock DDR5 speeds, the PRIME B850-PLUS-CSM offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.
  • Three M.2 slots (up to 128 Gbps) - PRIME B850-PLUS-CSM offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, and two that support PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.





Cooler by design
The PRIME B850-PLUS-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
  • ASUS Fan Xpert 2+ - ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.



Empowering connections



This motherboard offers a versatile range of connectivity, including support for PCIe 5.0 slot and an arsenal of USB ports which includes Type-C® connections.
  • Realtek 2.5 Gb Ethernet - Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
  • USB 10Gbps Type-C® - A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C® connector with ultrafast USB 10Gbps for transmission speeds of up to 10Gbps





Personalization
The PRIME B850-PLUS-CSM enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
  • UEFI BIOS - The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
  • ASUS GlideX - Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
  • ASUS DriverHub - Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
  • Armoury Crate - Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
  • Aura Sync - Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
  • Addressable Gen2 RGB headers - Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.






DIY friendly
The PRIME B850-PLUS-CSM motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
  • Q-LED Core - The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
  • Pre-mounted I/O shield - Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
  • BIOS FlashBack™ - BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.
  • SafeSlot - PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
Build for the most advanced pc for gaming and creating
When only the fastest will do, ASUS motherboards deliver. With faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.





Specifications:
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : AMD B850
- RAM Technology : DDR5 (Dual Channel) ECC and Non-ECC Un-buffered DIMM* Supports AMD EXPO ASUS AEMP *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- USB Ports Supported : Rear: 4 x USB 10Gbps (3 Type-A, 1 x Type-C) 2 x USB 5Gbps Type-A 2 x USB 2.0 Front: 1 x USB 5Gbps Type-C 2 x USB 5Gbps 6 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- PCI/PCI Express : Ryzen 9000 & 7000 Series CPUs: 1 x PCIe 5.0 x16 (supports x16 mode) Ryzen 8000 Series CPUs: 1 x PCIe 4.0 x16 (supports x8/x4 mode) AMD B850 Chipset: 1 x PCIe 4.0 x16 (support x4 mode)
- RAM Speeds : Up to 8000+MT/s (OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
- . : 3 x Addressable RGB Gen2 1 x Clear CMOS 1 x Chassis Intrusion 1 x COM Port 1 x Front Panel Audio 1 x S/PDIF Out 1 x SPI TPM (14-1 pin) 1 x 10-1 pin System Panel 1 x Thunderbolt (USB4)
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V CPU 1 x 4-pin +12V CPU 3 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 5Gbps Type-C 1 x USB 5Gbps 4 x USB 2.0
- Storage : 4 x SATA III 3 x M.2 Ryzen 9000 & 7000 Series CPUs: M.2_1 (2280) - PCIe 5.0 x4 M.2_2 (2280) - PCIe 4.0 x4 Ryzen 8000 Series CPUs: M.2_1 (2280) - PCIe 4.0 x4 M.2_2 (2280) - PCIe 4.0 x4/x2 AMD B850 Chipset: M.2_3 (2242/2260/2280/22110) - PCIe 4.0 x2

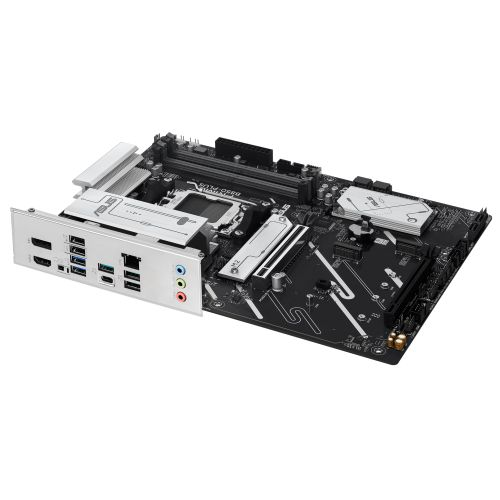

- Back Panel I/O Ports : 4 x USB 10Gbps (3 Type-A, 1 x Type-C) 2 x USB 5Gbps Type-A 2 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC
- Package Weight : 1.2400 kg
- Socket : AMD AM5
