Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

2 sold in last 8 hours
My Store
AUMBB760PLPR-43775534
Out of stock
£519.83 £280.99
Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2 ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®,...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware




                                             ** Click here for full product details **

Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel B760
- RAM Technology : DDR5 (Dual Channel) Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II
- USB Ports Supported : Rear: 1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Front: 1 x USB 3.2 Gen1 Type-C 2 x USB 3.2 Gen1 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 192GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD 1 x User guide
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x VGA 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (supports x4 mode) 2 x PCIe 3.0 x1
- RAM Speeds : Up to 7200+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- . : 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio 1 x S/PDIF Out 1 x SPI TPM (14-1pin) 1 x 20-3 pin System Panel 1 x Thunderbolt (USB4)
- Graphics : Integrated Graphics* *Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x 4-pin CPU Fan 1 x 4-pin AIO Pump 3 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 3 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 Type-C 1 x USB 3.2 Gen1 2 x USB 2.0 3 x Addressable Gen2 1 x Aura RGB
- Storage : 4 x SATA III 1 x M.2 (2242/2260/2280) - PCIe 4.0 x4 1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4 1 x M.2 (2242/2260/2280) - PCIe 4.0 x2

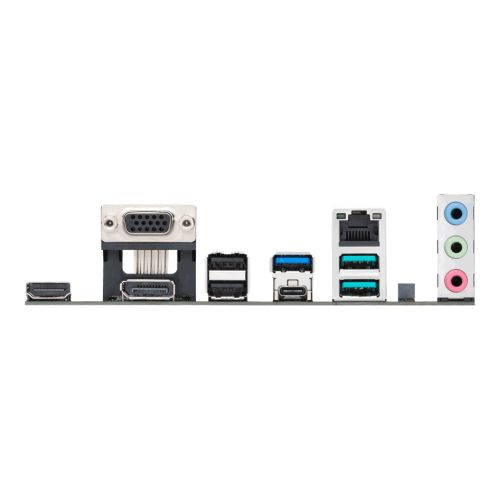

- Back Panel I/O Ports : 1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x DisplayPort 1 x VGA 1 x HDMI 1 x Vertical M.2 (Key E) 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC
- Package Weight : 1.3100 kg
- Socket : Intel 1700
