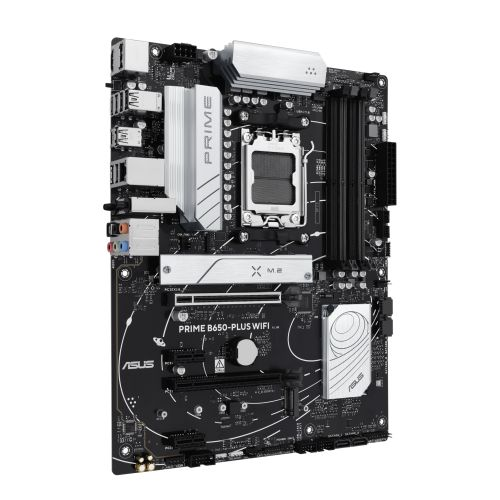

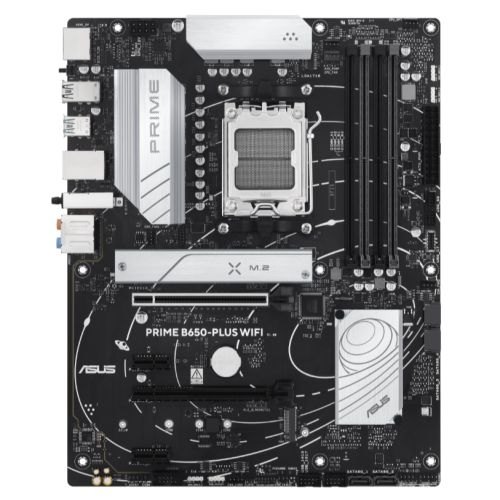

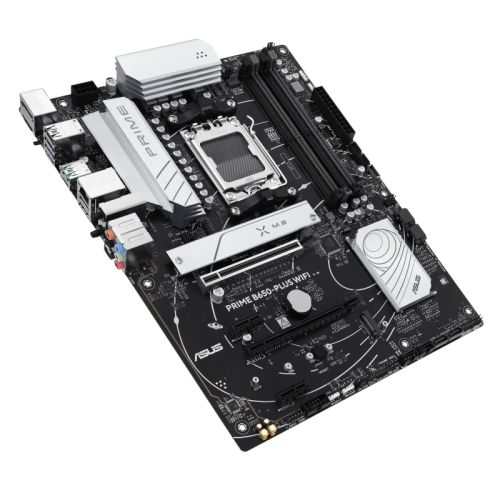

Asus PRIME B650-PLUS WIFI, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 2x M.2

Asus PRIME B650-PLUS WIFI, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 2x M.2

AMD B650 ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, WIFI 6E, DisplayPort, HDMI™, SATA 6 Gbps, USB 10Gbps Type-C®,front USB 5Gbps Type-C®, BIOS FlashBack™, Thunderbolt™ 4 header, AURA Sync

• AMD AM5 Socket: Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C®, front USB 5Gbps Type-C®, Thunderbolt™ 4 header support
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware



Flexibility

• CPU Performance Boost - AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
• All-Around Energy Efficiency - The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
• Flexible Air- and Liquid-Cooling Controls - ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, AiO coolers can also be controlled via the UEFI BIOS.
• Precise Digital Power Control - The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

• M.2 Heatsink - The M.2 heatsink is flexible, which can take care of the M.2_1 or M.2_2 slot, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
• VRM Heatsinks and Thermal Pads - VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
• Cooler by Design - Prime B650 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
• Multiple Temperature Sources - Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
• AIO Pump Header - A dedicated PWM/DC header for self-contained water-cooling setups.
• Smart Protection - A dedicated integrated circuit protects each fan header from overheating and overcurrent.
• 4-Pin PWM/DC Fan - Each onboard header supports auto-detection of PWM or DC fans.

• Combined onboard features deliver elevated audio - Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
• Outshine the Competition - A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
• Addressable Gen 2 Headers - Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
• Armoury Crate - Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.
• Q-LED Core - The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
• BIOS FlashBack™ - BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without a memory or a CPU installed.
• SafeSlot Core+ - SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.



Specifications:
- CPU Support : Click here for CPU support

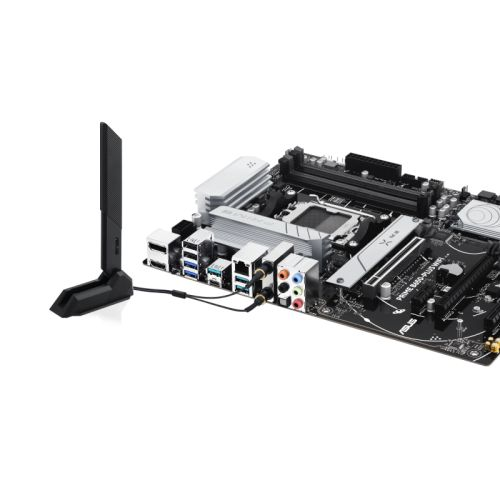

- Wireless : Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3
- Chipset : AMD B650
- RAM Technology : DDR5 (Dual Channel) Non-ECC, Un-buffered Memory* Supports AMD EXPO OptiMem II *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- USB Ports Supported : Rear: 4 x USB 10Gbps (3 Type-A, 1 x Type-C) 2 x USB 5Gbps Type-A 2 x USB 2.0 Front: 1 x USB 5Gbps Type-C 2 x USB 5Gbps 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 192GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX

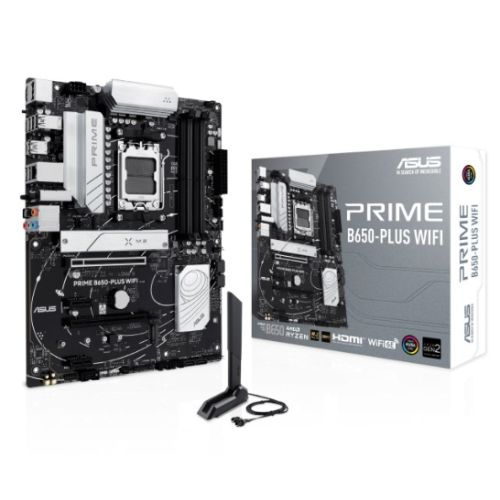

- Accessories : 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x Wi-Fi moving antenna 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x User guide
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Years
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : Ryzen 9000 & 7000 Series CPUs: 1 x PCIe 4.0 x16 (supports x16 mode) Ryzen 8000 Series CPUs: 1 x PCIe 4.0 x16 (supports x8/x4 mode) AMD B650 Chipset: 1 x PCIe 4.0 x16 (supports x4 mode) 2 x PCIe 4.0 x1
- RAM Speeds : Up to 7600+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
- . : 1 x Aura RGB 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio 1 x SPI TPM (14-1pin) 1 x 20-3 pin System Panel 1 x Thunderbolt (USB4)
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 3 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 2 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 5Gbps Type-C 1 x USB 5Gbps 2 x USB 2.0 3 x Addressable Gen2
- Storage : 4 x SATA III 2 x M.2 Ryzen 9000 & 7000 Series CPUs: M.2_1 (242/2260/2280/22110) - PCIe 5.0 x4 M.2_2 (2242/2260/2280/22110) - PCIe 4.0 x4 Ryzen 8000 Series CPUs: M.2_1 (2242/2260/2280) - PCIe 4.0 x4 M.2_2 (2242/2260/2280/22110) - PCIe 4.0 x4/x2

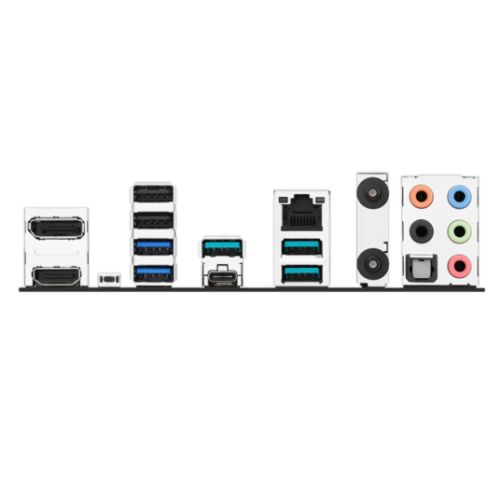

- Back Panel I/O Ports : 4 x USB 10Gbps (3 Type-A, 1 Type-C) 2 x USB 5Gbps Type-A 2 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out 1 x BIOS FlashBack button
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC
- Package Weight : 1.5270 kg
- Socket : AMD AM5
