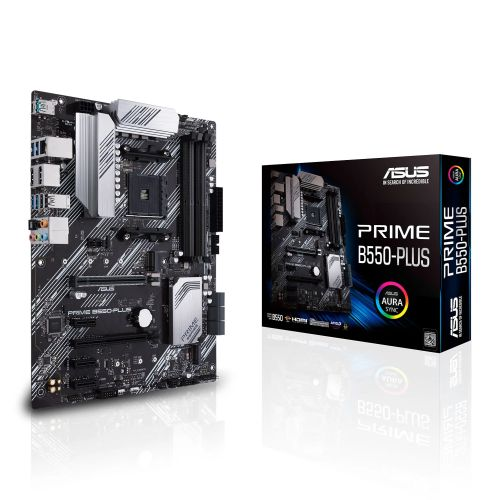

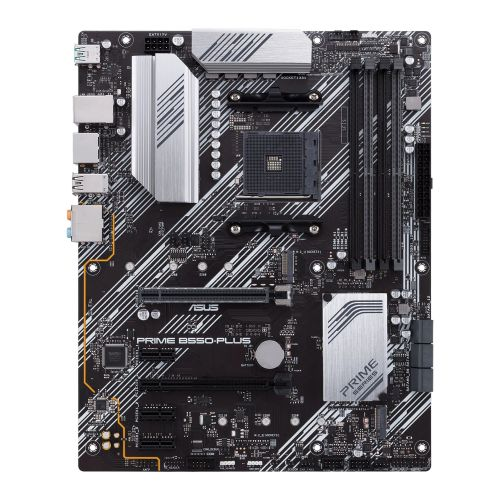

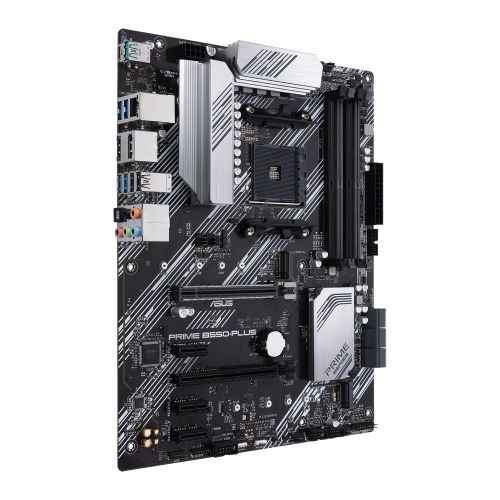

Asus PRIME B550-PLUS, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, M.2

2 sold in last 8 hours
My Store
AUMBB550PLUS-PRIME-43775304
Out of stock
£506.88 £273.99
Asus PRIME B550-PLUS, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, M.2 AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support AMD AM4 socket: Ready for...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

Asus PRIME B550-PLUS, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, M.2

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support

  • AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
  • Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
  • Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
  • Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware



Prime

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.





Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.





Cool to the Core

Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.





VRM Heatsink and Thermal Pads

A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance.





Build on a Solid Foundation

Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





PCIe 4.0 M.2 (up to 64 Gbps)

Achieve speed with onboard M.2
PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.





Little Things Make a Big Difference

Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.






Outstanding Audio

Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths.

Premium Japanese Capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.

Specifications:

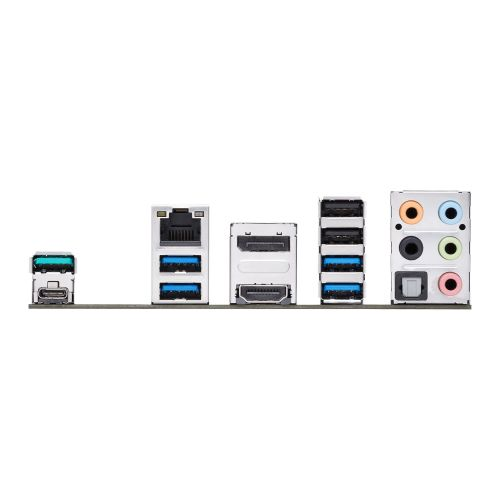

- Back Panel I/O Ports : 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 2 x USB 3.2 Gen2 (Type-A & Type-C) 4 x USB 3.2 Gen1 (Type-A) 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jacks
- LAN : GB LAN
- Additional Features : See Overview
- Audio : Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Package Weight : 1.3500 kg
- Socket : AMD AM4
- Storage : 6 x SATA III 2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
- CPU Support : Click here for CPU support *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
- Wireless : -
- Chipset : AMD B550
- RAM Technology : DDR4 (Dual Channel)
- USB Ports Supported : 2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back) 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board) 6 x USB 2.0 (2 at back, 4 at mid-board)
- RAM Slots : 4 x DIMM
- Maximum Memory : 128GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : I/O Shield 2 x SATA 6Gb/s cables 1 x M.2 SSD screw package
- Multi-GPU Support : Supports AMD 2-Way CrossFireX Technology
- Warranty : 3 Years
- #Hide#DDR Type : DDR4
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
- RAM Speeds : 3rd Gen AMD Ryzen CPUs: 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Next Gen AMD Ryzen PRO CPUs: 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : RAID 0, 1, 10
- . : 1 x 24-pin EATX 1 x 8-pin EATX 12V 1 x Front audio 1 x Thermal sensor 1 x Clear CMOS 1 x System panel 1 x COM port
- Graphics : Integrated Graphics Processor* Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x CPU Fan 1 x CPU OPT Fan 3 x Chassis Fan 1 x AIO_PUMP 2 x Aura RGB Strip 1 x Addressable Gen2 1 x USB 3.2 Gen1 2 x USB 2.0 2 x M.2 Socket 3 with M key 1 x SPI TPM 6 x SATA 6Gb/s 1 x Thunderbolt
