Description

Asrock TRX50 WS, Workstation, AMD TRX50, sTR5, EATX, 4 DDR5 ECC, Wi-Fi 6E, 10G & 2.5G LAN, SlimSAS, MCIO, PCIe5, 2x M.2

Dependable and Versatile Workstations Motherboard.

Designed to deliver powerful performance, manageability and reliability for high speed computing workstations.

  • Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors
  • 18+3+3 Power Phase Design, 110A SPS for VCore
  • Supports 4 DIMMs DDR5 ECC Registered memory
  • 3 PCIe 5.0 x16, 2 PCIe 4.0 x16
  • Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
  • 4 SATA3,
  • 1 Blazing M.2 (PCIe Gen5 x4),
  • 1 Hyper M.2 (PCIe Gen4 x4),
  • 1 MCIO (PCIe Gen5 x4),
  • 2 SlimSAS (PCIe Gen4 x4 / 4 SATA3)
  • 1 USB 3.2 Gen2x2 Type-C (Rear),
  • 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
  • 4 USB 3.2 Gen2 Type-A (Rear),
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front),
  • 4 USB 2.0 (Front)
  • Marvell 10 GbE LAN,
  • Realtek 2.5 Gigabit LAN
  • 802.11ax WiFi 6E + Bluetooth



Long Lasting 20K Cap
20K black capacitors with lifespans of at least 20,000 hours, provides even longer component durability compares with normal capacitors, extending MTBF to give better system stability.




18+3+3 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.




SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.




Hi-Density Power Connector
CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.




Server Grade Ultra Low Loss PCB
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.




2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.




12 Layer PCB
The 12 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.




Composite VRM Heatsink
It is equipped with a composite VRM heatsink active cooling fans, XXL aluminium heatsinks and heat pipe for maximum heat dissipation




DDR5 ECC Memory Support
Supports 4 DIMMs DDR5 RDIMM ECC Memory overclocking with max capacity of 1TB. It can automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.




3 x PCIe Gen5 x16
With AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series processors, ASRock TRX50 WS supports 3 PCIe gen5 x16 slots, deliver all the performance of PCIe 5.0 to your GPU and add-on cards. Fulfil all the professional design, deep learning, simulation and rendering applications.




Multi PSU Adaptor Cable
Users can easily add a secondary power supply via Multi PSU Adaptor Cable and ATX_Con header, allowing users to build a high performance with wider combinations of high wattage power supply.




PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.




Server Grade Storage Connections
Equipped with SlimSAS(SFF-8654) and the latest MCIO server grade connections for fast and stable storage expansions.




Ultimate Network Connectivity
Equipped with Marvell10 GbE & Realtek 2.5 GbE LAN to ensure superfast file-transfer speed to local server, NAS or Cloud storage.




Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.




USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.




Polychrome RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.




Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analogue output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.




Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.




Ultimate Gaming Experience
Sound Tracker: The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices!: Enjoy the vibrant and high-quality Surround Sound on all your favourite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favourite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.




Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!




BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.




Pre-Installed IO Shield
ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.




Specifications:
- CPU Support : Click here for CPU support
- Wireless : 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 with extended 6GHz band support 2 antennas - 2 (Transmit) x 2 (Receive) diversity tech Supports Bluetooth 5.2 + High speed class II Supports MU-MIMO
- Chipset : AMD TRX50
- RAM Technology : DDR5, ECC Registered Memory 4 Channel
- USB Ports Supported : Rear: 1 x USB 3.2 Gen2x2 Type-C 4 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen1 Type-A Front: 1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 1024GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Extended ATX
- Accessories : 1 x User Manual 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 2 x Thermistor Cables 1 x Multi PSU Adaptor Cable 2 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets
- #Hide#Max LAN Speed : 10GB LAN
- Warranty : 3 Year Replacement Warranty
- #Hide#DDR Type : DDR5
- Graphics Ports : -
- PCI/PCI Express : 3 x PCIe 5.0 x16 (PCIE1/PCIE3 at x16; PCIE4 at x8) 1 x PCIe 4.0 x16 (PCIE2) (supports x4 mode) 1 x PCIe 4.0 x16 (PCIE5) (supports x8 mode)
- RAM Speeds : Up to 7600+(OC)
- #Hide#No. LAN Ports : 2 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, 1 and 10 for SATA storage devices Supports RAID 0, 1 and 10 for M.2 NVMe storage devices
- . : 1 x 6 pin Graphics 12V 1 x Front Panel Audio 1 x Thunderbolt AIC (5-pin) 2 x USB 2.0 1 x USB 3.2 Gen1 1 x Front Panel Type-C USB 3.2 Gen2 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED
- Graphics : -
- Package Type : Retail
- Internal I/O Connectors : 2 x Thermistor Cable 1 x SPI TPM 1 x COM Port 1 x Chassis Intrusion and Speaker 2 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 3 pin ATX 2 x 8 pin ATX 12V 2 x 6 pin PCIe 12V
- Storage : 4 x SATA III 1 x M.2 (2260/2280) - PCIe 5.0 x4 1 x M.2 (2260/2280) - PCIe 4.0 x4 1 x MCIO PCIe Gen5x4 2 x SlimSAS SFF-8654 (PCIe Gen4x4 or 4x SATA3)

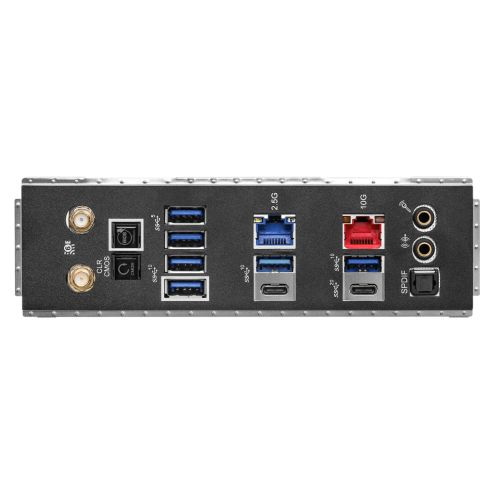

- Back Panel I/O Ports : 2 x Antenna 1 x Optical SPDIF Out 1 x USB 3.2 Gen2x2 Type-C 4 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen1 Type-A 2 x RJ-45 LAN 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack 1 x Microphone Input Jack
- LAN : 10GB LAN & 2.5GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Package Weight : 4.1000 kg
- Socket : AMD sTR5
