Asrock H610M-HDV/M.2+ D5, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, DP, PCIe4, 1x M.2

2 sold in last 8 hours
My Store
ASMBH610M-HDVM.2PLUSD5-43776298
Out of stock
£253.43 £136.99
Asrock H610M-HDV/M.2+ D5, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, DP, PCIe4, 1x M.2 Snowy with Style   Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700) 6+1+1 Power Phase Supports DDR5 5600MHz* 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options:...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

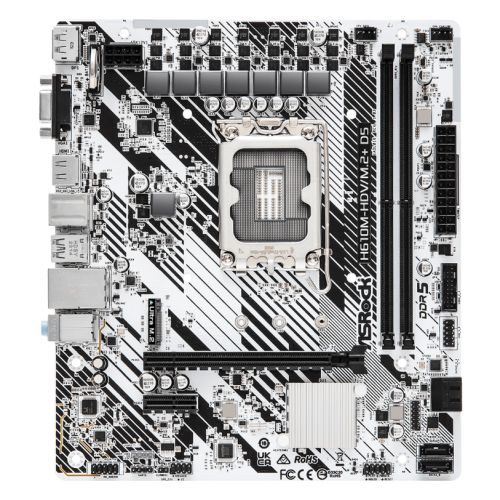

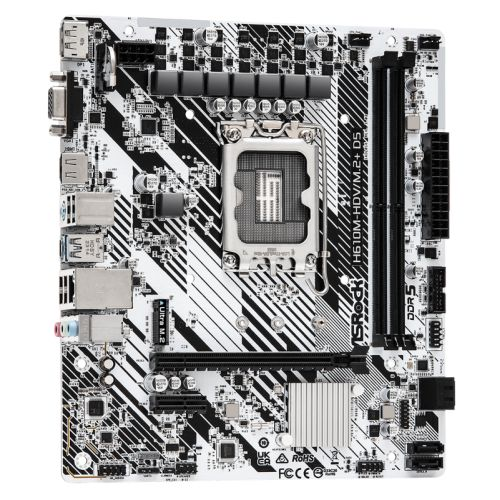

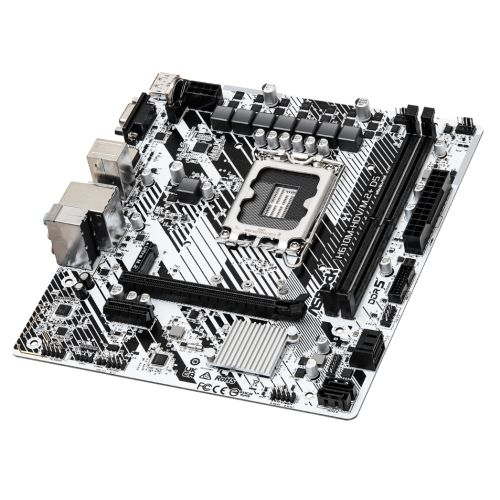

Asrock H610M-HDV/M.2+ D5, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, DP, PCIe4, 1x M.2

Snowy with Style


  • Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
  • 6+1+1 Power Phase
  • Supports DDR5 5600MHz*
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
  • 1 USB 3.2 Gen1 Type-C (Rear),
  • 3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front),
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer
6+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Polychrome RGB
This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects .

Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.





Specifications:
- CPU Support : Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)
- Wireless : -
- Chipset : Intel H610
- RAM Technology : DDR5, Dual Channel Supports Intel Extreme Memory Profile (XMP) 3.0
- USB Ports Supported : Rear: 1 x USB 3.2 Gen1 Type-C 1 x USB 3.2 Gen1 Type-A 4 x x USB 2.0 Front: 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0
- RAM Slots : 2 x DIMM
- Maximum Memory : 128GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket
- #Hide#Max LAN Speed : GB LAN
- Warranty : 3 Year Replacement Warranty
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x VGA 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0 x16 (supports x16 mode) 1 x PCIe 3.0 x1
- RAM Speeds : Up to 5600MHz
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- Graphics : Integrated Graphics* *Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x Addressable LED 1 x CPU Fan 1 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Audio 1 x USB 2.0 1 x USB 3.2 Gen1
- Storage : 4 x SATA III 1 x M.2 (2242/2260/2280) - PCIe 3.0 x4

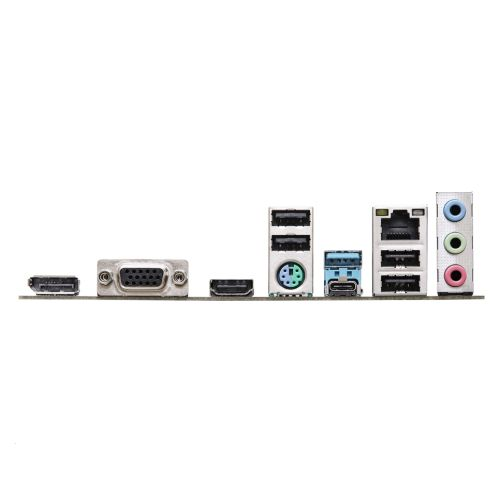

- Back Panel I/O Ports : 1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C 1 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks
- LAN : GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Package Weight : 0.7300 kg
- Socket : Intel 1700
