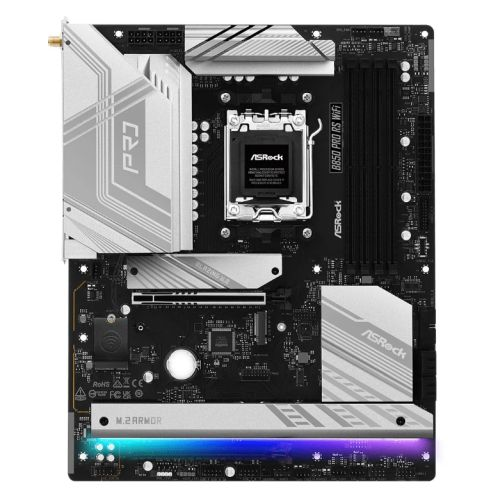

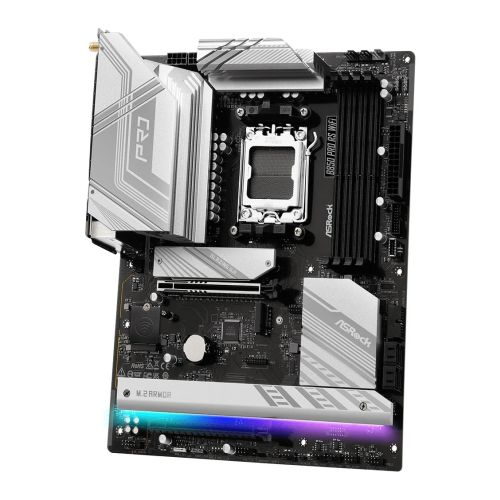

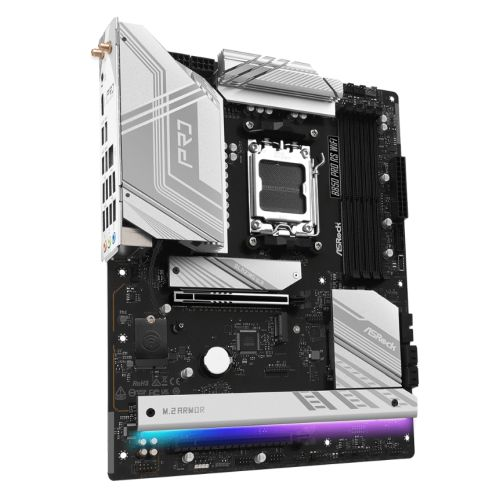

Asrock B850 PRO RS WIFI, AMD B850, AM5, ATX, 4 DDR5, HDMI, USB-C (DP-alt), Wi-Fi 6E, 2.5G LAN, RGB, 4x M.2

Asrock B850 PRO RS WIFI, AMD B850, AM5, ATX, 4 DDR5, HDMI, USB-C (DP-alt), Wi-Fi 6E, 2.5G LAN, RGB, 4x M.2

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI, 1 USB Type-C (DP-alt)
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4)
• 2 Hyper M.2 (PCIe Gen4x4)
• 1 Ultra M.2 (PCIe Gen3x4)
• 4 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front)
• 1 USB 3.2 Gen2 Type-C (Rear)
• 1 USB 3.2 Gen1 Type-C (Rear)
• 8 USB 3.2 Gen1 (4 Rear, 4 Front)
• 10 USB 2.0 (6 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11axe WiFi 6E +Bluetooth
• Supports M.2 Bottom Heatsink,
• BIOS Flashback



• 14+2+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
• Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
• Hi-Density Power Connector - CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
• 8 Layer PCB - The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
• DDR5 XMP & EXPO Support - Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

• PCIe Gen5 Blazing M.2 - The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
• Hyper M.2 Gen4 x4 - Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

• Aluminum Heatsink - The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
• PWM/DC Fan Support - ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
• Fan-Tastic Tuning - ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.

• Wi-Fi 6E 802.11axe - WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
• Dragon 2.5 Gb/s LAN - The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
• Front Panel USB 3.2 Gen2x2 Type-C Header - The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
• USB Type-C (DP-alt Mode) - USB Alternate Mode allows USB Type-C ports to enable both data transfer and display output to DisplayPort monitors through a single cable.

• Polychrome RGB - This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
• SignalRGB - SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

• Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
• BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
• Pre-Installed IO Shield - Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.




Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : AMD B850
- RAM Technology : DDR5 (Dual Channel) ECC and Non-ECC Un-buffered DIMM Supports XMP & EXPO
- USB Ports Supported : Rear: 1 x USB 10Gbps Type-C 1 x USB 5Gbps Type-C 4 x USB 5Gbps Type-A 6 x USB 2.0 Front: 1 x USB 20Gbps Type-C 4 x USB 5Gbps 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX

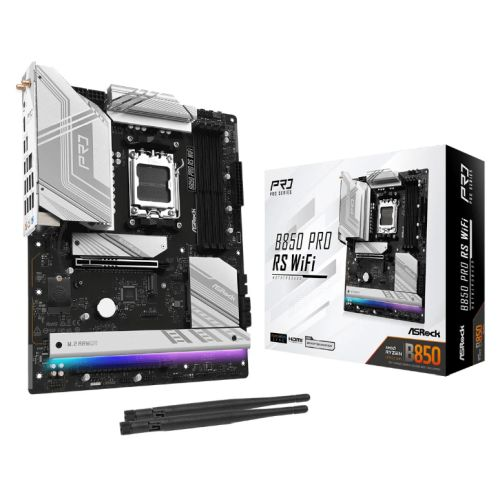

- Accessories : 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Year Replacement Warranty
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3
- PCI/PCI Express : Ryzen 9000 & 7000 Series CPUs: 1 x PCIe 5.0 x16 Ryzen 8000 Series CPUs: 1 x PCIe 4.0 x8/x4 AMD B850 Chipset: 1 x PCIe 4.0 x16 (supports x4 mode)
- RAM Speeds : Up to 8000+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0 and 1 for SATA storage devices Supports RAID 0, 1 and 10 for M.2 NVMe storage devices
- . : 1 x Front Panel Type-C USB 3.2 Gen2x2
- Graphics : Integrated Graphics Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x SPI TPM 1 x Power LED and Speaker 1 x RGB LED 3 x Addressable LED 2 x CPU Fan 4 x Chassis Fan 1 x AIO Pump Fan 1 x 24 pin ATX 2 x 8 pin 12V 1 x Front Panel Audio 2 x USB 2.0 2 x USB 3.2 Gen1
- Storage : 4 x SATA III 4 x M.2 Ryzen 9000 & 7000 Series CPUs: M.2_1 (2280) - PCIe 5.0 x4 M.2_2 (2280) - PCIe 4.0 x4 Ryzen 8000 Series CPUs: M.2_1 (2280) - PCIe 4.0 x4 M.2_2 (2280) - PCIe 4.0 x4/x2 AMD B850 Chipset: M.2_3 (2230/2242/2260/2280) - PCIe 4.0 x4 M.2_4 (2280) - PCIe 3.0 x4

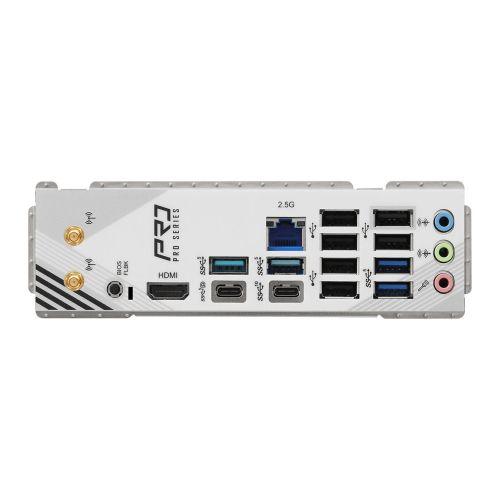

- Back Panel I/O Ports : 2 x Antenna 1 x HDMI 1 x USB 3.2 Gen2 Type-C 1 x USB 3.2 Gen1 Type-C 4 x USB 3.2 Gen1 Type-A 6 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button HD Audio Jacks
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Package Weight : 2.2000 kg
- Socket : AMD AM5
