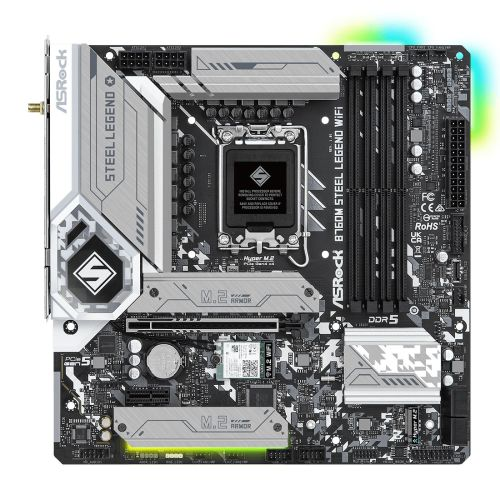

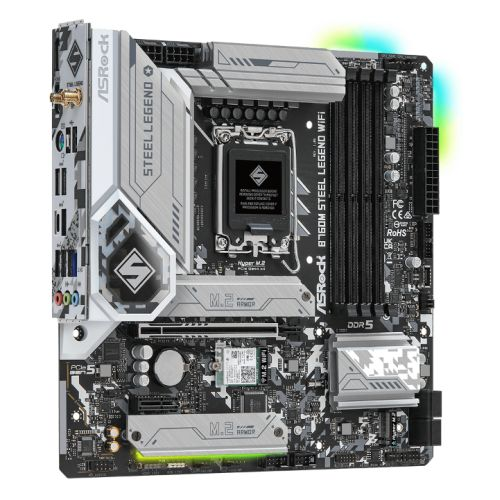

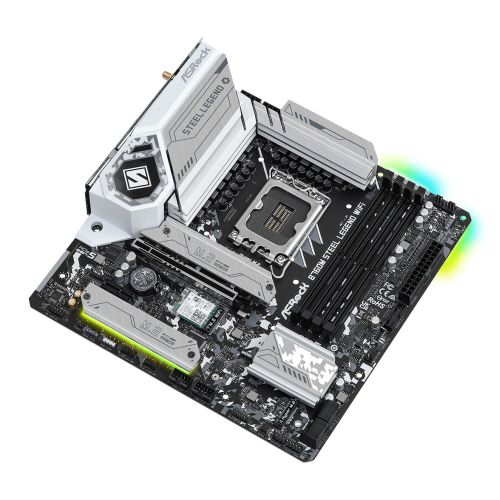

Asrock B760M STEEL LEGEND WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2, RGB

2 sold in last 8 hours
My Store
ASMBB760MSTEELLEGENDWIFI-43775996
Out of stock
£571.63 £308.99
Asrock B760M STEEL LEGEND WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2, RGB Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

Asrock B760M STEEL LEGEND WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2, RGB

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.


  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 12+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
  • 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
  • 1 USB 3.2 Gen2 Type-A (Rear),
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front),
  • 6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
  • Supports ASRock Auto Driver Installer







Optimized VRM Design

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

12+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Reinforced Steel Slot [PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
 - Extra anchor points
 - Stronger latch
 - Ensure signal stability
 - Make sure heavy graphics cards to be well-installed.

Nahimic Audio

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.



Wireless Networking

Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

M.2 Key-E Module Cap

SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Built in eDP Signal Connector
Supports ASRock 13.3” Side Panel kit
An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment.

EZ Setting

Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

Flexible Integrated IO Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.






Specifications:
- CPU Support : Click here for CPU support
- Wireless : 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 with ext 6GHz band support 2 antennas - 2 (Transmit) x 2 (Receive) diversity tech Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO
- Chipset : Intel B760
- RAM Technology : DDR5 (Dual Channel)
- USB Ports Supported : 1 x USB 3.2 Gen2 Type-C (at back) 1 x USB 3.2 Gen2 Type-A (at back) 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board) 6 x USB 2.0 (2 at back, 4 at mid-board) 1 x Front Panel Type-C USB 3.2 Gen2 Header
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX

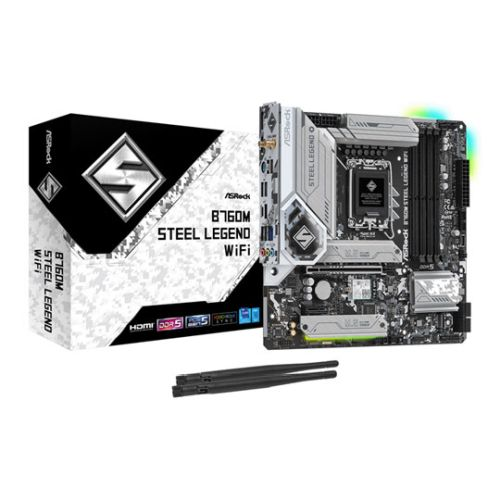

- Accessories : 1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets 3 x Standoffs for M.2 Sockets
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Year Replacement Warranty
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort 1 x eDP 1.4
- PCI/PCI Express : 1 x PCIe 5.0 x16 (supports x16 mode) 1 x PCIe 4.0 x1
- RAM Speeds : Up to 7200+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- . : 1 x USB 3.2 Gen1 1 x Front Panel Type C USB 3.2 Gen2
- Graphics : Integrated Graphics* *Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x eDP Signal 1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x RGB LED 3 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 2 x 8 pin 12V 1 x Front Panel Audio 2 x USB 2.0
- Storage : 4 x SATA III 1 x M.2 (2260/2280) - PCIe 1 x M.2 (2260/2280) - PCIe 1 x M.2 (2260/2280) - PCIe

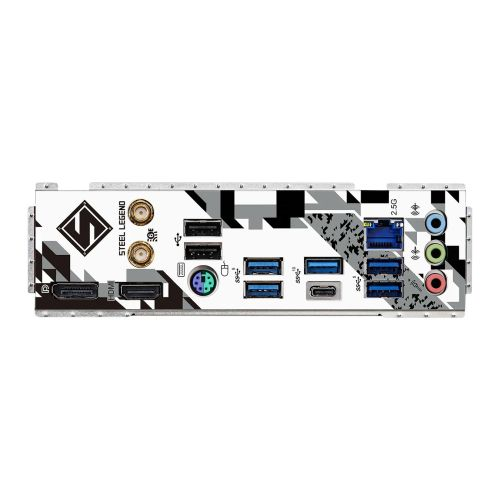

- Back Panel I/O Ports : 2 x Antenna 1 x PS/2 Mouse/Keyboard 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 4 x USB 3.2 Gen1 2 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Package Weight : 1.6000 kg
- Socket : Intel 1700
