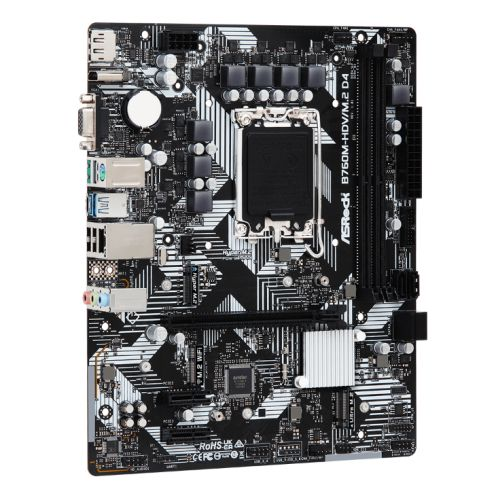

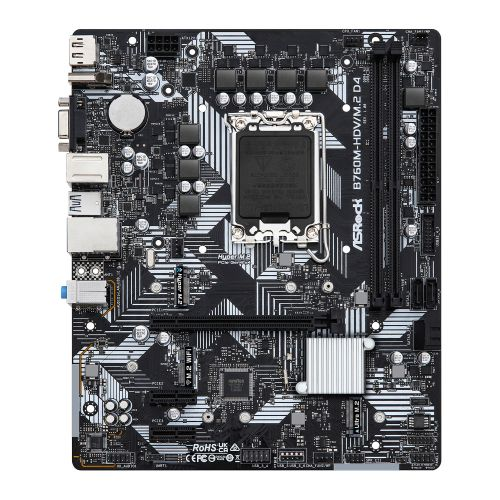

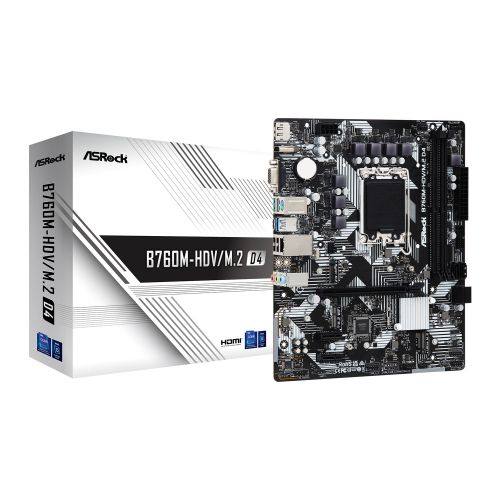

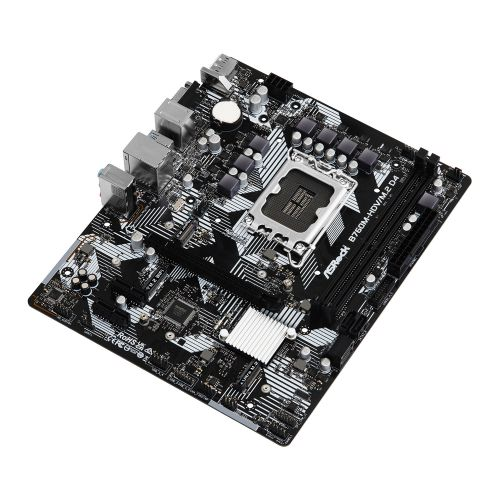

Asrock B760M-HDV/M.2 D4, Intel B760, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

B760M-HDV/M.2 D4


  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 5+1+1 Power Phase
  • Supports DDR4 5333MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC887/897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
  • 1 Ultra M.2 (PCIe Gen3x4 & SATA)
  • 1 USB 3.2 Gen1 Type-C (Rear),
  • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
  • 5 USB 2.0 (2 Rear, 3 Front)
  • Realtek 1G LAN
  • Supports ASRock Auto Driver Installer






5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!





Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel B760
- RAM Technology : DDR4 (Dual Channel)
- USB Ports Supported : 1 x USB 3.2 Gen1 Type-C (at back) 5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board) 5 x USB 2.0 (2 at back, 3 at mid-board)
- RAM Slots : 2 x DIMM
- Maximum Memory : 64GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets
- #Hide#Max LAN Speed : GB LAN
- Warranty : 3 Year Replacement Warranty
- #Hide#DDR Type : DDR4
- Graphics Ports : 1 x VGA 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0 x16 (supports x16 mode) 2 x PCIe 3.0 x1
- RAM Speeds : Up to 5333+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Graphics : Integrated Graphics* *Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x CPU Fan 1 x CPU/Water Pump Fan 2 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Panel Audio 2 x USB 2.0 1 x USB 3.2 Gen1
- Storage : 4 x SATA III 1 x M.2 (2260/2280) - PCIe 1 x M.2 (2260/2280) - SATA & PCIe

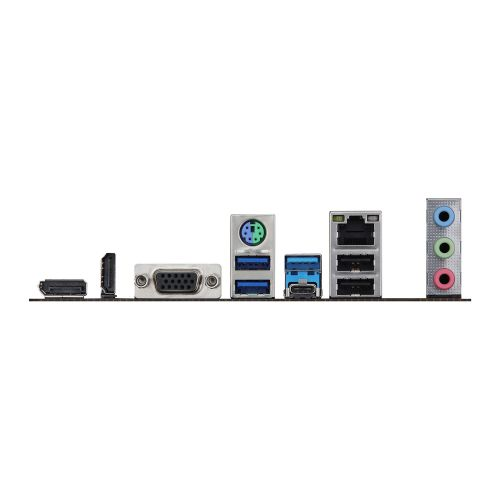

- Back Panel I/O Ports : 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C 3 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks
- LAN : GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- Package Weight : 0.9000 kg
- Socket : Intel 1700
