Asrock B760 PRO RS, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, eDP, 2.5G LAN, PCIe5, 3x M.2, RGB

2 sold in last 8 hours
My Store
ASMBB760PRORS-43775204
Out of stock
£466.18 £251.99
Asrock B760 PRO RS, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, eDP, 2.5G LAN, PCIe5, 3x M.2, RGB Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Its unique path takes aim at...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

Asrock B760 PRO RS, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, eDP, 2.5G LAN, PCIe5, 3x M.2, RGB

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.


  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 10+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
  • 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
  • 1 M.2 (PCIe Gen4x2)
  • 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
  • 1 USB 3.2 Gen2 Type-A (Rear),
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front),
  • 4 USB 2.0 (2 Rear, 2 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer





10+1+1 Power Phase Design + Dr.MOS
Vcore with Dr.MOS design, delivering smoother and neater power to the CPU.


DDR5 Memory Technology
A trouble free protection circuit design on every DDR5 motherboard, lowers the risk of damaging your memory module.


PCIe Gen5 Technology
Ready to unleash the full potential of future high end graphics cards.


Auto Driver Installer
The LAN driver has already prepacked in BIOS ROM, simply follow the instructions and install all necessary drivers automatically.


Pre-Installed I/O Shield
ASRock pre-installs the I/O shield for you as an assembly helper to speed up the set-up process.


USB 3.2 Type-C (Front + Rear)
USB 3.2 Gen2 Type-C that delivers up to 10Gbps data transfer rate.


DRAGON 2.5Gbps LAN
Enjoy the faster connectivity experience for gaming, file transfers and backups.




Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : Intel B760
- RAM Technology : DDR5 (Dual Channel)
- USB Ports Supported : 1 x USB 3.2 Gen2 Type-C (at back) 1 x USB 3.2 Gen2 Type-A (at back) 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board) 4 x USB 2.0 (2 at back, 2 at mid-board) 1 x Front Panel Type-C USB 3.2 Gen1 Header
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX
- Accessories : 1 x User Manual 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
- Multi-GPU Support : Supports AMD CrossFire
- Warranty : 3 Year Replacement Warranty
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort 1 x eDP 1.4
- PCI/PCI Express : 1 x PCIe 5.0 x16 (supports x16 mode) 1 x PCIe 4.0 x16 (supports x4 mode) 1 x PCIe 3.0 x16 (supports x1 mode) 1 x PCIe 3.0 x1
- RAM Speeds : Up to 7200+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- . : 1 x USB 2.0 1 x USB 3.2 Gen1 1 x Front Panel Type C USB 3.2 Gen2
- Graphics : Integrated Graphics* *Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x eDP Signal 1 x SPI TPM 1 x Power LED and Speaker 2 x RGB LED 2 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 5 x Chassis/Water Pump Fan 1 x 24 pin ATX 2 x 8 pin 12V 1 x Front Panel Audio 1 x Thunderbolt AIC
- Storage : 4 x SATA III 1 x M.2 (2260/2280) - PCIe 4.0 x4 1 x M.2 (2260/2280) - PCIe 4.0 x2 1 x M.2 (2260/2280) - PCIe 4.0 x4

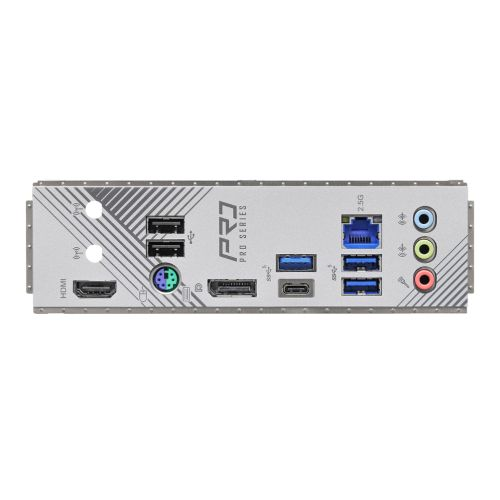

- Back Panel I/O Ports : 2 x Antenna Mounting Points 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 4 x USB 3.2 Gen1 2 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Package Weight : 1.9000 kg
- Socket : Intel 1700
