Description

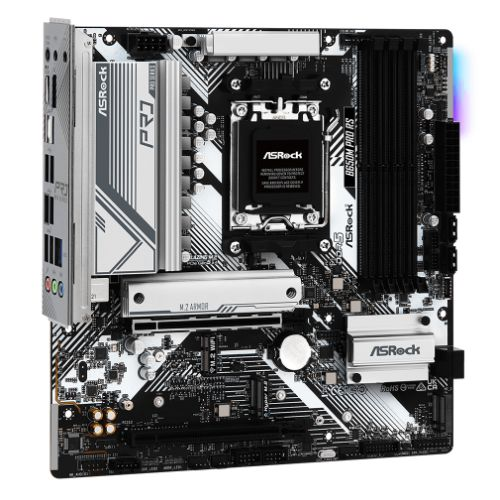

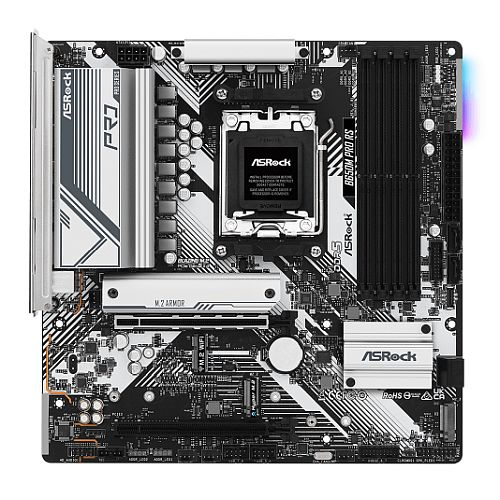

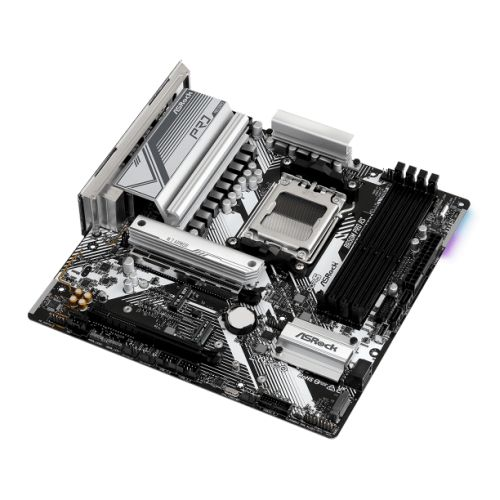

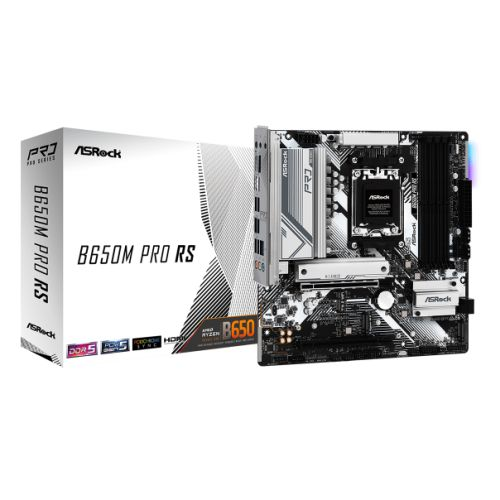

Asrock B650M PRO RS, AMD B650, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, RGB, 3x M.2

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.



  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 8+2+1 Power Phase, Dr.MOS
  • Supports DDR5 6000+ MHz (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
  • 1 Hyper M.2 (PCIe Gen4 x4)
  • 1 M.2 (PCIe Gen4 x2)
  • 1 USB 3.2 Gen2 Type A+C (Rear)
  • 1 USB 3.2 Gen1 Type-C (Front)
  • 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  • Dragon 2.5G LAN





Extreme Overclocking Performance
DDR5 EXPO & XMP Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6000MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.


Blazing OC Tuner

The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.


AMD PBO Technolog

PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.

Intelligent Cooling Design
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.


Fan-Tastic Tuning

ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.


PWM/DC Fan Support

ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

Optimized VRM Design
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.


8+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.


2oz Copper PCB

2 ounce copper inner-800 layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Nahimic Audio
  • Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
  • Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
  • Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
  • Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.



Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.


XXL M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

EZ Setting
Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!


BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.


Pre-Installed IO Shield

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.






Specifications:
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : AMD B650
- RAM Technology : DDR5 (Dual Channel)
- USB Ports Supported : 1 x USB 3.2 Gen2 Type-C (at back) 1 x USB 3.2 Gen2 Type-A (at back) 6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board) 8 x USB 2.0 (4 at back, 4 at mid-board) 1 x Front USB 3.2 Gen1 Type-C connector
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : 1 x User Manual 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
- Multi-GPU Support : Supports AMD CrossFire
- Warranty : 3 Year Replacement Warranty
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 4.0 x16 (supports x16 mode) 1 x PCIe 3.0 x16 (supports x4 mode) 1 x PCIe 4.0 x1
- RAM Speeds : Up to 6000+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- . : 2 x USB 3.2 Gen1 1 x Front Panel Type C USB 3.2 Gen1
- Graphics : Integrated Graphics* *Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x SPI TPM 1 x Power LED and Speaker 1 x RGB LED 3 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Audio 1 x Thunderbolt AIC 2 x USB 2.0
- Storage : 4 x SATA III 1 x M.2 (2260/2280) - PCIe 1 x M.2 (2260/2280) - PCIe 1 x M.2 (2260/2280) - PCIe

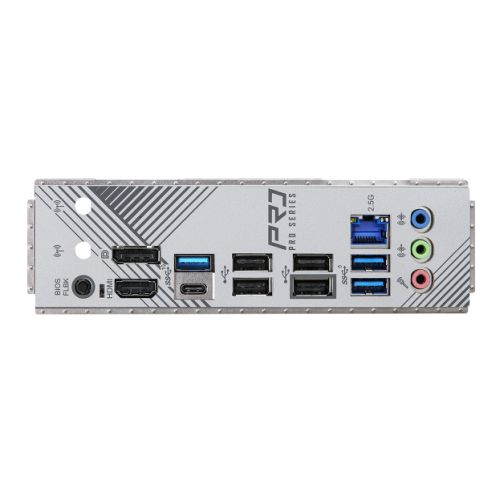

- Back Panel I/O Ports : 2 x Antenna Mounting Points 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen1 4 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button HD Audio Jacks
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Package Weight : 1.2600 kg
- Socket : AMD AM5
