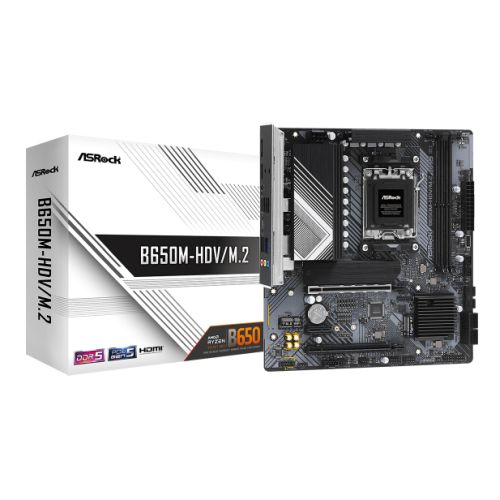

Asrock B650M-HDV/M.2, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2
Subcribe to back in stock notification
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Covid-19 Shipping Delay Notice
Asrock B650M-HDV/M.2, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2

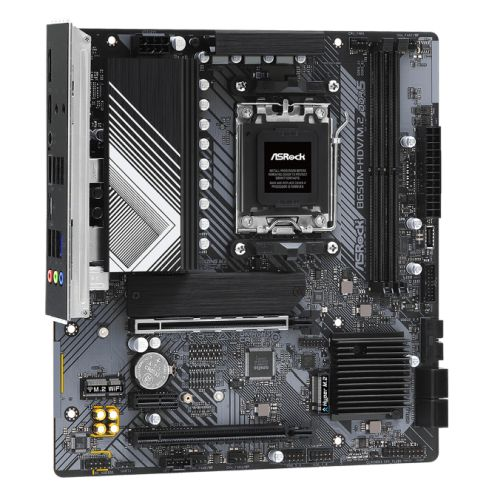

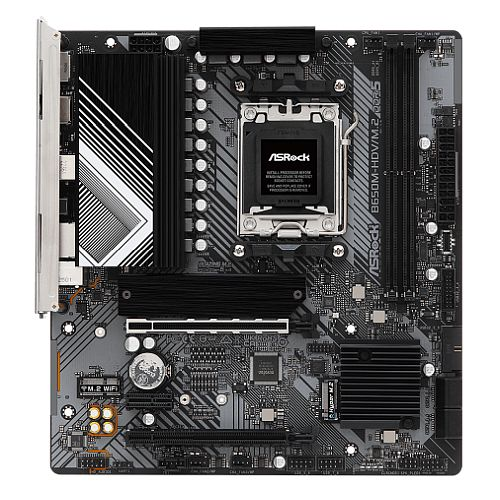

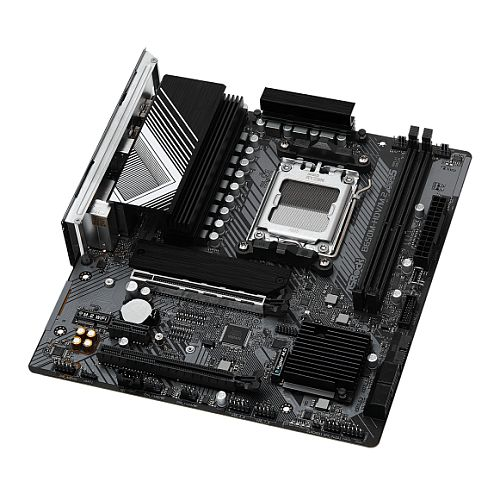

B650M-HDV/M.2
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 8+2+1 Power Phase, Dr.MOS
- Supports DDR5 6400+ MHz (OC)
- 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Integrated AMD RDNA™ 2 Graphics*
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen2 Front Type-C,
- 7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback
- Pre-Installed I/O Shield
- Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
- 8+2+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
- 2oz Copper PCB - 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
- Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
- Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
- Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
PCIe Gen5 Blazing M.2
- Auto Driver Installer - Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
- BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
- Pre-Installed IO Shield - ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
Specifications:
- PCI/PCI Express : 1 x PCIe 4.0 x16 (supports x16 mode) 1 x PCIe 4.0 x16 (supports x4 mode) 1 x PCIe 4.0 x1
- RAM Speeds : Up to 6400+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- Graphics : Integrated Graphics* *Graphics specifications may vary between CPU types
- Package Type : Retail
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- CPU Support : Click here for CPU support
- Wireless : -
- Chipset : AMD B650
- RAM Technology : DDR5 (Dual Channel)
- USB Ports Supported : 1 x USB 3.2 Gen1 Type-C (at back) 6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board) 8 x USB 2.0 (4 at back, 4 at mid-board) 1 x Front USB 3.2 Gen2 Type-C connector
- RAM Slots : 2 x DIMM
- Maximum Memory : 128GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Micro ATX
- Accessories : 1 x User Manual 2 x SATA Data Cables 2 x Screws for M.2 Sockets
- Multi-GPU Support : Supports AMD CrossFire
- #Hide#Max LAN Speed : 2.5GB LAN
- Warranty : 3 Year Replacement Warranty
- #Hide#DDR Type : DDR5
- Internal I/O Connectors : 1 x SPI TPM 1 x Power LED and Speaker 1 x CPU Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Panel Audio 1 x Thunderbolt AIC 2 x USB 2.0 2 x USB 3.2 Gen1 1 x Front Panel Type-C USB 3.2 Gen2
- Storage : 4 x SATA III 1 x M.2 (2280) - PCIe 1 x M.2 (2260/2280) - PCIe

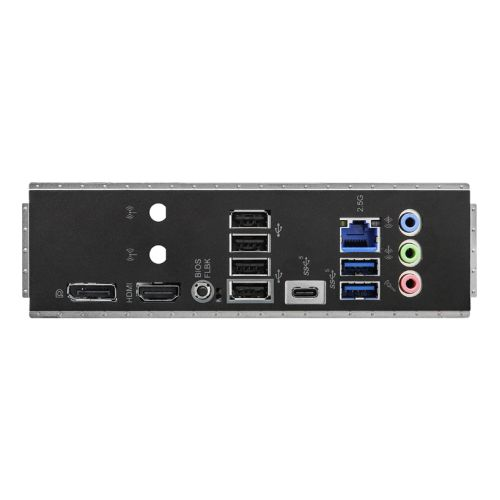

- Back Panel I/O Ports : 2 x Antenna Mounting Points 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button HD Audio Jacks
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Package Weight : 1.3500 kg
- Socket : AMD AM5
