Asrock B650 STEEL LEGEND WIFI, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 3x M.2

2 sold in last 8 hours
My Store
ASMBB650STEELLEGENDWIFI-43776348
Out of stock
£660.43 £356.99
Asrock B650 STEEL LEGEND WIFI, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 3x M.2   Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

Asrock B650 STEEL LEGEND WIFI, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 3x M.2



Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics.

Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

  • Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
  • 14+2+1 Power Phase, 80A Dr.MOS for VCore
  • 4 x DDR5 DIMMs, supports up to 7200+ (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen2x2 Type-C (Rear)
  • 1 USB 3.2 Gen1 Type-C (Front)
  • 1 USB 3.2 Gen2 Type-A (Rear)
  • 8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)
  • 8 USB 2.0 (4 Rear, 4 Front)
  • Dragon 2.5G LAN
  • 802.11axe WiFi 6E + Bluetooth
  • Supports ASRock Auto Driver Installer, BIOS Flashback




Optimized VRM Design
  • Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
  • 14+2+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
  • 20K Capacitor - 20K black capacitors with lifespans of at least 20,000 hours, provides even longer component durability compares with normal capacitors, extending MTBF to give better system stability.
8 Layer PCB design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.



Extreme Overclocking Performance
  • DDR5 EXPO & XMP Support - Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
  • Blazing OC Tuner - The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.
  • AMD PBO Technology - PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.
Nahimic Audio
  • Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
  • Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
  • Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
  • Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution
  • PCIe Gen5 Blazing M.2 - The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
  • Multi-Layer M.2 Heatsink - The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
  • Anti-Drop Screw - Tired of dropping screws or screws missing inside chassis? The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

EZ Setting

  • Auto Driver Installer - Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
  • BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
  • Flexible Integrated IO Shield - Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.





Specifications:
- CPU Support : Click here for CPU support
- Wireless : 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity tech Supports Bluetooth 5.2 + High speed class II Supports MU-MIMO
- Chipset : AMD B650
- RAM Technology : DDR5 (Dual Channel) Supports ECC/non-ECC, un-buffered memory Supports XMP and EXPO for Overclocking
- USB Ports Supported : Rear: 1 x USB 3.2 Gen2x2 Type-C 1 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 Type-A 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 Front: 1 x USB 3.2 Gen1 Type-C 4 x USB 3.2 Gen1 Type-A 4 x USB 2.0
- RAM Slots : 4 x DIMM
- Maximum Memory : 256GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : ATX

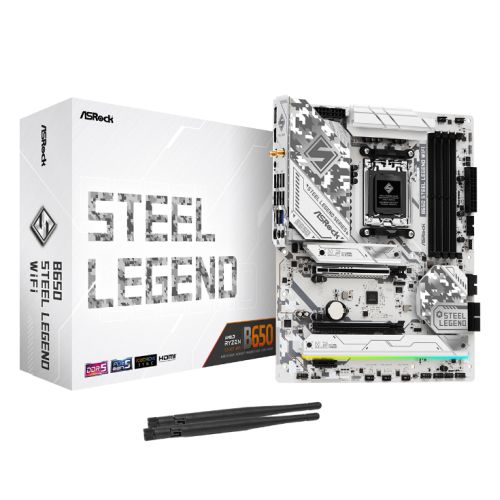

- Accessories : 1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
- Multi-GPU Support : Supports AMD CrossFire
- Warranty : 3 Year Replacement Warranty
- #Hide#DDR Type : DDR5
- Graphics Ports : 1 x HDMI 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 5.0 x16 (supports x16 mode) 1 x PCIe 3.0 x16 (supports x4 mode) 1 x PCIe 4.0 x1
- RAM Speeds : Up to 7200+(OC)
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- . : 1 x Front Panel Type C USB 3.2 Gen1
- Graphics : Integrated Graphics* *Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x SPI TPM 1 x Power LED and Speaker 1 x RGB LED 3 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 4 x Chassis/Water Pump Fan 1 x 24 pin ATX 2 x 8 pin 12V 1 x Front Panel Audio 2 x USB 2.0 2 x USB 3.2 Gen1
- Storage : 2 x SATA III 1 x M.2 (2260/2280) - PCIe 5.0 x4 1 x M.2 (2260/2280) - PCIe 4.0 x4 1 x M.2 (2260/2280) - PCIe 4.0 x4

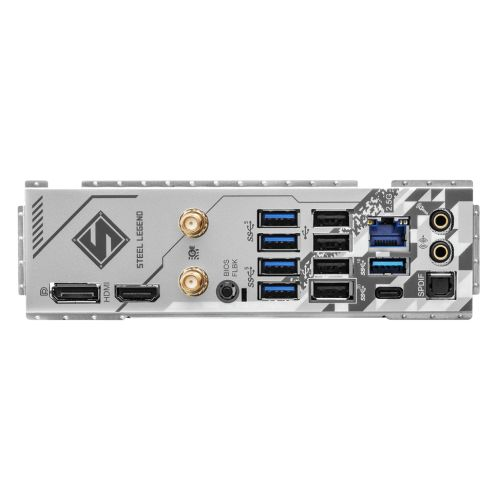

- Back Panel I/O Ports : 2 x Antenna 1 x HDMI 1 x DisplayPort 1.4 1 x Optical SPDIF Out 1 x USB 3.2 Gen2x2 Type-C 1 x USB 3.2 Gen2 Type-A 4 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button 1 x Line Out Jack 1 x Microphone Input Jack
- LAN : 2.5GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Package Weight : 2.2100 kg
- Socket : AMD AM5
