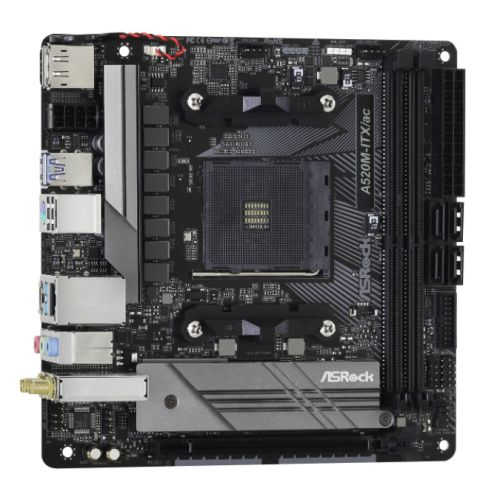

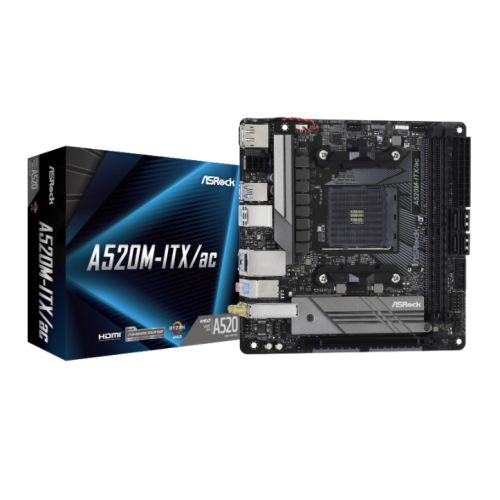

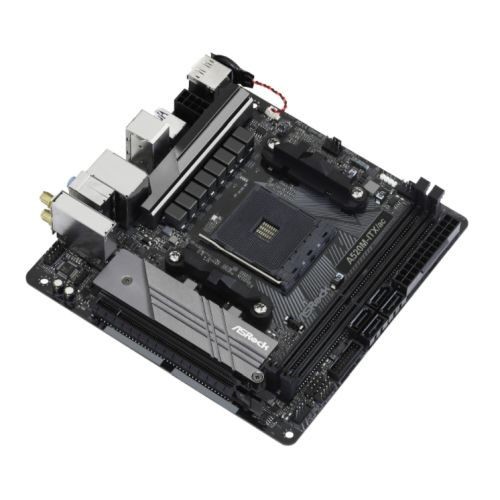

Asrock A520M-ITX/AC, AMD A520, AM4, Mini ITX, 2 DDR4, HDMI, DP, AC Wi-Fi, M.2

2 sold in last 8 hours
My Store
ASMBA520MITXAC-43776362
Out of stock
£379.23 £204.99
Asrock A520M-ITX/AC, AMD A520, AM4, Mini ITX, 2 DDR4, HDMI, DP, AC Wi-Fi, M.2 Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors) Supports DDR4 4733+ (OC) 1 x PCIe 3.0 x16 Graphics Output: DisplayPort, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

Asrock A520M-ITX/AC, AMD A520, AM4, Mini ITX, 2 DDR4, HDMI, DP, AC Wi-Fi, M.2

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors)
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16
Graphics Output: DisplayPort, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
6 x USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 x Rear Type-C)
Realtek Gigabit LAN
Intel® 802.11ac WiFi + BT 4.2
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it enhanced performance with the lowest temperature for advanced gamers.



Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Rule Your Own Lighting Way - Polychrome RGB


This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.



Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.



Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Dual USB 3.2 Gen1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.



Super Alloy Motherboard


Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.



Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.




Specifications:
- CPU Support : Click here for CPU support *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
- Wireless : Intel 802.11ac WiFi Module Supports IEEE 802.11a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports wireless connections up to 433Mbps Supports Bluetooth 4.2
- Chipset : AMD A520
- RAM Technology : DDR4 (Dual Channel)
- USB Ports Supported : 1 x USB 3.2 Gen1 Type-C (at back) 5 x USB 3.2 Gen1 (3 at back, 2 at mid-board) 4 x USB 2.0 (2 at back, 2 at mid-board)
- RAM Slots : 2 x DIMM
- Maximum Memory : 64GB
- #Hide#M.2 Slot(s) : Yes (M.2)
- Form Factor : Mini ITX
- Accessories : 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5 GHz Antennas
- Multi-GPU Support : -
- #Hide#Max LAN Speed : GB LAN
- Warranty : 2 Year Replacement Warranty
- #Hide#DDR Type : DDR4
- Graphics Ports : 1 x VGA 1 x DisplayPort
- PCI/PCI Express : 1 x PCIe 3.0 x16
- RAM Speeds : 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- #Hide#No. LAN Ports : 1 x LAN
- Motherboard Type : Desktop
- RAID : RAID 0, 1, 10
- Graphics : Integrated Graphics Processor* Graphics specifications may vary between CPU types
- Package Type : Retail
- Internal I/O Connectors : 1 x RGB LED 1 x Addressable LED 1 x CPU Fan 2 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Audio 1 x USB 2.0 1 x USB 3.2 Gen1
- Storage : 4 x SATA III 1 x M.2 (2280) - SATA & PCIe

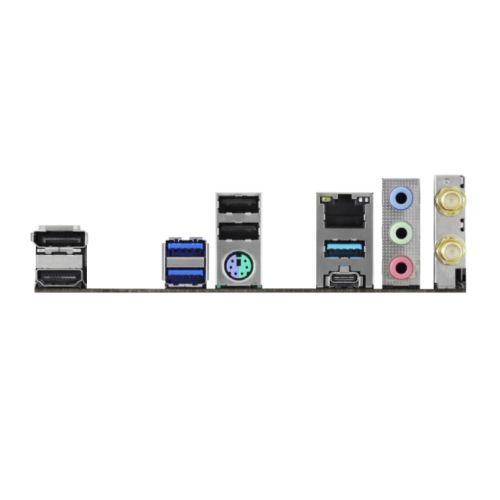

- Back Panel I/O Ports : 2 x Antenna 1 x PS/2 Mouse/Keyboard 1 x HDMI 1 x DisplayPort 1.4 2 x USB 2.0 3 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen1 Type-C 1 x RJ-45 LAN HD Audio Jacks
- LAN : GB LAN
- Additional Features : See Overview
- Audio : 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Package Weight : 0.8300 kg
- Socket : AMD AM4
