ARCTIC S8038-7K 80mm PWM Server Fans (4 Pack), Continuous Operation, Dual Ball Bearing, 500-7000 RPM

2 sold in last 8 hours
My Store
SF80-ARCS8038-7K-4PK-43775406
Out of stock
£168.33 £90.99
ARCTIC S8038-7K 80mm PWM Server Fans (4 Pack), Continuous Operation, Dual Ball Bearing, 500-7000 RPM 80mm 7K RPM Server Fan - 4 Pack Speed: 500–7000 rpm, PWM controlled Static: Pressure 25 mmH2O Airflow: 70 cfm | 118.93 m³/h Bearing: Dual Ball Bearing Cable Length: 300 mm, Black Connector: 4-Pin Connector...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

ARCTIC S8038-7K 80mm PWM Server Fans (4 Pack), Continuous Operation, Dual Ball Bearing, 500-7000 RPM

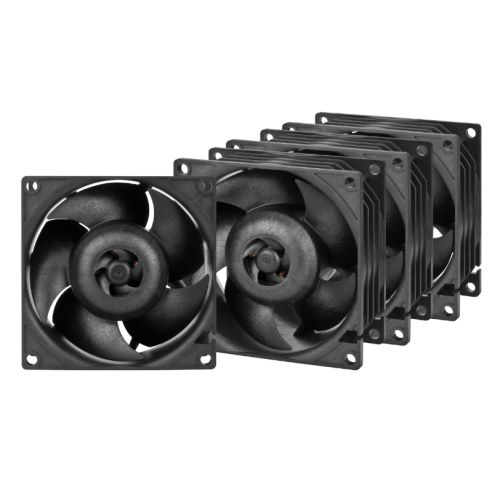

80mm 7K RPM Server Fan - 4 Pack

  • Speed: 500–7000 rpm, PWM controlled
  • Static: Pressure 25 mmH2O
  • Airflow: 70 cfm | 118.93 m³/h
  • Bearing: Dual Ball Bearing
  • Cable Length: 300 mm, Black
  • Connector: 4-Pin Connector
  • Current | Voltage: 0.5 A | 12.0 V DC
  • Start up Voltage: 3.6 V DC




New Standards in Energy Efficiency
For the same performance, the S8038 consumes 25 % less than the next best competitor, improving the energy efficiency of your server. The reduction of the power consumption is the result of months of motor optimization by ARCTIC engineers with the aim to increase the IT equipment efficiency.
* Test setup: Fan on Freezer 4U heatsink placed on 300 W heater; fan speed set to maintain a constant heater temperature of 30°C above ambient.


Wide speed range (500 to 7000 rpm)
The S8038-7K offers a wide speed range that can be controlled both via PWM and voltage. This enables perfect optimisation of the fan to the specific requirements of the system. With a speed range from 500 rpm to 7000 rpm, it offers an ideal balance between cooling performance and noise development despite different requirements. The standard 4-pin connection additionally allows the S8038-7K to be connected to 2-pin or 3-pin headers and thus be controlled by voltage instead of PWM. The 30 cm long cable offers excellent flexibility when positioning the fan.



Active Cooling for Extended Motor Lifespan
A 10 °C lower motor temperature roughly doubles the service life. The motor of the S8038-7k is not only particularly efficient, but is also actively cooled by an additional impeller in the fan hub. This advance not only leads to improved operating efficiency, but also to considerable cost savings in the long term. The scope of delivery includes a sticker for the motor hub, which ensures a long service life even in particularly dusty environments.



Ideal for server environments
Especially in server environments, fans with a high pressure are required to enable sufficient air circulation in the often tightly packed enclosures. The S8038-7K fits into 2U server housings and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation. In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimised downtimes.



High Airflow and Static Pressure
Heat sinks and radiators benefit from fans with high static pressure. The S8038-7K has a static pressure of 25 mm/H2O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 118,93 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.




Designed for Continuous Operation
The impeller of the S8038-7K is held in place by two Japanese ball bearings, making it not only particularly durable but also less sensitive to external influences such as heat and dust.



Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.




Specifications:
- Additional Features : See Overview
- Package Weight : 0.7400 kg
- Power : Current/Voltage:0.5 A/12.0 V DC Start up Voltage: 3.6 V DC
- #Hide#Type 2 : Case Fans
- #Hide#Multipack : Yes (Multipack)
- #Hide#Colour : Black
- #Hide#Max RPM : 7000 RPM
- Installation : Screws
- Air Flow : 70CFM / 118.9 m3/h
- Warranty : 6 Years
- #Hide#LED Lighting : No
- Dimensions : 80 x 80 x 38 mm
- Fan Bearing : Dual Ball Bearing
- LED Lighting : -
- Fan Connector(s) : 4-pin
- Weight : 146 g
- Fan Controller : PWM
- Rotation Speed : 500 - 7000 RPM
- Colour : Black
- Package Type : Retail
- Type : 80mm Case Fan
- Package Contents : 4 x S8038-7K 16 x Mounting Screws 4 x Impeller Sticker
