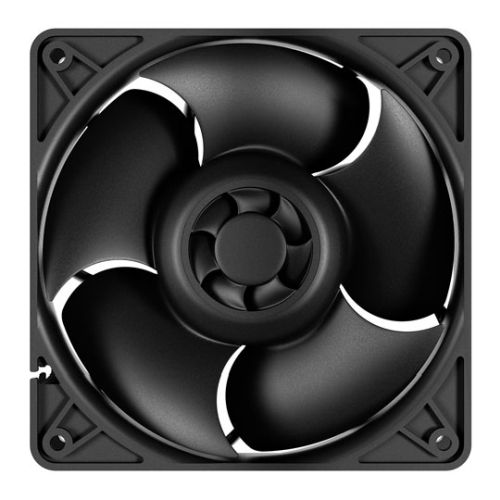

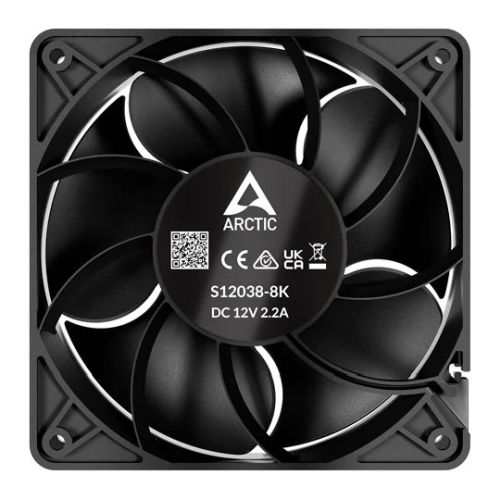

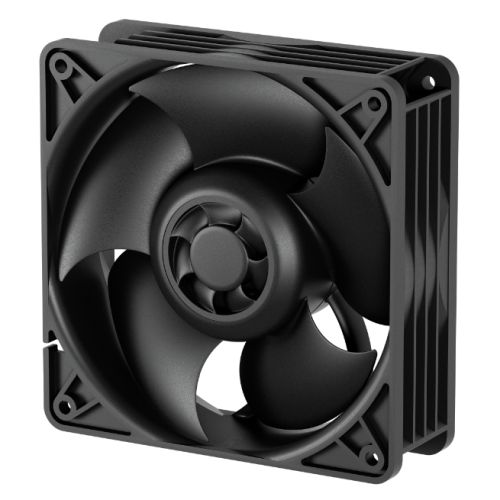

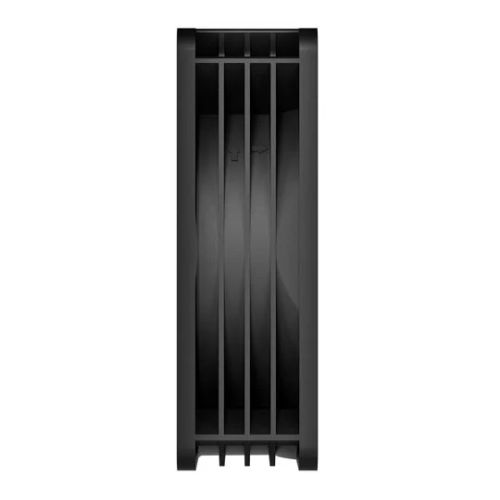

ARCTIC S12038-8K 120mm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM

2 sold in last 8 hours
My Store
SF120-ARCS12038-8K-43775988
Out of stock
£75.83 £40.99
ARCTIC S12038-8K 120mm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM S12038-8K - 120 mm 8k rpm Server Fan Speed: 800–8000 rpm, PWM controlled Static Pressure: 37 mmH2O Airflow: 220 cfm Bearing: Dual Ball Bearing with Brass Housing Cable Length: 300 mm, Black Connector: 2510 4-Pin...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

ARCTIC S12038-8K 120mm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM

S12038-8K - 120 mm 8k rpm Server Fan

  • Speed: 800–8000 rpm, PWM controlled
  • Static Pressure: 37 mmH2O
  • Airflow: 220 cfm
  • Bearing: Dual Ball Bearing with Brass Housing
  • Cable Length: 300 mm, Black
  • Connector: 2510 4-Pin Fan Connector
  • Current | Voltage: 2.2 A | 12.0 V DC
  • Start-Up Voltage: 6.5 V DC
  • Current (Maximum): 3.2 A
  • Motor Protection Features: Reverse Polarity Protection, Over Voltage Protection, Over Current Protection





New Standard in Energy Efficiency
For the same performance, the S12038 consumes 22 % less than the next best competitor, improving the energy efficiency of your server. The reduction of the power consumption is the result of months of motor optimization by ARCTIC engineers with the aim to increase the IT equipment efficiency.

Test Setup
Fan on Freezer 4U heat sink on 500 W heating element; fan speed set so that the temperature of the heating element is constantly 20 °C above the ambient temperature.

Wide Range of Speeds (800 to 8000 rpm)

The S12038-8K features a wide range of speeds from 800 to 8000 rpm, which can be controlled either via PWM or voltage regulation. This wide range enables precise adjustment of the fan to the specific requirements of the server, ensuring efficient cooling performance under different operating conditions. The fan is equipped with a standard 4-pin connector, which also allows connection to 2-pin or 3-pin headers. The 30 cm long cable offers additional flexibility in fan placement.



Active Cooling for Extended Motor Lifespan
A 10 °C lower motor temperature roughly doubles the service life. The motor of the S12038-8K is not only particularly efficient, but is also actively cooled by an additional impeller in the fan hub.

To ensure a long service life in particularly dusty environments, a sticker to cover the fan hub impeller is included in the packaging.



Ideal for Server Environments
Especially in server environments, fans with a high pressure are required to enable sufficient air circulation in the often tightly packed enclosures. The S12038-8K fits into server cases from 3U and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation.



Ideal for Industrial Application
In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimised downtimes.



High Airflow and Static Pressure
Heat sinks and radiators benefit from fans with high static pressure. The S12038-8K has a static pressure of 37 mmH2O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 370 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.

Designed for Continuous Operation

The impeller of the S12038-8K is held by two high-quality Japanese ball bearings in a sturdy brass housing. This design increases the stability, strength and perpendicularity of the fan and minimises sensitivity to influences such as heat and dust. In addition, the brass housing helps to reduce wear on high-speed fans.



Quality You Can Rely On
70 °C ambient temperature, high dust exposure and changing humidity - we carry out our long-term tests under these extreme conditions to ensure the service life of our products. Some of these test fans have been running for over 15 years.

This not only allows us to continuously improve our products, but the excellent test results also confirm our high manufacturing quality. We are happy to pass this assurance on to our customers and offer a 6-year manufacturer's warranty.






Specifications:
- #Hide#Colour : Black
- #Hide#Max RPM : 8000 RPM
- Air Flow : 220 CFM
- Warranty : 6 Years
- #Hide#LED Lighting : No
- Dimensions : 120 x 120 x 38 mm
- Fan Bearing : Dual Ball Bearing
- LED Lighting : -
- Fan Connector(s) : 4-pin
- Weight : 328 g
- Fan Controller : PWM
- Rotation Speed : 800 - 8000 RPM Controlled either via PWM or voltage regulation
- Colour : Black
- Package Type : Retail
- Type : 120mm Server Fan
- Package Contents : S12038-8K 4 x Mounting Screws 1 x Impeller Sticker
- Additional Features : Designed for Continuous Operation A 10°C lower motor temp roughly doubles the service life Also actively cooled by additional impeller in the fan hub Sticker to cover the fan hub impeller is included Fits into server cases from 3U Upgrade/replacement for a CPU & radiator fan or for system ventilation Ideal for Industrial Application Static pressure: 37 mmH2O 70°C ambient temperature, high dust exposure and changing humidity Cable Length: 300 mm
- Package Weight : 0.3670 kg
- Power : Current, Voltage: 2.2 A, 12.0 V DC Start-Up Voltage: 6.5 V DC Current (Maximum): 3.2 A
